To Next Page

To Previous Page

ENTER/EXIT PROGRAMMING MODE Code 128 Enable/Disable

Product Reference Guide

121

CODE 128

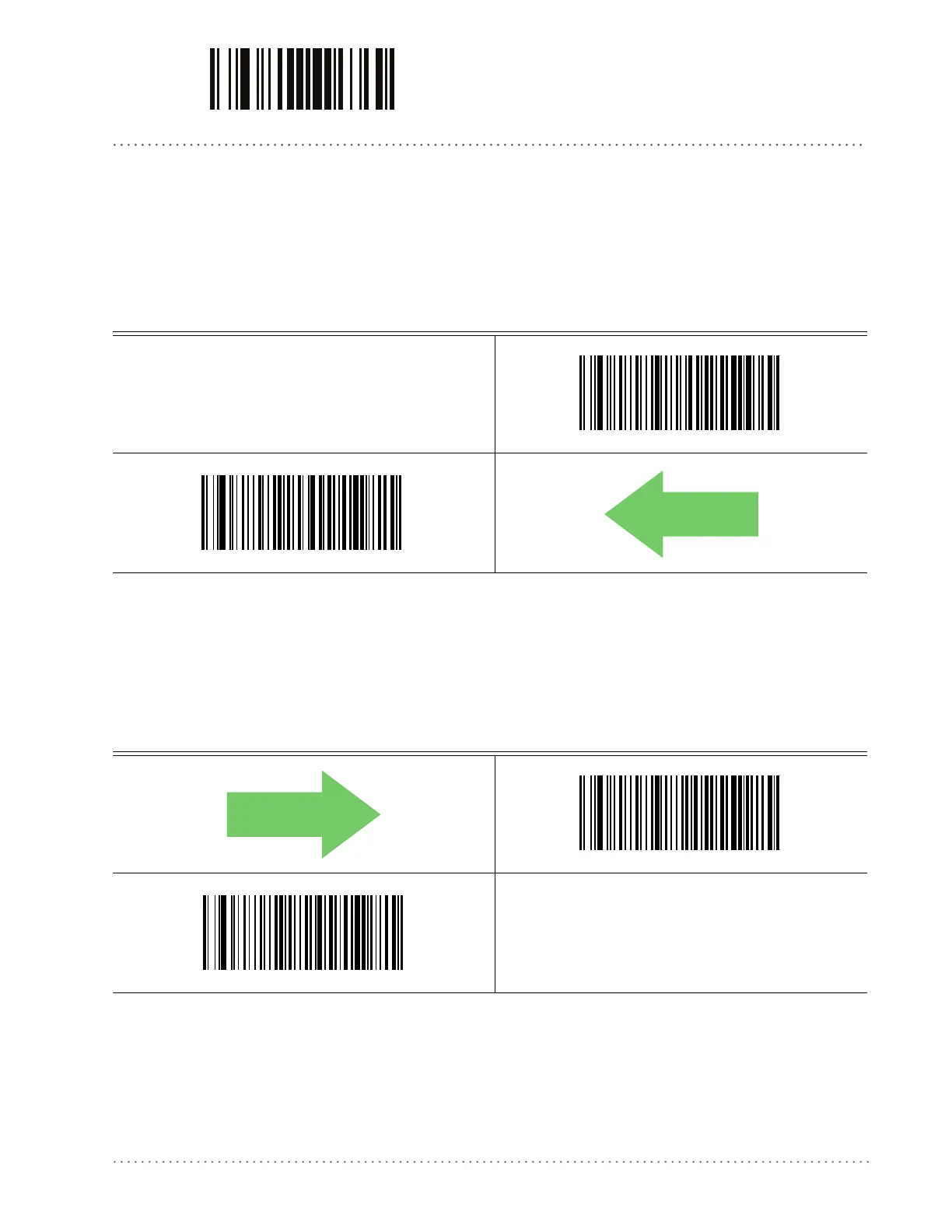

The following options apply to the Code 128 symbology.

Code 128 Enable/Disable

When disabled, the reader will not read Code 128 barcodes.

Code 128 = Disable

Code 128 = Enable

DEFAULT

Expand Code 128 to Code 39

This feature enables/disables expansion of Code 128 labels to Code 39 labels.

DEFAULT

Code 128 to Code 39 = Don’t Expand

Code 128 to Code 39 = Expand

Default Chapter3
