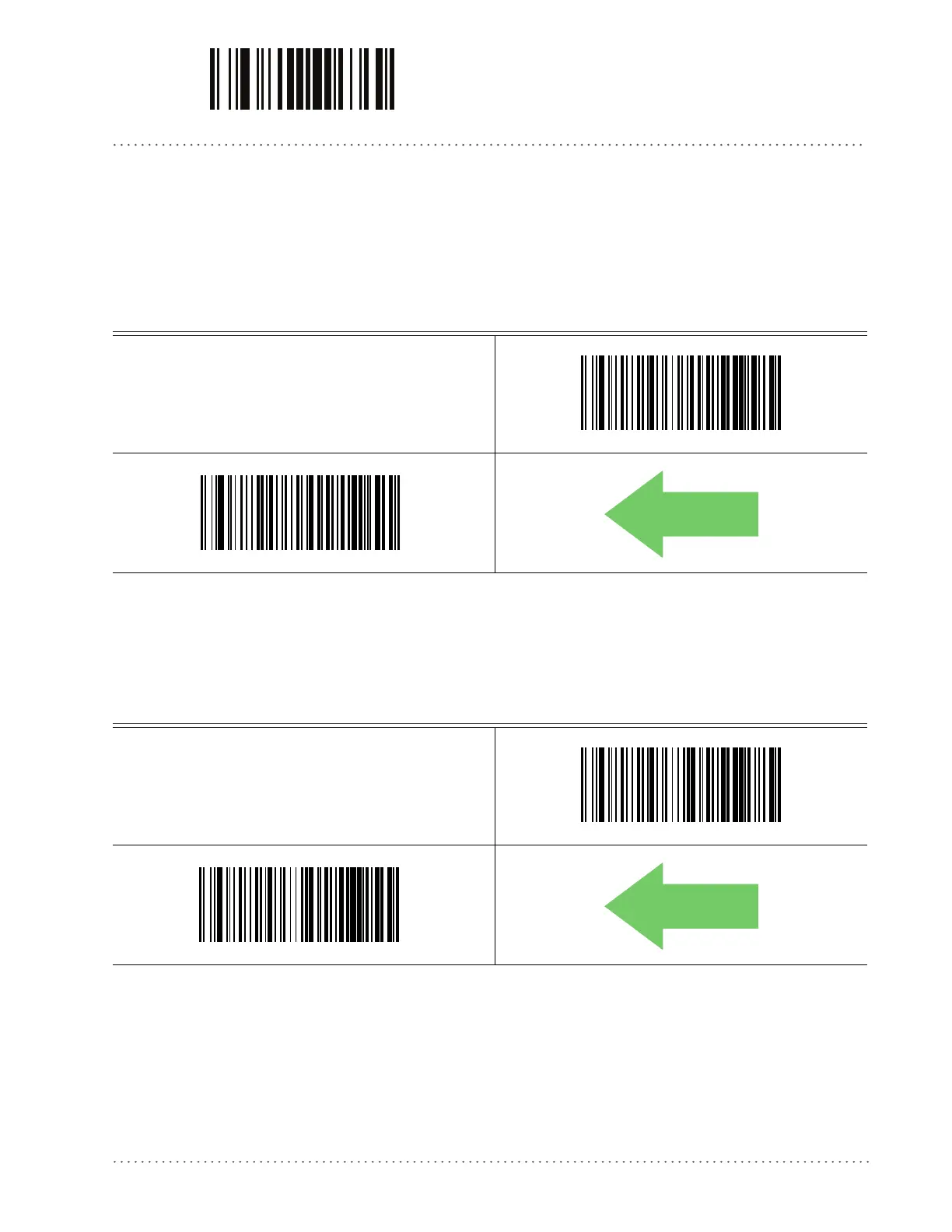

ENTER/EXIT PROGRAMMING MODE EAN 13 Enable/Disable

Product Reference Guide

EAN 13 (JAN 13)

The following options apply to the EAN 13 (Jan 13) symbology.

EAN 13 Enable/Disable

When disabled, the reader will not read EAN 13/JAN 13 barcodes.

EAN 13 = Disable

EAN 13 = Enable

DEFAULT

EAN 13 Check Character Transmission

Enable this option to transmit the check character along with EAN 13 barcode data.

EAN 13 Check Character Transmission = Don’t Send

EAN 13 Check Character Transmission = Send

DEFAULT
