Code 128 ENTER/EXIT PROGRAMMING MODE
128 Gryphon™ I GFS4170/GFS4150-9

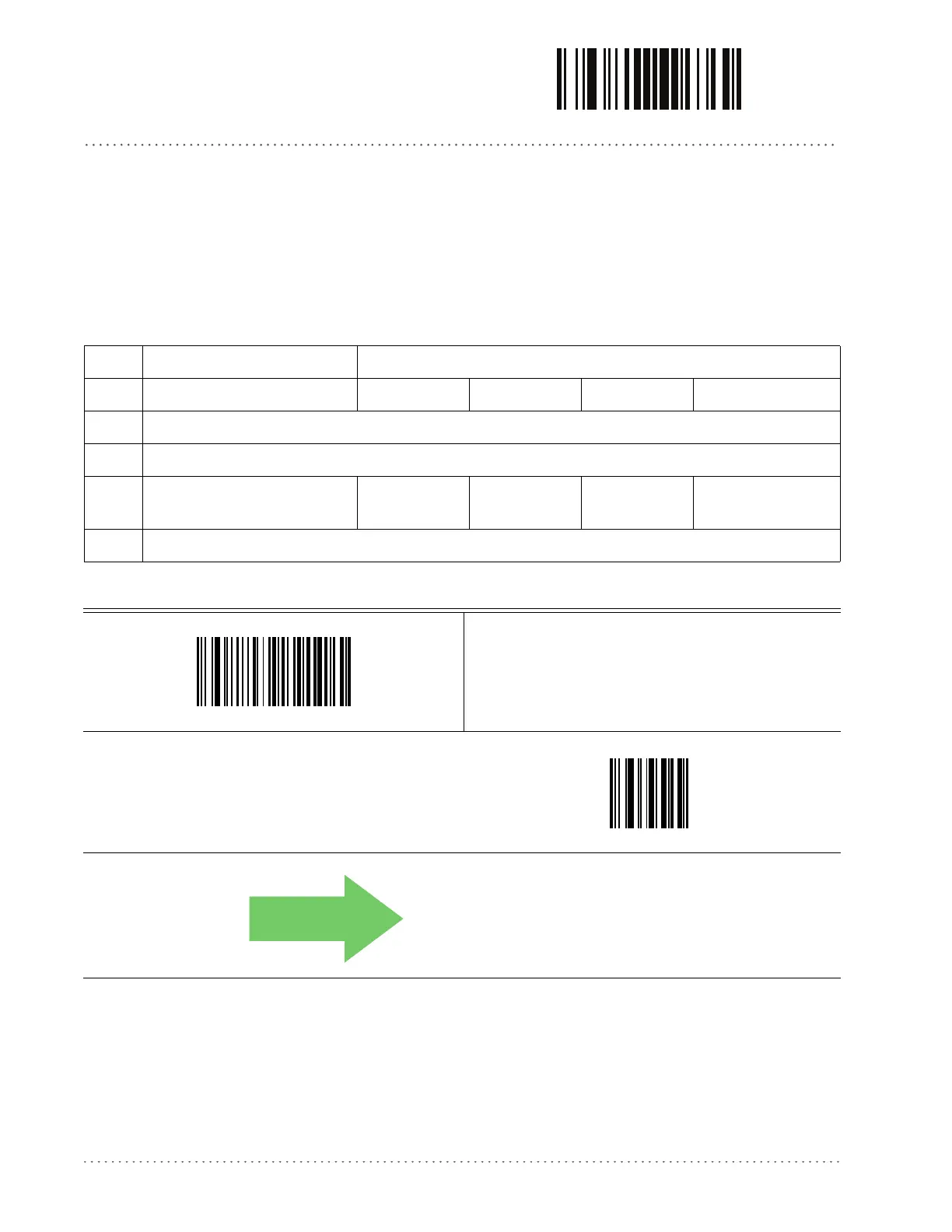

Code 128 Set Length 1
Specifies one of the barcode lengths for Code 128 Length Control. Length 1 is the minimum label
length if in Variable Length Mode, or the first fixed length if in Fixed Length Mode. Length
includes the barcode’s data characters only. The leng
th can be set from 1 to 80 characters.
Table 4 provides some examples for setting Length 1. See page 256 for detailed instructions on
setting this feature.
Table 4. Code 128 Length 1 Setting Examples
STEP ACTION EXAMPLES
1 Desired Setting
01 Character 07 Characters 15 Characters 80 Characters
2 Scan ENTER/EXIT PROGRAMMING MODE
3 Scan SELECT CODE 128 LENGTH 1 SETTING
4
Scan Two Characters From
Appendix D, Keypad
‘0’ and ‘1’ ‘0’ and ‘7’ ‘1’ and ‘5’ ‘8’ AND ‘0’
5 Scan ENTER/EXIT PROGRAMMING MODE
Select Code 128 Set Length 1 Setting
Make a mistake? Scan the CANCEL barcode to abort and not
sav
e the entry string. You can then start again at the begin-
ning.
CANCEL
DEFAULT
01 = Length 1 is 1 Character
