Gryphon™ I GD44XX/GBT4400/GM440X

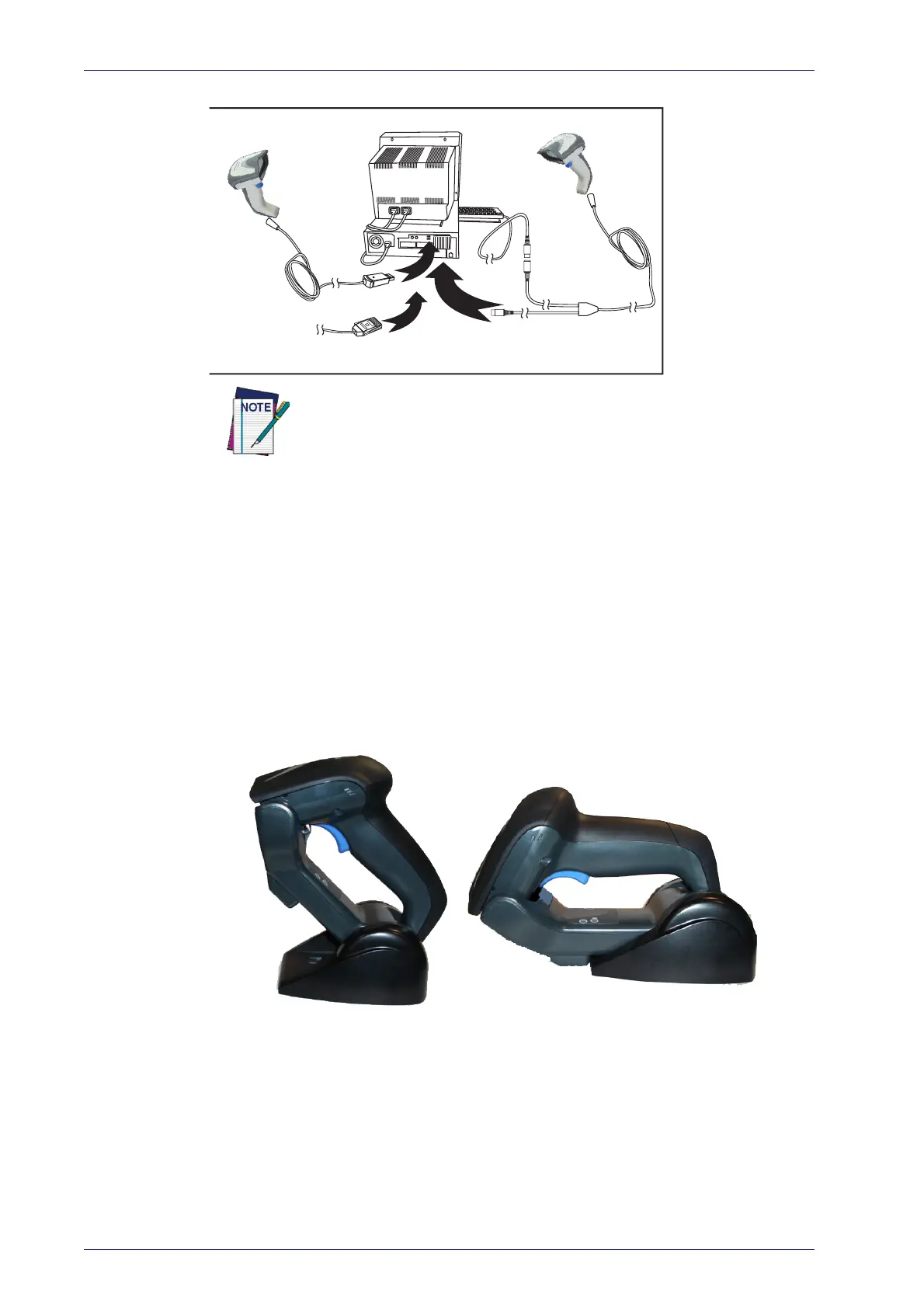

Figure 6. Other Interface Connections
W
a
n
d
I
B
M
K
e
y
b
o
a
r
d
W
e
d
g
e
or...
or...
Specific cables are required for connection to different hosts. The con-
nectors illustrated above are examples only. Actual connectors may
va
ry from those illustrated, but the steps to connect the reader remain
the same.
RF Models
The power supply connects directly to the base (not on the cable's jack) for
all configurations. For all interfaces (except RS-232) a power supply is rec-
ommended but not necessary, because the
base can be powered from the
Host. When the base is powered from the Host, select a slow charge rate.
Configuring the Base Station
The base charger/station may be configured in desk application to hold the
reader in two different positions, either a horizontal or standing position, in
order to provide the most comfortable use depending on needs.
