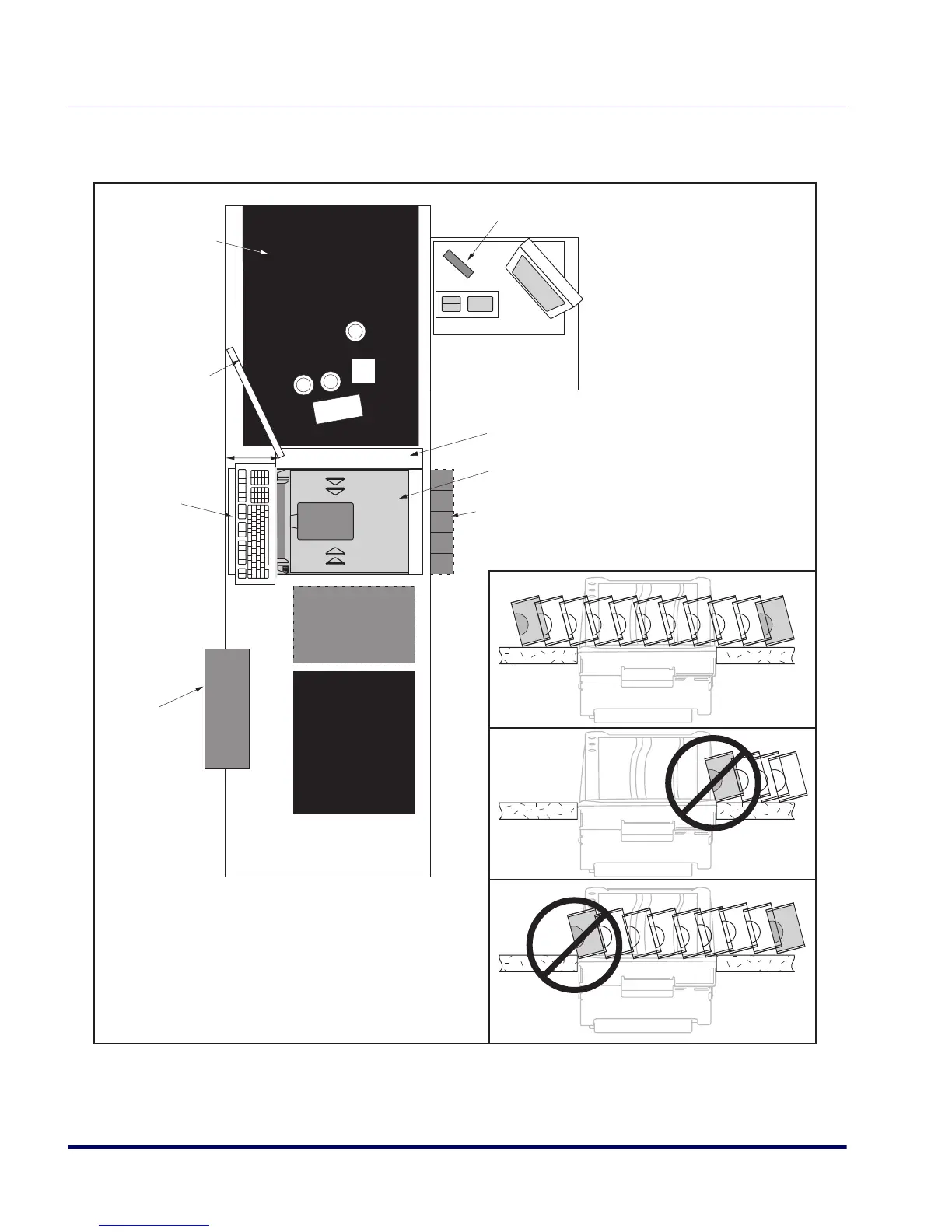

Figure 2-6. Typical Checkstand Design & Cutout Location
Optional
Item Diverter
Conveyor
Deadplate
Scanner
Bagging
Area
Take-Away
Belt
Keyboard
Remote Display
POS Terminal
& Printer
Check
Writing
Stand
(Optional)
Scan & Bag
Well
(Optional)
6.3"
(16.0cm)
Cash Drawer
(Below Scanner)
Flush — Correct
Above Flush — Incorrect
Below Flush — Incorrect
