Datalogic Magellan 9500

Counter Cutout
Product Reference Guide 2-15
Refer to Figure 2-7 for dimensional information. Figure 2-8 and
Figure 2-9 provide counter cutout details for model 850x/950x inter-
changeability and minimum required counter cutout (for new 950x instal-
lations) respectively.

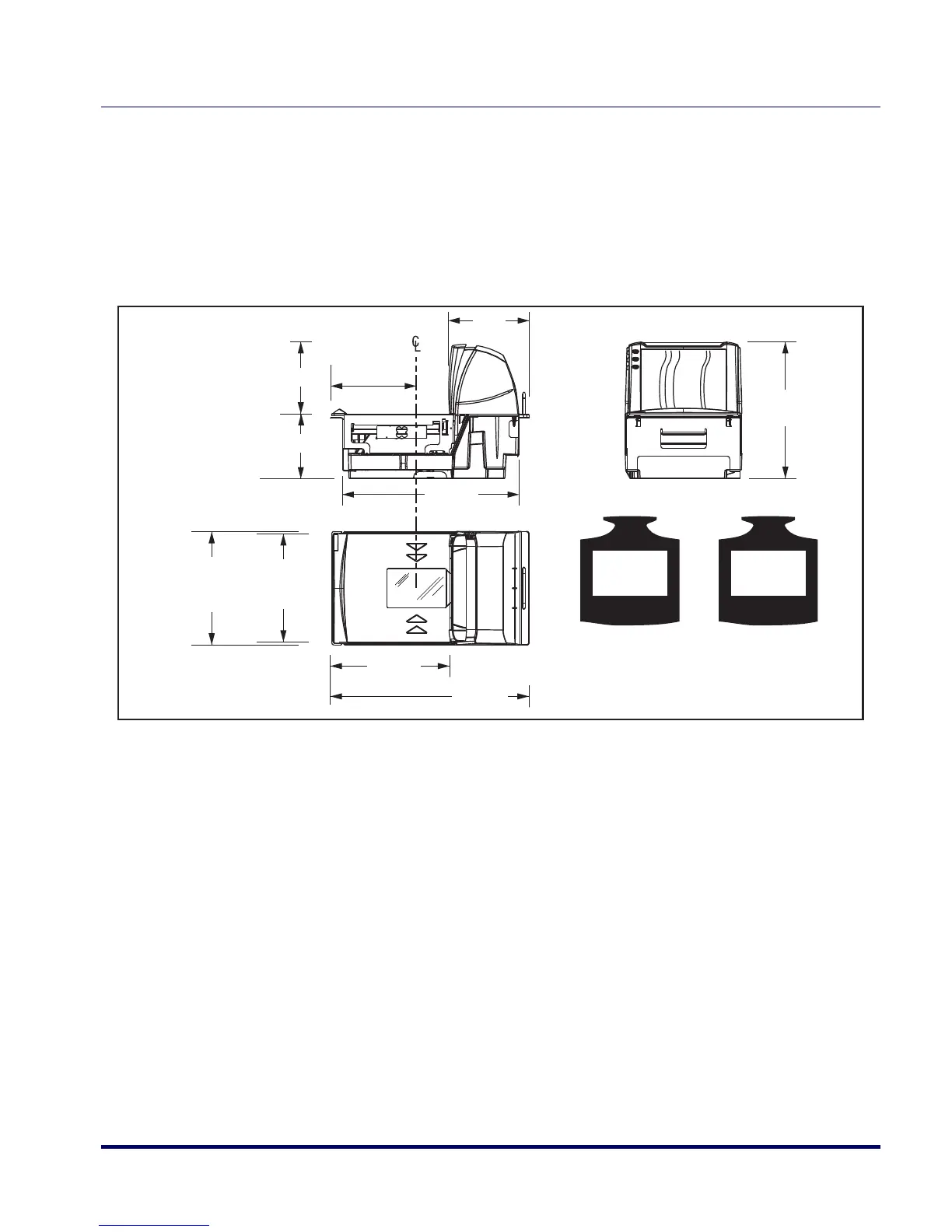

Figure 2-7. Dimensions
28.9 lb.
(13.1kg)
Scanner/Scale
Weight
22.2 lb.
(10.1kg)
Scanner
Weight (w/o scale)
11.5"
(29.21cm)
SCANNER
11.1"
(28.19cm)
PLATTER
11.9"
(30.23cm)
20.0"
(50.8cm)
17.76"
(45.11cm)
6.5" (16.51cm)
7.0" (17.78cm)
13.5"
(34.29cm)
8.6"
(21.84cm)
Window
8.0"
(20.32cm)
