2-16 Magellan
®
9500

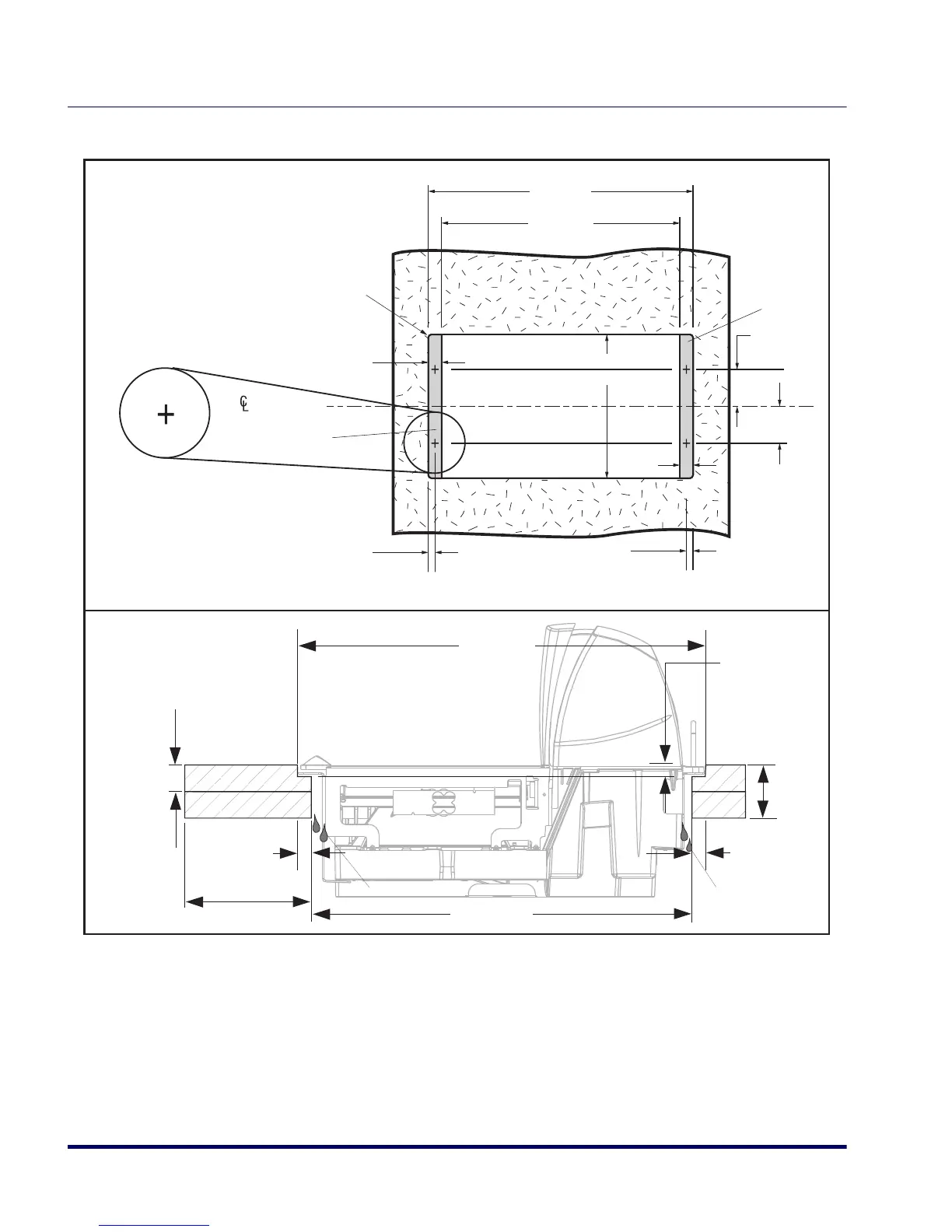

Figure 2-8. Cutout Dimensions: Recommended for 8500/9500 Interchangeability
20.125"
(51.12cm)
0.75"
(1.9cm)
18.625"
(47.30cm)
Rail
Rail
(Center Line)
11.625"
(29.53cm)
0.75"
(1.9cm)
Max. Radius = 0.25"
(0.64cm) 4x
20.125" ±0.06"
(51.2 ±0.15 cm)
18.625" ± .060"
(47.3 ±0.15 cm)
0.37" ± .03"
(0.94 ± 0.07 cm)
0.37" ± .030"
(0.94 ± 0.07 cm)
If leveling feet are needed,
use the placement shown here,
represented with plus signs (+).
3.0" ± .03"
(7.62 ± .76mm)
3.0" ± .03"
(7.62 ± .76mm)
0.75"
(1.9 cm)
1.5"
(3.8 cm)
0.75"± .060"
(1.9 ±0.15 cm)
0.75"± .060"
(1.9 ±0.15 cm)
4.0"
(10.2 cm)
0.375" ± 0.03"
(.95 ±.08 cm)
Liquid
Drainage
Liquid
Drainage
