Datalogic Magellan 9500

Counter Cutout
Product Reference Guide 2-17

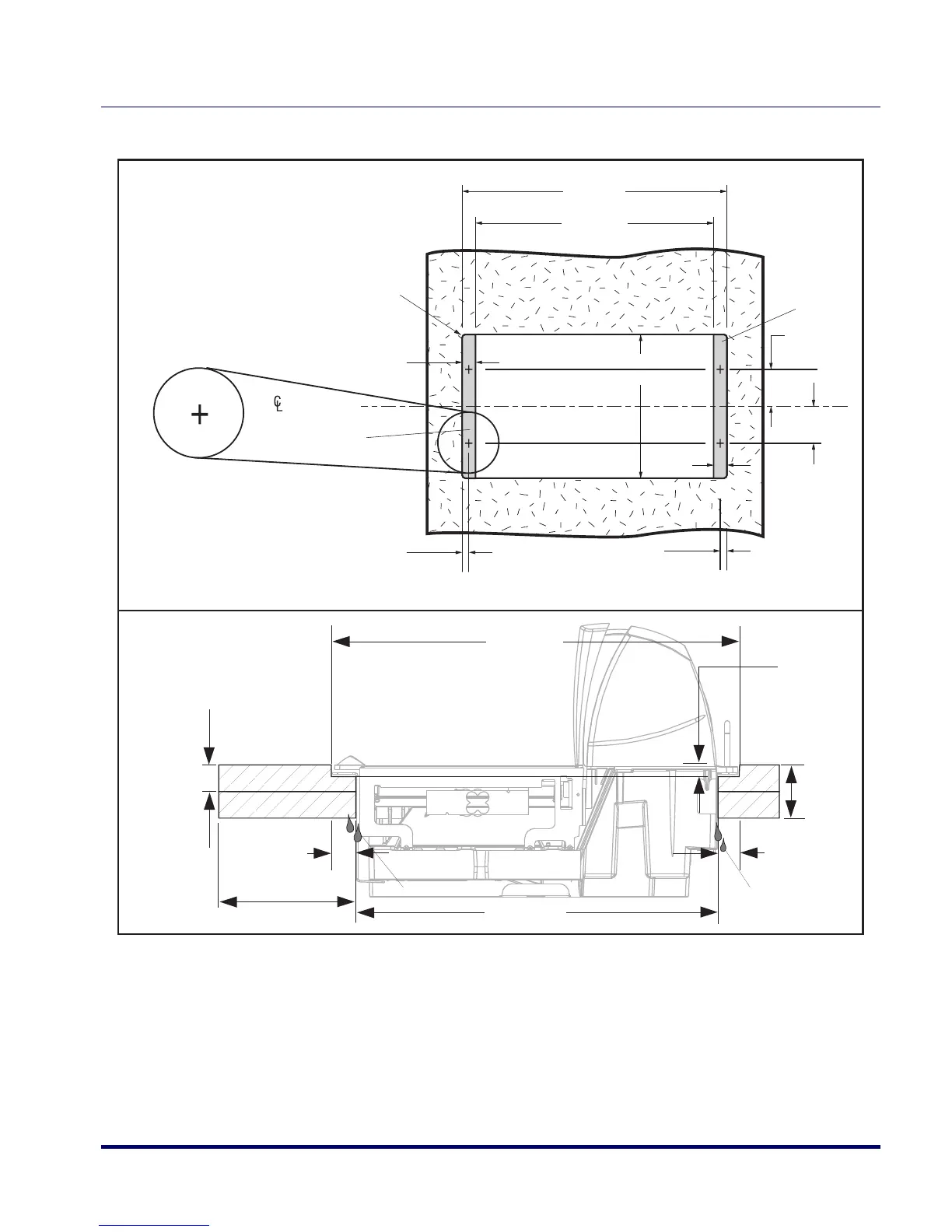

Figure 2-9. Cutout Dimensions: Minimum Required Counter Cutout
20.09 ± 0.06"
(51.03 ± 0.15cm)
1.22"
(3.1cm)
17.88 ± 0.06"
(45.26 ± 0.015cm)
Rail
Rail
(Center Line)
11.562"
(29.367cm)
1.0"
(2.54cm)
Max. Radius = 0.25"
(0.64cm) 4x
20.09" ± 0.06"
(51.03 ± 0.15cm)
17.88 ± 0.06"
(45.26 ± 0.015cm)
0.61" ± .03"
(1.55 ±0.07 cm)
.50" ± .030"
(1.27 ±0.07 cm)
If leveling feet are needed,
use the placement shown here,
represented with plus signs (+).
3.0" ± .03"
(7.62 ± .76mm)
3.0" ± .03"
(7.62 ± .76mm)
0.75"
(1.9 cm)
1.5"
(3.8 cm)
1.18"± .060"
(3.00 ± 0.15 cm)
1.00"± .060"
(2.54 ± 0.15 cm)
4.0"
(10.2 cm)
0.375" ± 0.03"
(.95 ±.08 cm)
Liquid
Drainage
Liquid
Drainage
