Swapping Position: EAS Single-Antenna ONLY
The EAS Antenna must be located in the position needed for your instal-
lation. Reference
Figure 2-18 and. Locate it as described below:
1. Remove the platter (see
Figure 2-22).
2. If the unit is a model containing a scale, and the scale assembly is
determined to be in the position the EAS Single-Antenna should be
with regard to product flow, proceed to the next step. Otherwise,
skip to step
7.
3. Remove the screws that fasten the Load Cell/Spider Assembly to the
scanner (see
Figure 2-18) and carefully lift the entire assembly from
the scanner cavity. Retain the screws for re-installation.

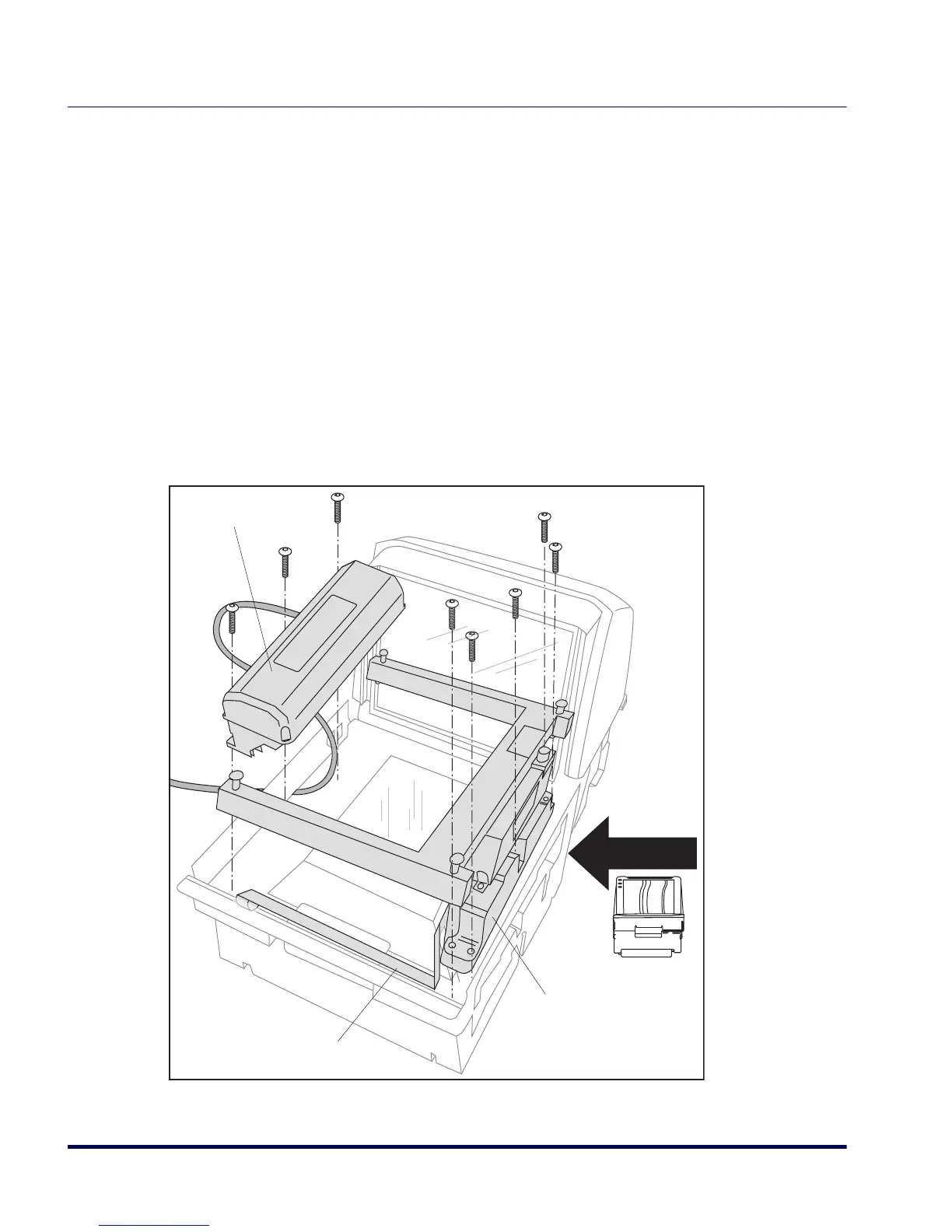

Figure 2-18. Locating the EAS Single-Antenna (Right-to-Left)
EAS Antenna
Load Cell/Spider
Assembly
Load Cell Harness
Product Flow
