Setup
8 PowerScan™ PD9530/PBT9500/PM9500

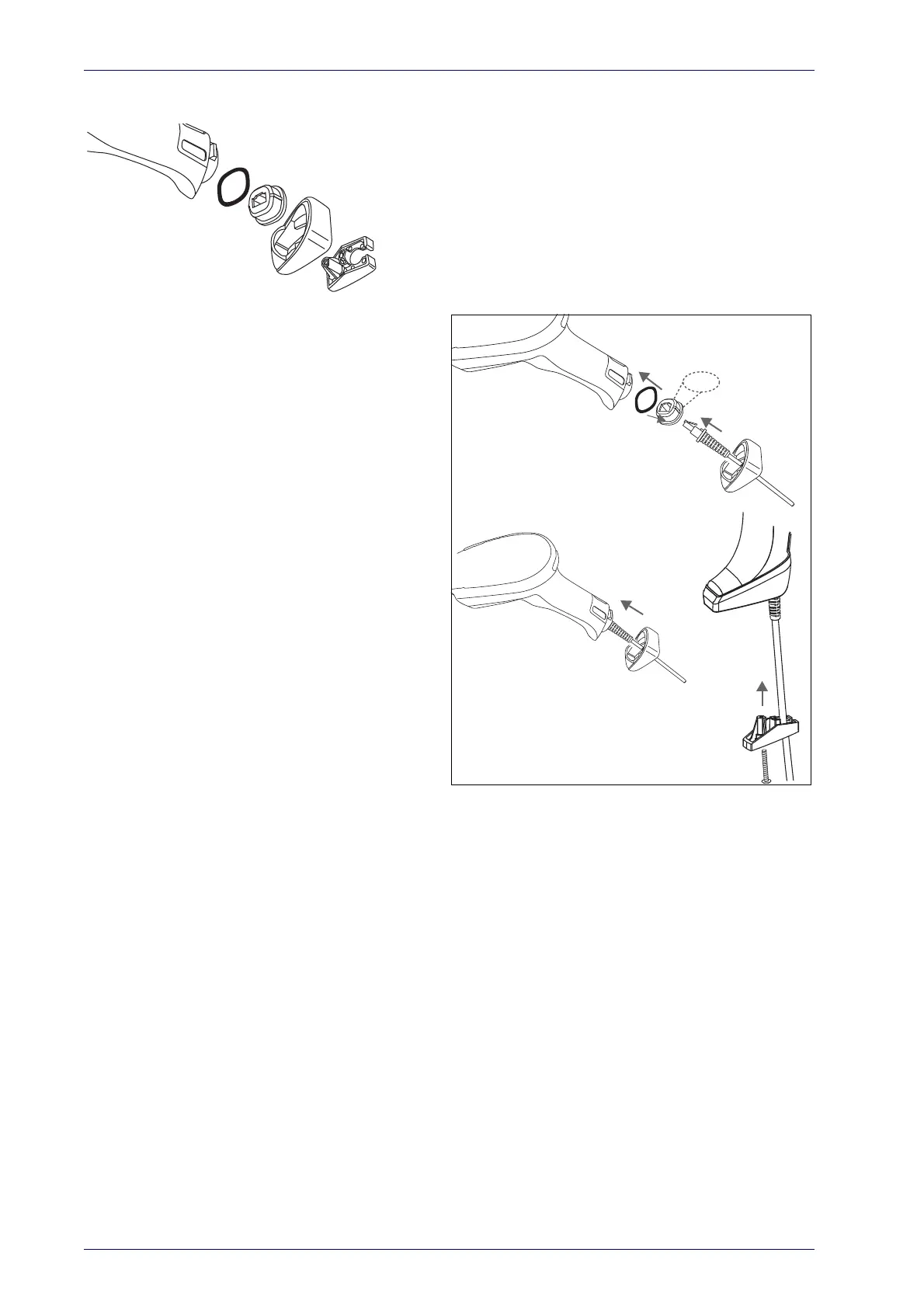

Connecting the Cable (Corded versions)
A
B
C
D
A. Rubber gasket
B. Cable Holder
C. Cover
D. Connector Holder
1. Slip the cable through the Cover.
2. Push the Rubber Gasket onto the Cable
Holder
.
3. Push the Cable Holder and gasket into
the
han
dle. Ensure that the “Front”
marking on the Cable Holder is facing
out, with the arrow pointing towards the
front of the scanner.
4. Insert the end of the cable into the
socke
t of the Cable Holder.
5. Push the Cover along the cable towards
t
h
e reader, and hook it over the yellow
“tooth” on the back of the handle.
6. Insert the cable through the Connector
Holder
, and push it up into the Cover.
7. Insert and tighten the sc
re
w to affix the
cable assembly to the reader handle.
FRONT>>
1
2
3
6
4
5
7

Datalogic PowerScan PBT9500 Specifications

General

Type	Handheld bar code reader
Wavelength	680 nm
Sensor type	Laser
Scanner type	1D/2D
Tilt reading angle	0 - 360 °
Pitch reading angle	0 - 40 °
Light levels (direct sunlight)	0 - 100000 lx
Linear (1D) barcodes supported	-
2D (matrix & stacked) barcodes supported	Aztec Code, Data Matrix, MaxiCode, Micro QR Code, QR Code
Battery life	10 h
Charging time	4 h
Battery capacity	2150 mAh
Power source type	Battery
Number of reads per charge	30000
Number of batteries supported	1
Wireless range	100 m
Operating frequency	2400 - 2480 MHz
Standard interfaces	USB, RS-232
Connectivity technology	Wired & Wireless
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	-20 - 50 °C
Operating relative humidity (H-H)	0 - 95 %
Buzzer	Yes
Certification	IEC 62471 Class 1 LED
Product color	Black, Yellow
Protection features	Shock resistant, Water resistant
International Protection (IP) code	IP65
Cables included	RS-232

Weight and Dimensions

Depth	74 mm
Width	110 mm
Height	212 mm
Weight	380 g
