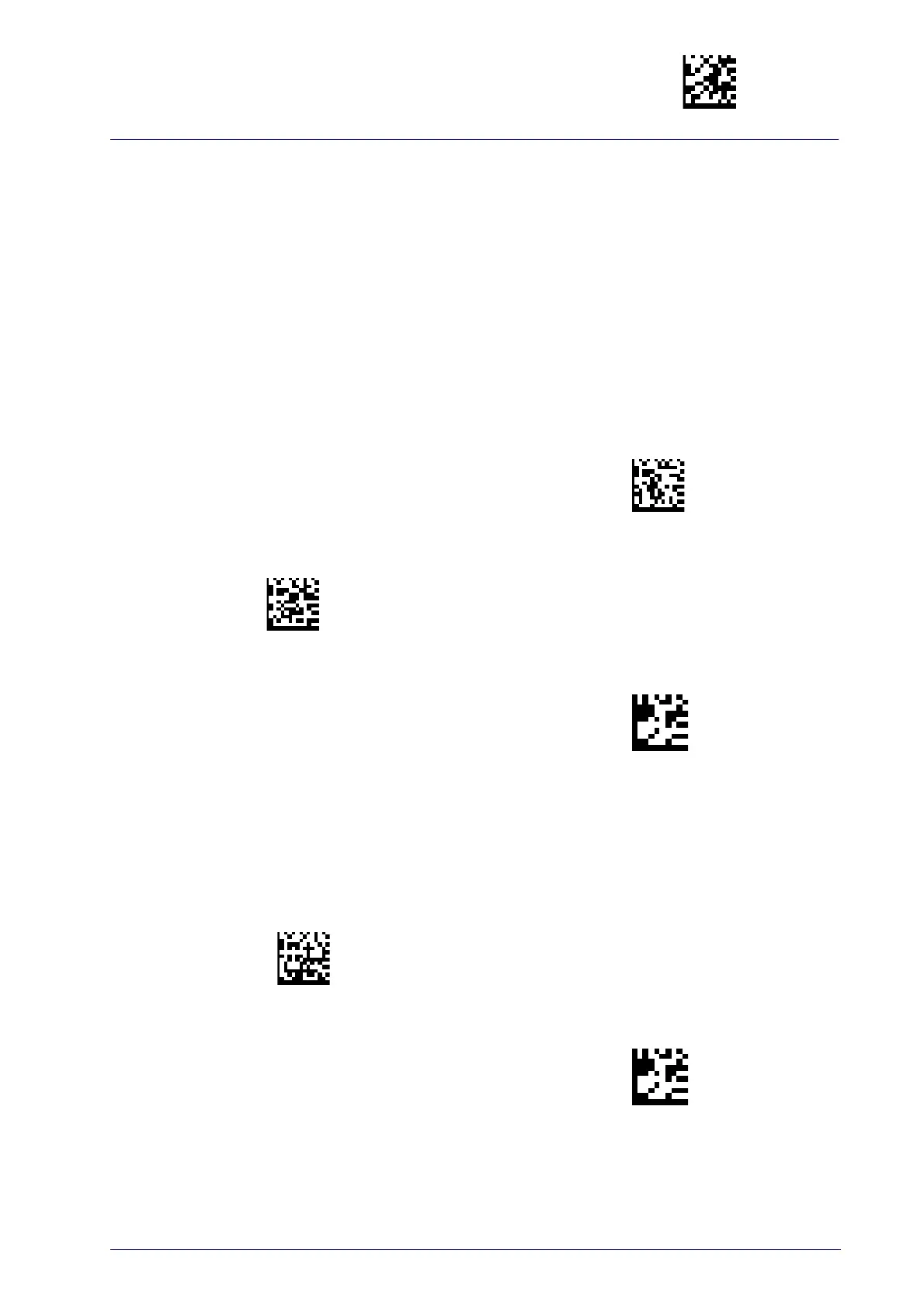

Enter/Exit Programming Mode
Product Reference Guide
241
RS-485 Master Header/Terminator ( Prefix/Suffix)
Specifies the Master Cradle header or terminator characters to be added to a
label sent to Host. The characters may be added as a prefix (in a position
before the bar code data, also called a header) and/or as a suffix (in a posi-
tion following the bar code dat
a
, also called a terminator).
To configure this feature, scan the ENTER/EXIT PROGRAMMING MODE bar
co
de above to place the unit in Programming Mode, then the “Set Master
Cradle Prefix” or “Set Master Cradle Suffix” bar code followed by the digits
(in hex) from the Alphanumeric characters in
Appendix D, Keypad repre-
senting your desired character(s).
If less than the expected string of 8 char-
acters are selected, scan the ENTER/EXIT bar code
to terminate the string.
Exit programming mode by scanning the ENTER/EXIT bar code again.
$CR4A0
Set Master Cradle Prefix
$CR4A1
Set Master Cradle Suffix
Make a mistake? Scan the CANCEL bar code to abort
and not save the entry string. You can then start
again at the beginning.
~
CANCEL
RS-485 Cradle Address
Specifies the Address for the Cradle in the RS-485 network.
$CS1AD
Set Cradle Address
To configure this feature, scan the ENTER/EXIT PROGRAM-
MING MODE bar code above, then th
e bar code at left fol-
lowed by the digits from the Alphanumeric characters in
Appendix D, Keypad
representing your desired char-
acter(s). End by scanning the ENTER/EXIT bar code again.
Make a mistake? Scan the CANCEL bar code to abort
and not save the entry string. You can then start
again at the beginning.
~
CANCEL
.

Table of Contents

Other manuals for Datalogic PowerScan PBT9500

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Datalogic PowerScan PBT9500 and is the answer not in the manual?

Datalogic PowerScan PBT9500 Specifications

General IconGeneral
TypeHandheld bar code reader
Wavelength680 nm
Sensor typeLaser
Scanner type1D/2D
Tilt reading angle0 - 360 °
Pitch reading angle0 - 40 °
Light levels (direct sunlight)0 - 100000 lx
Linear (1D) barcodes supported-
2D (matrix & stacked) barcodes supportedAztec Code, Data Matrix, MaxiCode, Micro QR Code, QR Code
Battery life10 h
Charging time4 h
Battery capacity2150 mAh
Power source typeBattery
Number of reads per charge30000
Number of batteries supported1
Wireless range100 m
Operating frequency2400 - 2480 MHz
Standard interfacesUSB, RS-232
Connectivity technologyWired & Wireless
Storage temperature (T-T)-40 - 70 °C
Operating temperature (T-T)-20 - 50 °C
Operating relative humidity (H-H)0 - 95 %
BuzzerYes
CertificationIEC 62471 Class 1 LED
Product colorBlack, Yellow
Protection featuresShock resistant, Water resistant
International Protection (IP) codeIP65
Cables includedRS-232
Weight and Dimensions IconWeight and Dimensions
Depth74 mm
Width110 mm
Height212 mm
Weight380 g
