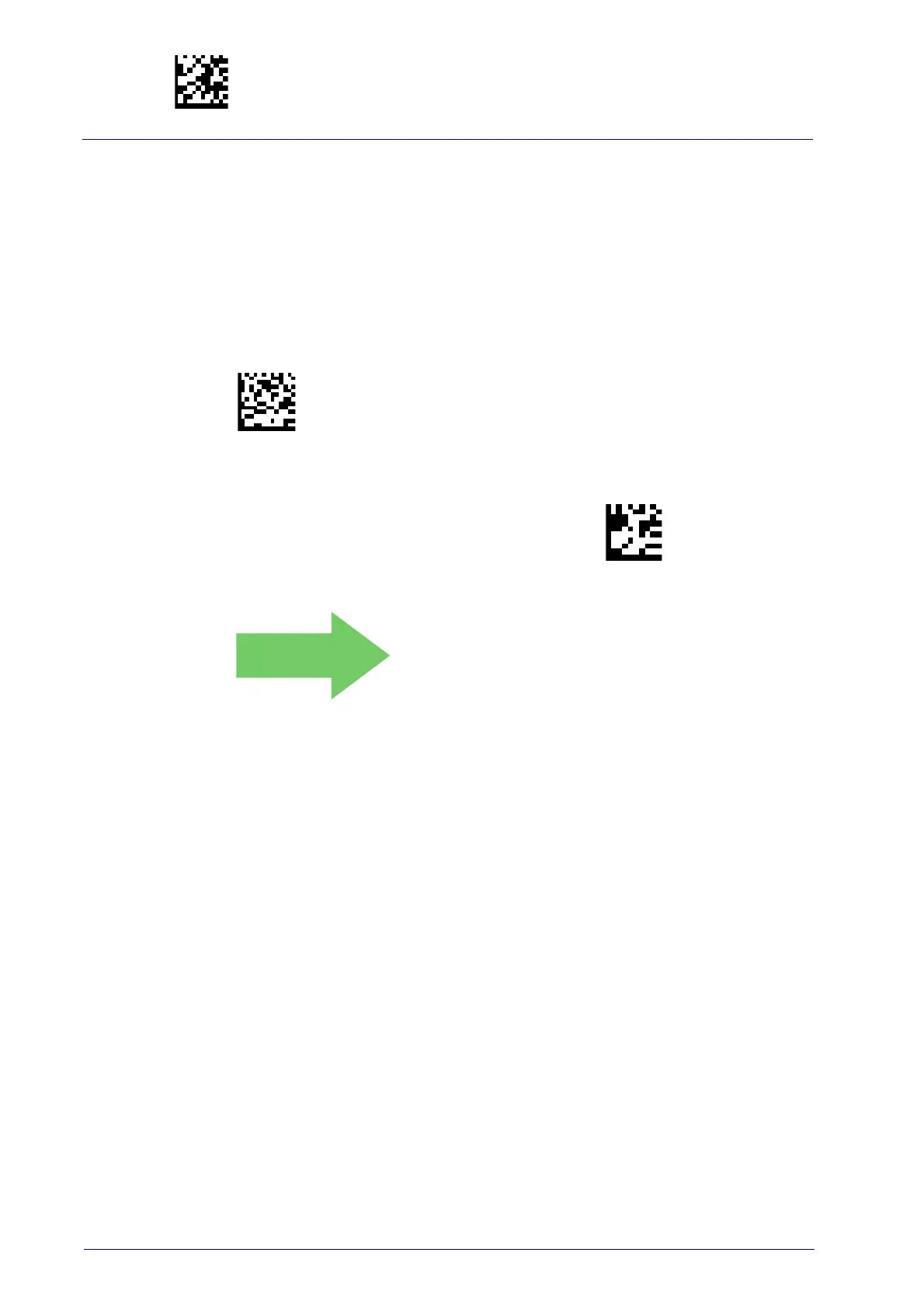

Enter/Exit Programming Mode 2D Global Features
194
PowerScan™ PD9530/PBT9500/PM9500
Micro PDF417 Set Length 2
This feature specifies one of the bar code lengths for Micro PDF417 Length
Control
. Length 2 is the maximum label length if in Variable Length Mode,
or the second fixed length if in Fixed Length includes the bar code’s
data
characters only. Characters can be set from 0001 to 0366 characters (pad
with zeroes) in increments of 01. Any value greater than 0366 will be con-
sidered to be 0366.
See
page 268 for detailed instructions on setting this feature.
$CMIL2
Select Micro PDF417 Length 2 Setting
To configure this feature, scan the ENTER/EXIT
PROGRAMMING MODE bar code above, then the bar
code at left followed by the digits from the Alphanu-
meric characters in
Appendix D, Keypad
repre-
senting your desired character(s). End by scanning
the ENTER/EXIT bar code again.
M
ake a mistake? Scan the CANCEL
bar code to
abort
and not save the entry string. You can then start
again at the beginning.
~
CANCEL
DEFAULT
Length 2 is 0366 Characters

Table of Contents

Other manuals for Datalogic PowerScan PBT9500

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Datalogic PowerScan PBT9500 and is the answer not in the manual?

Datalogic PowerScan PBT9500 Specifications

General IconGeneral
TypeHandheld bar code reader
Wavelength680 nm
Sensor typeLaser
Scanner type1D/2D
Tilt reading angle0 - 360 °
Pitch reading angle0 - 40 °
Light levels (direct sunlight)0 - 100000 lx
Linear (1D) barcodes supported-
2D (matrix & stacked) barcodes supportedAztec Code, Data Matrix, MaxiCode, Micro QR Code, QR Code
Battery life10 h
Charging time4 h
Battery capacity2150 mAh
Power source typeBattery
Number of reads per charge30000
Number of batteries supported1
Wireless range100 m
Operating frequency2400 - 2480 MHz
Standard interfacesUSB, RS-232
Connectivity technologyWired & Wireless
Storage temperature (T-T)-40 - 70 °C
Operating temperature (T-T)-20 - 50 °C
Operating relative humidity (H-H)0 - 95 %
BuzzerYes
CertificationIEC 62471 Class 1 LED
Product colorBlack, Yellow
Protection featuresShock resistant, Water resistant
International Protection (IP) codeIP65
Cables includedRS-232
Weight and Dimensions IconWeight and Dimensions
Depth74 mm
Width110 mm
Height212 mm
Weight380 g
