Technical Specifications
302 PowerScan™ PD9530/PBT9500/PM9500
Standard Cable Pinouts
The data below provides standard pinout information for the interface cable.

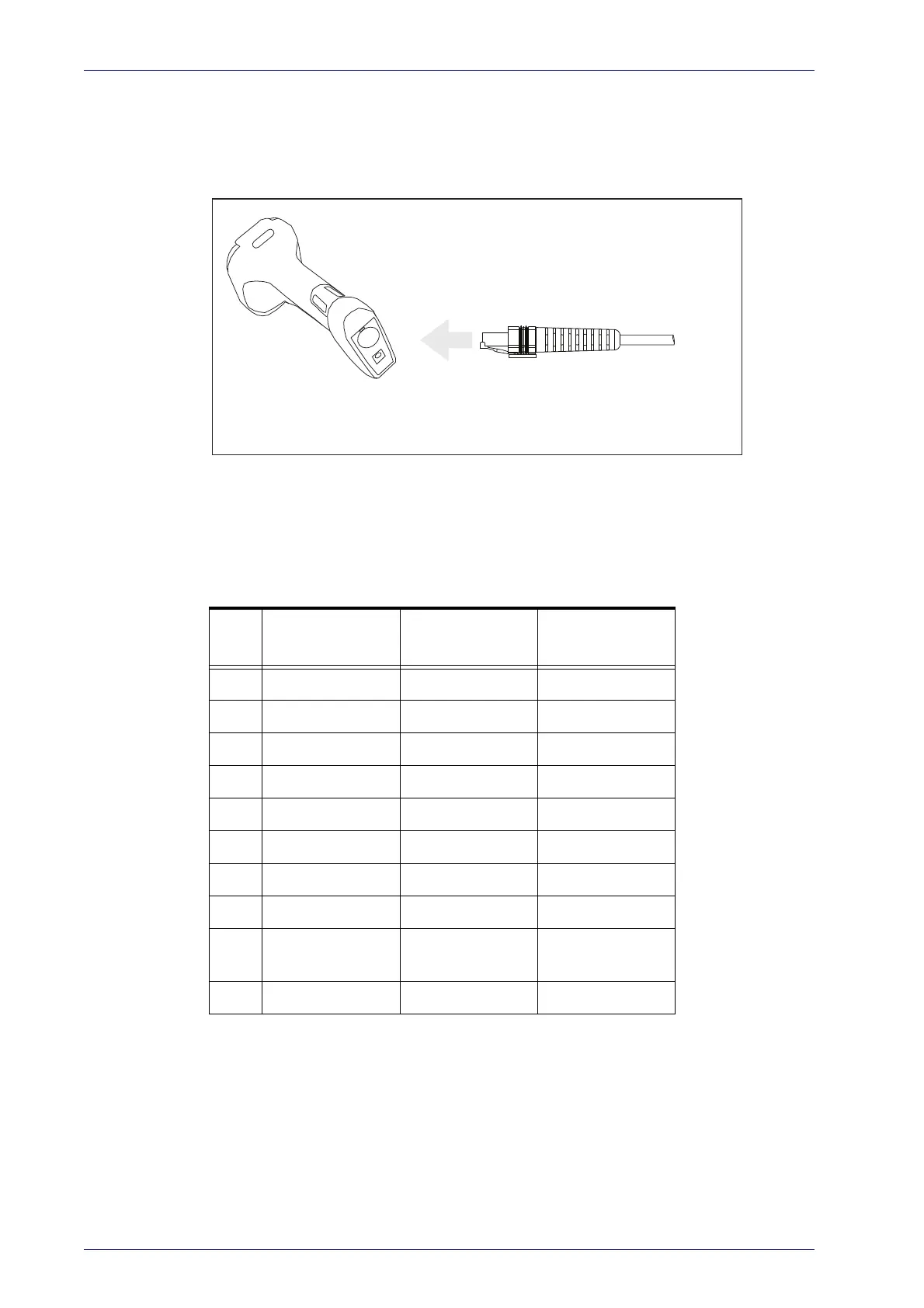

Figure 11. Standard Cable Pinouts: Handheld
The signal descriptions in Table 52 apply to the connector on the reader and
are for reference only.
Table 52. Standard Cable Pinouts
Pin RS-232 USB
Keyboard
Wedge
1 RTS (out)
2 D+ CLKIN (KBD side)
3 D- DATAIN (KBD side)
4 GND GND GND
5 RX
6 TX
7 VCC VCC VCC
8 CLKOUT (PC side)
9
DATAOUT (PC
si
de
)
10 CTS (in)

Datalogic PowerScan PBT9500 Specifications

General

Type	Handheld bar code reader
Wavelength	680 nm
Sensor type	Laser
Scanner type	1D/2D
Tilt reading angle	0 - 360 °
Pitch reading angle	0 - 40 °
Light levels (direct sunlight)	0 - 100000 lx
Linear (1D) barcodes supported	-
2D (matrix & stacked) barcodes supported	Aztec Code, Data Matrix, MaxiCode, Micro QR Code, QR Code
Battery life	10 h
Charging time	4 h
Battery capacity	2150 mAh
Power source type	Battery
Number of reads per charge	30000
Number of batteries supported	1
Wireless range	100 m
Operating frequency	2400 - 2480 MHz
Standard interfaces	USB, RS-232
Connectivity technology	Wired & Wireless
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	-20 - 50 °C
Operating relative humidity (H-H)	0 - 95 %
Buzzer	Yes
Certification	IEC 62471 Class 1 LED
Product color	Black, Yellow
Protection features	Shock resistant, Water resistant
International Protection (IP) code	IP65
Cables included	RS-232

Weight and Dimensions

Depth	74 mm
Width	110 mm
Height	212 mm
Weight	380 g
