Enter/Exit Programming Mode 2D Global Features
188
PowerScan™ PD9530/PBT9500/PM9500
Maxicode Set Length 2
This feature specifies one of the bar code lengths for Maxicode Length Con-
trol
. Length 2 is the maximum label length if in Variable Length Mode, or the
second fixed length if in Fixed Length Mode. Characte
rs can be set from
0001 to 0145 characters in increments of 0001 (pad with zeroes).
See
page 268 for detailed instructions on setting this feature.
$CMXL2
Select Maxicode Length 2 Setting

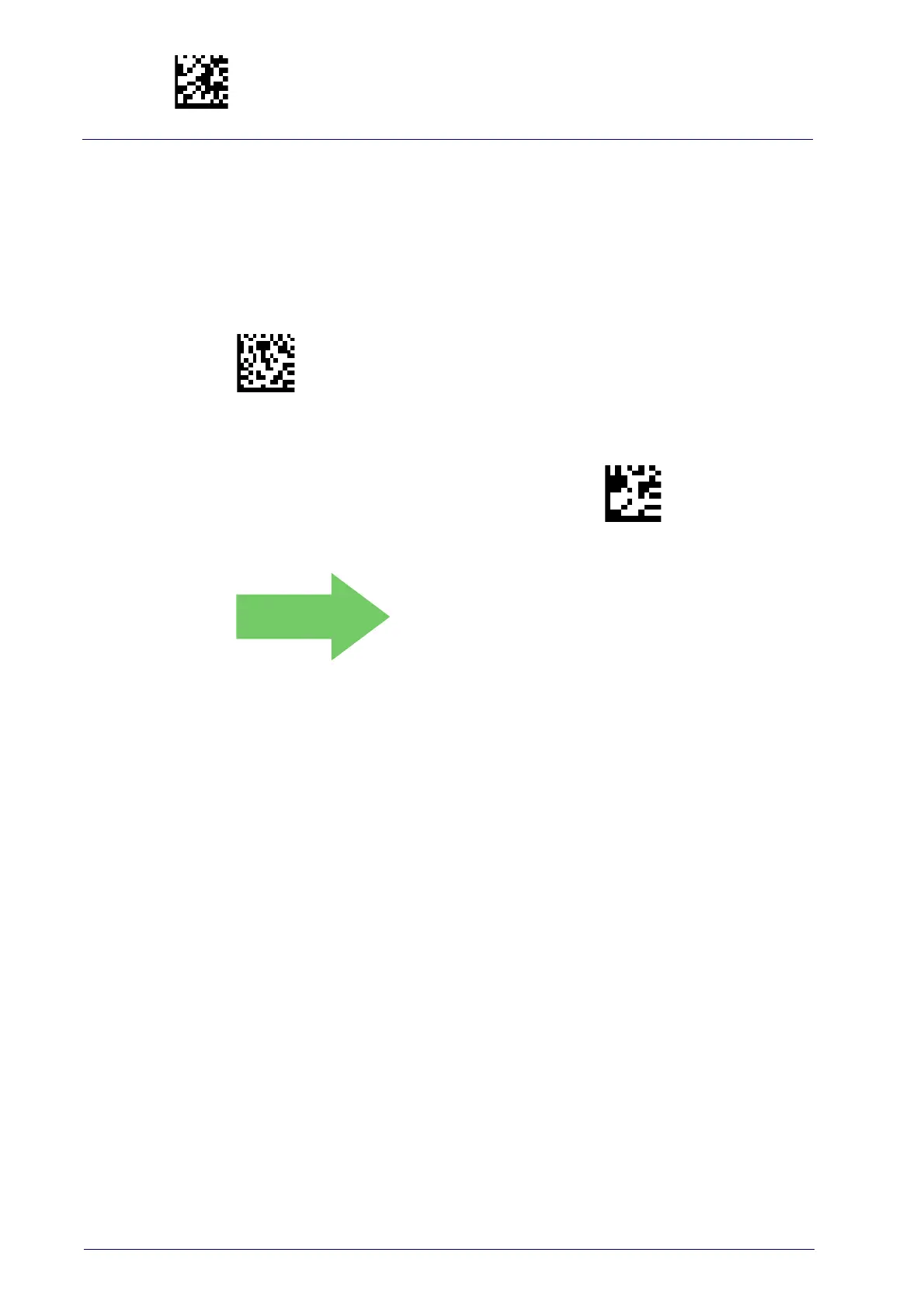

To configure this feature, scan the ENTER/EXIT
PROGRAMMING MODE bar code above, then the bar
code at left followed by the digits from the Alphanu-
meric characters in
Appendix D, Keypad
repre-
senting your desired character(s). End by scanning
the ENTER/EXIT bar
code again.
Make a mistake? Scan the CANCEL bar code to abort
an
d
not save the entry string. You can then start
again at the beginning.
~
CANCEL
DEFAULT
Length 2 is 0145 Characters
