Datalogic PowerScan PBT9500 User Manual

2D Global Features Enter/Exit Programming Mode
Product Reference Guide 193

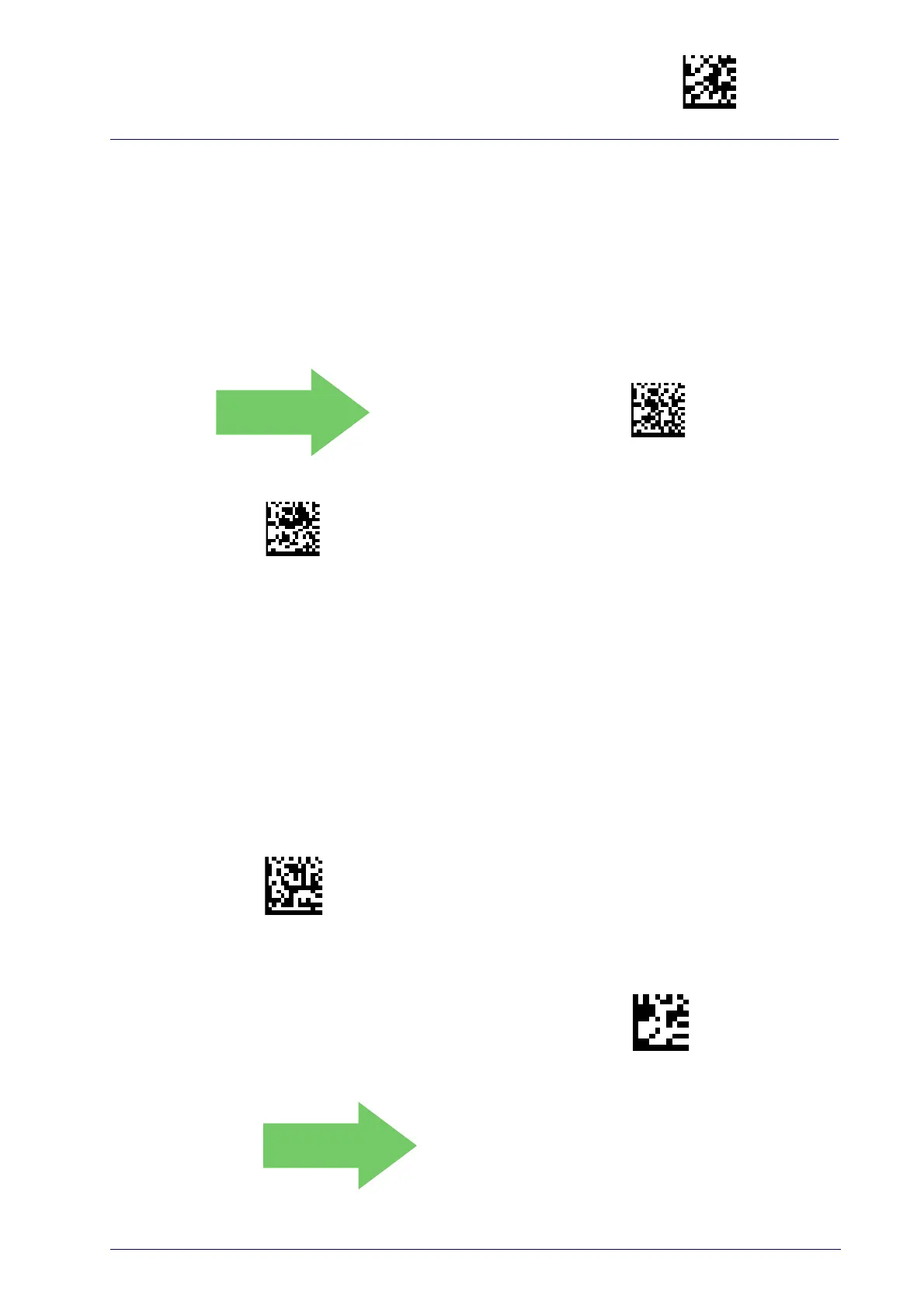

Micro PDF417 Length Control
This feature specifies either variable length decoding or fixed length decod-
ing for this symbology.
Variable Length: For variable length decoding, a minimum and maximum
length may be set.
Fixed Length: For fixed length decoding, two different lengths may be set.
DEFAULT
$CMILC00(CR)
Micro PDF417 Length Control = Variable Length
$CMILC01(CR)
Micro PDF417 Length Control = Fixed Length
Micro PDF417 Set Length 1
Specifies one of the bar code lengths for Micro PDF417 Length Control.
Length 1 is the minimum label length if in
Vari
able Length
Mode, or the first
fixed length if in Fixed Length Mode. Length includes the bar code’s data
characters only. Characters can be set from 0001 to 0366 characters (pad
with zeroes) in increments of 01. Any value greater than 0366 will be con-
sidered to be 0366.
See page 267 for detailed instructions on setting this feature.
$CMIL1
Select Micro PDF417 Length 1 Setting
To configure this feature, scan the ENTER/EXIT
PROGRAMMING MODE bar code above, then the bar
code at left followed by the digits from the Alphanu-
meric characters in
Appendix D, Keypad repre-
senting your desired character(s). End by scanning
the ENTER
/EXIT bar code again.
Make a mistake? Scan the CANCEL bar code to abort
and not save the entry string. You can then start
again at the beginning.
~
CANCEL
DEFAULT
0001 = Length 1 is 1 Character

Datalogic PowerScan PBT9500 Specifications

General

Type	Handheld bar code reader
Wavelength	680 nm
Sensor type	Laser
Scanner type	1D/2D
Tilt reading angle	0 - 360 °
Pitch reading angle	0 - 40 °
Light levels (direct sunlight)	0 - 100000 lx
Linear (1D) barcodes supported	-
2D (matrix & stacked) barcodes supported	Aztec Code, Data Matrix, MaxiCode, Micro QR Code, QR Code
Battery life	10 h
Charging time	4 h
Battery capacity	2150 mAh
Power source type	Battery
Number of reads per charge	30000
Number of batteries supported	1
Wireless range	100 m
Operating frequency	2400 - 2480 MHz
Standard interfaces	USB, RS-232
Connectivity technology	Wired & Wireless
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	-20 - 50 °C
Operating relative humidity (H-H)	0 - 95 %
Buzzer	Yes
Certification	IEC 62471 Class 1 LED
Product color	Black, Yellow
Protection features	Shock resistant, Water resistant
International Protection (IP) code	IP65
Cables included	RS-232

Weight and Dimensions

Depth	74 mm
Width	110 mm
Height	212 mm
Weight	380 g
