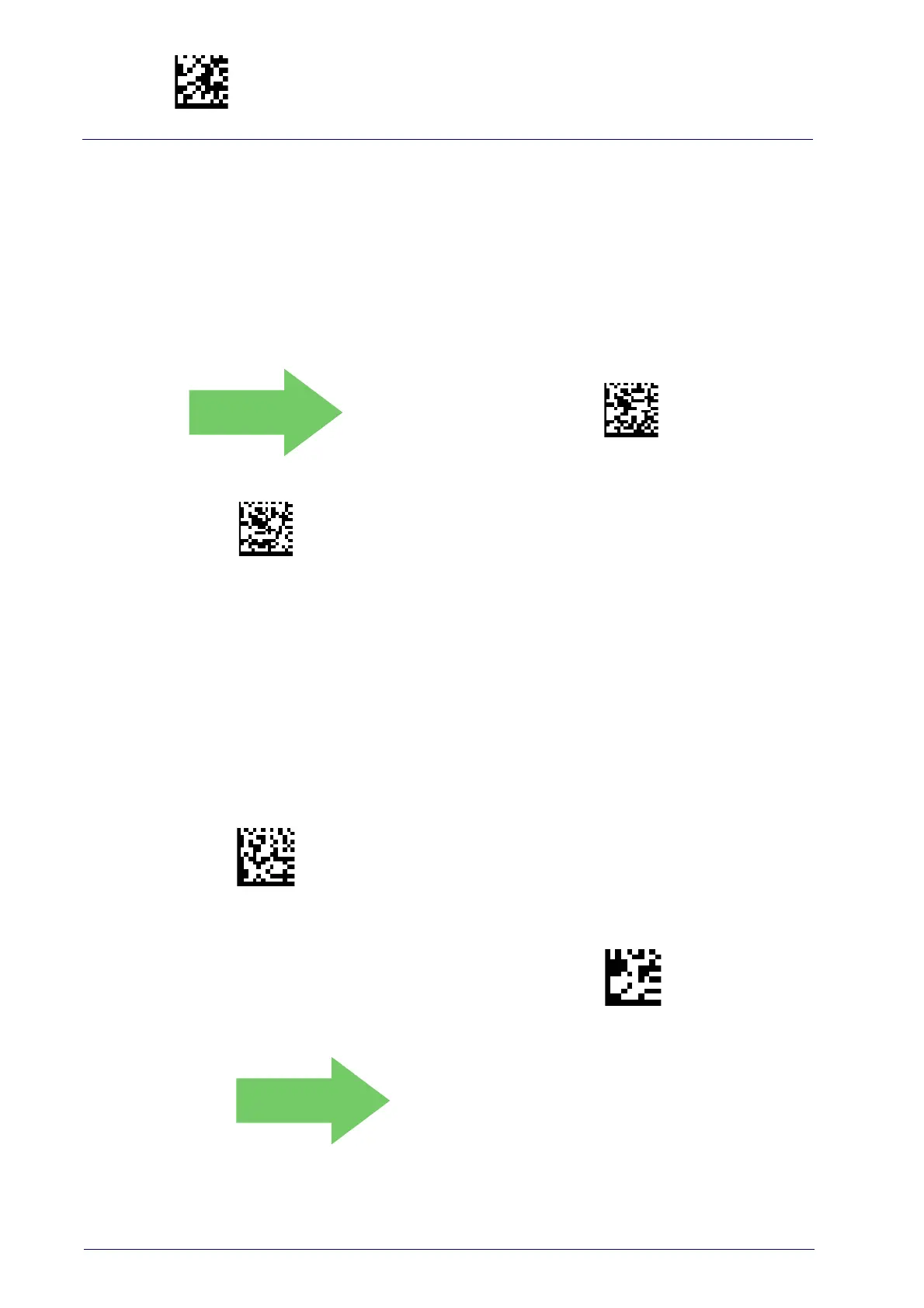

Enter/Exit Programming Mode 2D Global Features
184
PowerScan™ PD9530/PBT9500/PM9500
Data Matrix Length Control
This feature specifies either variable length decoding or fixed length decod-
ing for this symbology.
Variable Length:
For variable length decoding, a minimum and maximum
length may be set.
Fixed Length:
For fixed length decoding, two different lengths may be set.
DEFAULT
$CDMLC00(CR)
Data Matrix Length Control = Variable Length
$CDMLC01(CR)
Data Matrix Length Control = Fixed Length
Data Matrix Set Length 1
Specifies one of the bar code lengths for Data Matrix Length Control. Length
1 is the minimum label length if in
Vari
able Length
Mode, or the first fixed
length if in Fixed Length Mode. Characters can be set from 0001 to 3,116
characters in increments of 0001 (pad with zeroes).
See
page 267 for detailed instructions on setting this feature.
$CDML1
Select Data Matrix Length 1 Setting
To configure this feature, scan the ENTER/EXIT
PROGRAMMING MODE bar code above, then the bar
code at left followed by the digits from the Alphanu-
meric characters in
Appendix D, Keypad
repre-
senting your desired character(s). End by scanning
the ENTER/EXIT bar
code again.
Make a mistake? Scan the CANCEL bar code to abort
an
d
not save the entry string. You can then start
again at the beginning.
~
CANCEL
DEFAULT
0001 = Length 1 is 1 Character
