Datalogic PowerScan PBT9500 User Manual

Enter/Exit Programming Mode
250 PowerScan™ PD9530/PBT9500/PM9500

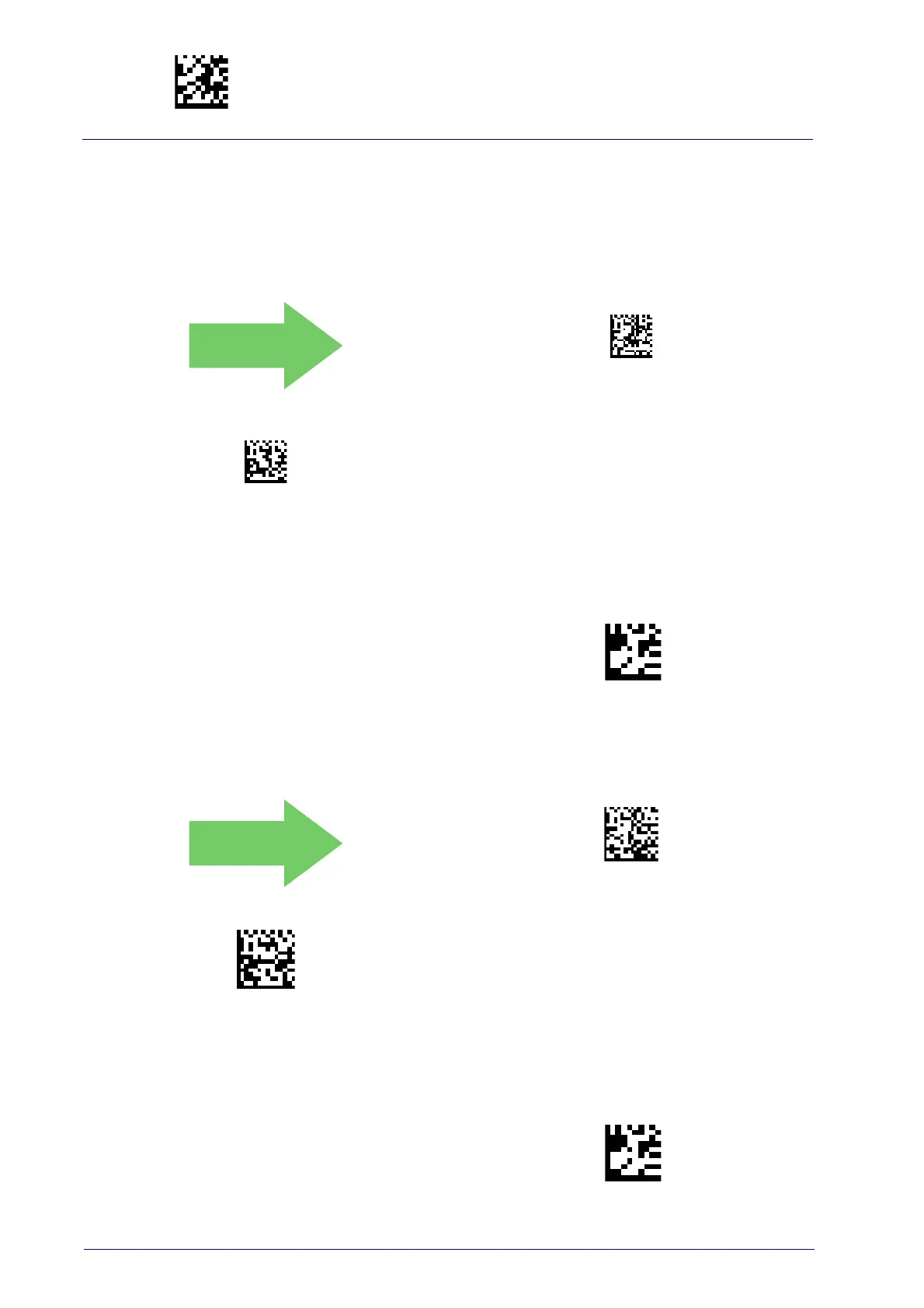

Action Configuration for Function Keys
Configure actions (up to three) for the function keys
Configure Actions for F1
DEFAULT
$CPWEV0000\r
F1 No Actions Configured
$CPWEV
Configures Action for F1
To configure this feature, scan the ENTER/EXIT PRO-
GRAMMING MODE bar code above, then the bar code
for the Function Key
you want to program. Next scan
4 digits from the Alphanumeric characters in
Appen-
dix D, Keypad
.
The first digit must be 0; the following 3 digits must
be configured accordi
ng to the CMD_ID numbers in
Table 26 on page 249 . End by scanning the
ENTER/EXIT bar code again.
Make a mistake? Scan the CANCEL bar code to
abort
and not save the entry string. You can then start
again at the beginning.
~
CANCEL
DEFAULT
$CPWET0000\r
F2 No Actions Configured
$CPWET
Configure Actions for F2
To configure this feature, scan the ENTER/EXIT PRO-
GRAMMING MODE bar code above, then the bar code
for the Function Key
you want to program. Next scan
4 digits from the Alphanumeric characters in
Appen-
dix D, Keypad
.
The first digit must be 0; the following 3 digits must
be configured accordi
ng to the CMD_ID numbers in
Table 26 on page 249 . End by scanning the
ENTER/EXIT bar code again.
Make a mistake? Scan the CANCEL bar code to
abort
and not save the entry string. You can then start
again at the beginning.
~
CANCEL
Configure Actions for F2

Datalogic PowerScan PBT9500 Specifications

General

Type	Handheld bar code reader
Wavelength	680 nm
Sensor type	Laser
Scanner type	1D/2D
Tilt reading angle	0 - 360 °
Pitch reading angle	0 - 40 °
Light levels (direct sunlight)	0 - 100000 lx
Linear (1D) barcodes supported	-
2D (matrix & stacked) barcodes supported	Aztec Code, Data Matrix, MaxiCode, Micro QR Code, QR Code
Battery life	10 h
Charging time	4 h
Battery capacity	2150 mAh
Power source type	Battery
Number of reads per charge	30000
Number of batteries supported	1
Wireless range	100 m
Operating frequency	2400 - 2480 MHz
Standard interfaces	USB, RS-232
Connectivity technology	Wired & Wireless
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	-20 - 50 °C
Operating relative humidity (H-H)	0 - 95 %
Buzzer	Yes
Certification	IEC 62471 Class 1 LED
Product color	Black, Yellow
Protection features	Shock resistant, Water resistant
International Protection (IP) code	IP65
Cables included	RS-232

Weight and Dimensions

Depth	74 mm
Width	110 mm
Height	212 mm
Weight	380 g
