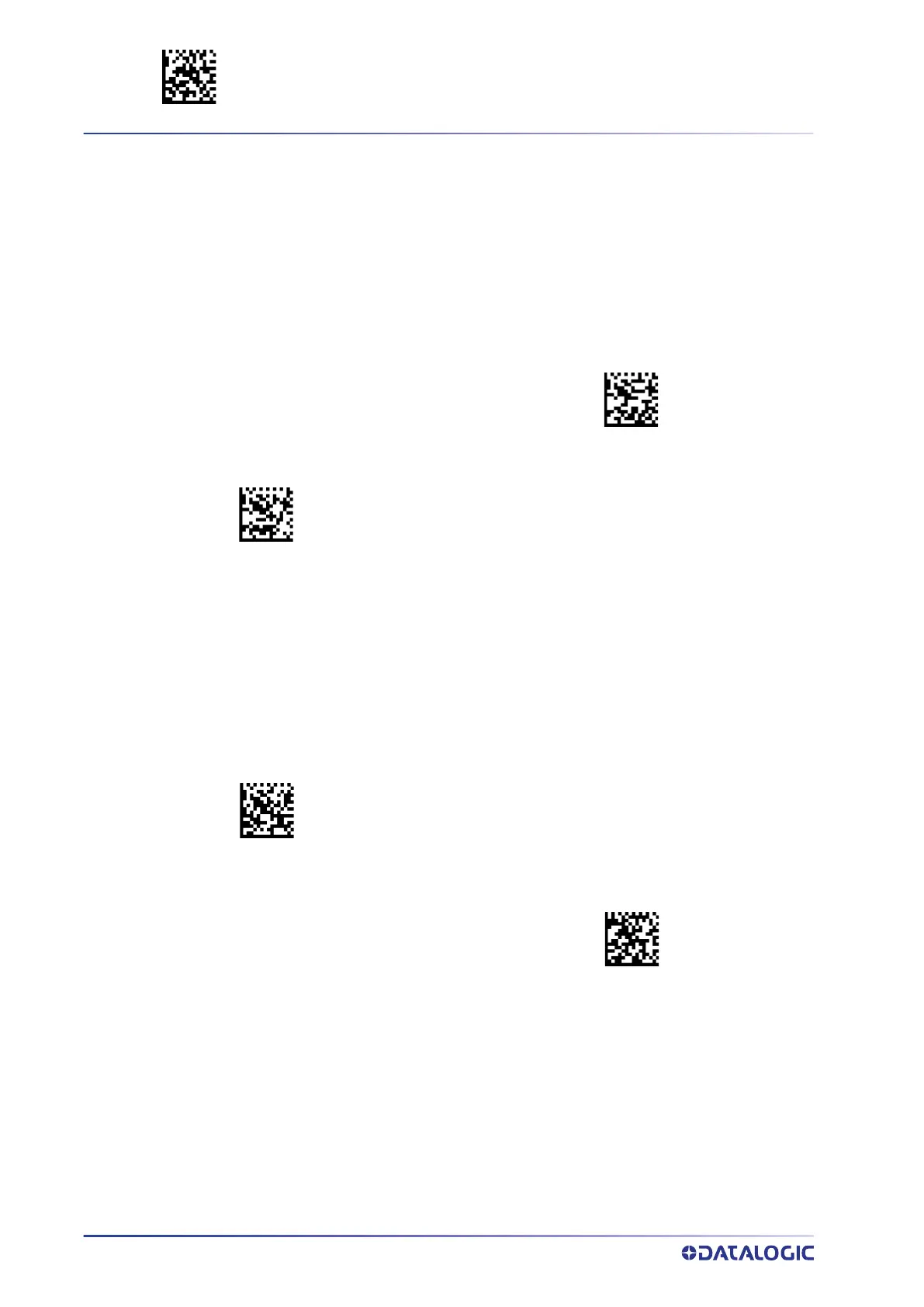

ENTER/EXIT PROGRAMMING MODE 2D SYMBOLOGIES

204

POWERSCAN™ PD/PM96XX

Data Matrix Length Control

This feature specifies either variable length decoding or fixed length decoding for this

symbology.

Variable Length:

For variable length decoding, a minimum and maximum length may

be set.

Fixed Length:

For fixed length decoding, two different lengths may be set.

Data Matrix Set Length 1

This feature specifies one of the bar code lengths for "Data Matrix Length Control" on

page 204

. Length 1 is the minimum label length if in Variable Length Mode, or the first

fixed length if in Fixed Length Mode. Characters can be set from 0001 to 3,116 charac-

ters in increments of 0001 (pad with zeroes).

See "

Set Length 1" on page 301 for detailed instructions on setting this feature.

$CDMLC00



Data Matrix Length Control = Variable Length

Data Matrix Length Control = Fixed Length

$CDMLC01

Select Data Matrix Length 1 Setting

$CDML1

To configure this feature, scan the ENTER/EXIT PRO-

GRAMMING MODE bar code above, then the bar

code at left followed by the digits from the Alphanu-

meric characters in Appendix D, Keypad represent-

ing your desired character(s). End by scanning the

ENTER/EXIT bar code again.

Make a mistake? Scan the CANCEL bar code to abort

and not save the entry string. You can then start

again at the beginning.

CANCEL



0001 = Length 1 is 1 Character
