Datalogic PowerScan PD9630-HP

MOUNTING INSTRUCTIONS
PRODUCT REFERENCE GUIDE 15

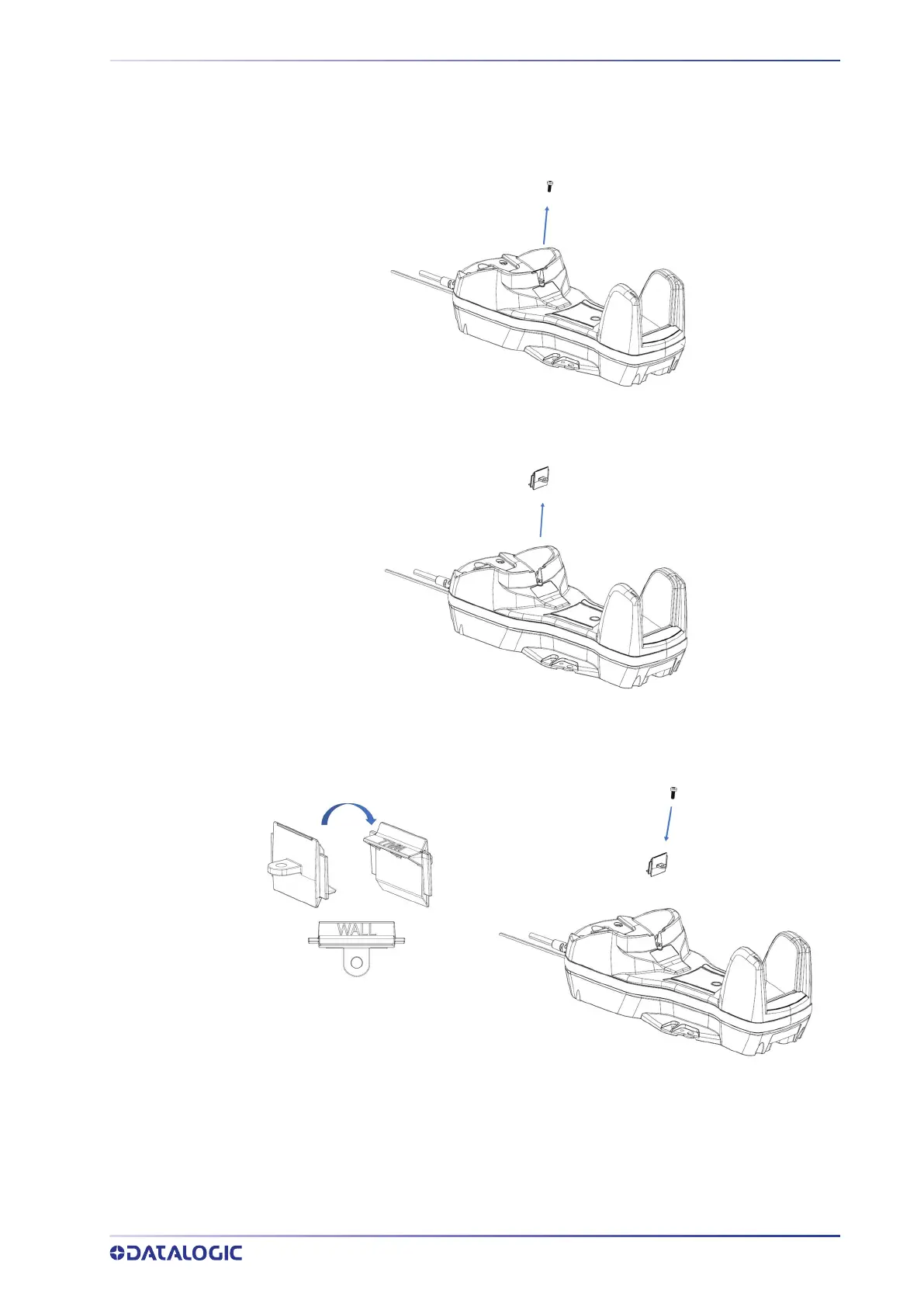

Changing the Orientation of the Positioning Tab:
1. Remove the screw holding the tab in place. Keep the screw for reuse.
2. Carefully lift the tab out.
3. Rotate the tab until you will see "WALL" tooth, put the rotated tab into place and
secure it with the screw.
