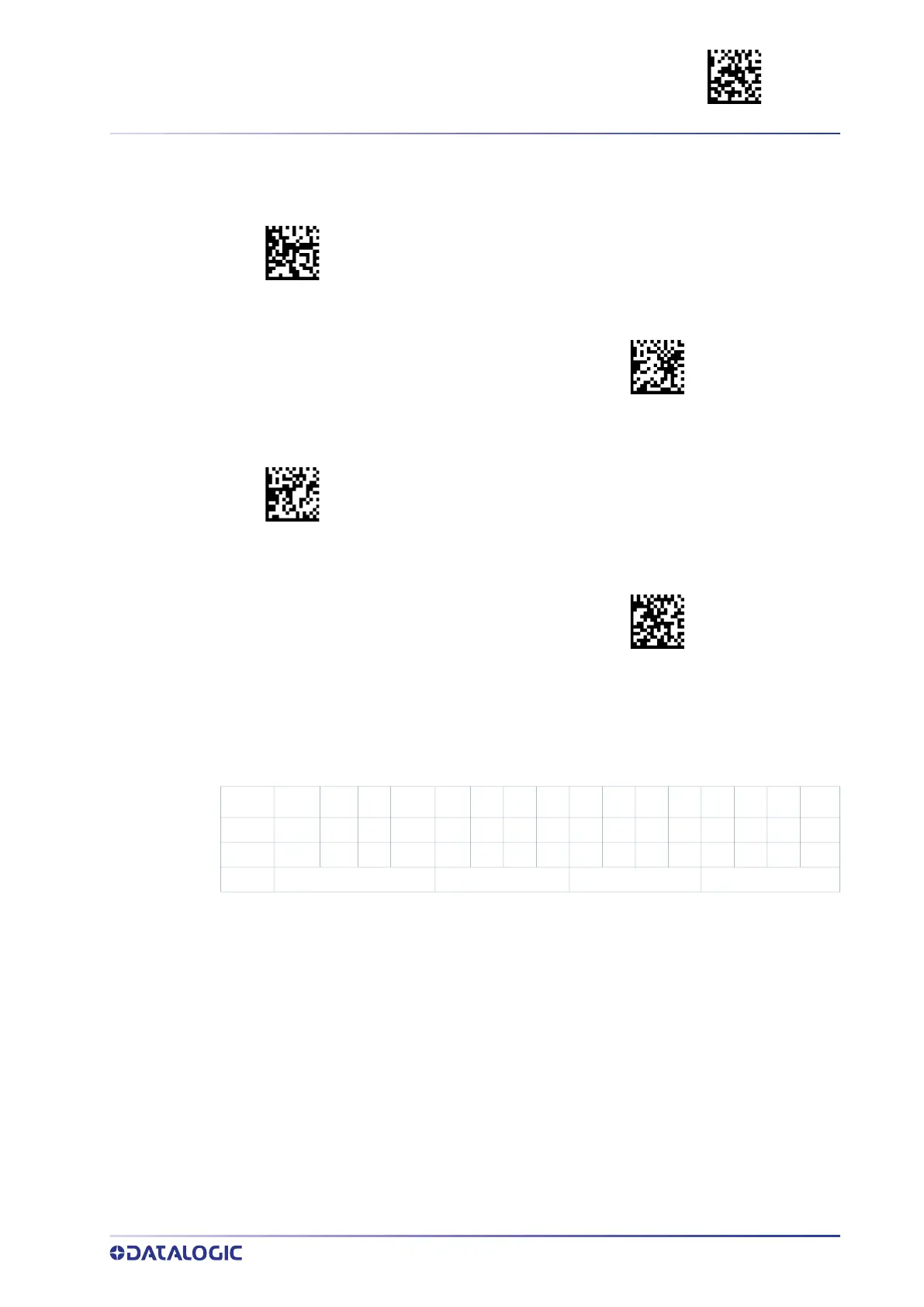

Key Programming
In the following table an example of key programming:
Enable only “Shift”, “1”, e “F1” :
The desired characters are: 8 C 0 0
All keys enabled
$CPWFZFFFF
$CPWFZ0000
All keys disabled
Enable a combination of keys
$CPWFZ
To configure this feature, scan the ENTER/EXIT PRO-
GRAMMING MODE bar code above, then the bar code
at left followed by 4 digits from the Alphanumeric
characters in Appendix D, Keypad.
Make a mistake? Scan the CANCEL bar code to abort
and not save the entry string. You can then start
again at the beginning.
CANCEL
BIT 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0
16 Keys
Shift F4 4 8 F1 1 5 9 F2 2 6 0 F3 3 7 Enter
Binary 1 0 0 0 1 1 0 0 0 0 0 0 0 0 0 0
Hex 8 C 0 0
To Next Page
