Datalogic PowerScan PD9630-HP

MOUNTING INSTRUCTIONS
PRODUCT REFERENCE GUIDE 17

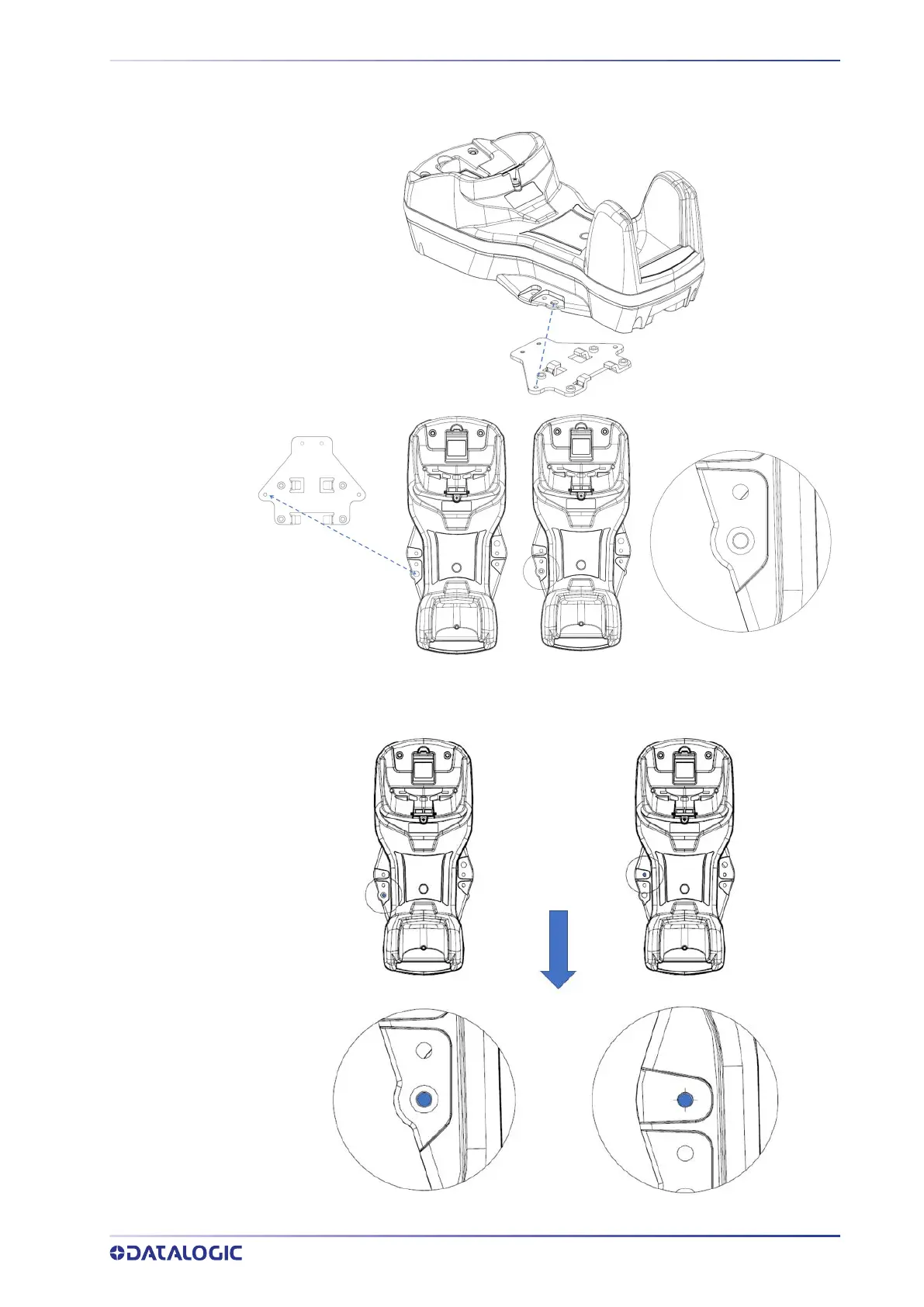

3. Align the base station with the mounting plate until you see the sphere inside the
bigger hole on the left.
4. Move the base station down until the sphere is aligned with the smaller hole.
