Datavideo TVS-2000A - Page 20

20
Step 4: Measure the height between the PTC-150 camera lens center to the ground in
centimeters.
Step 5: Measure the distance between the PTC-150 camera lens center to the object shot in
centimeters.

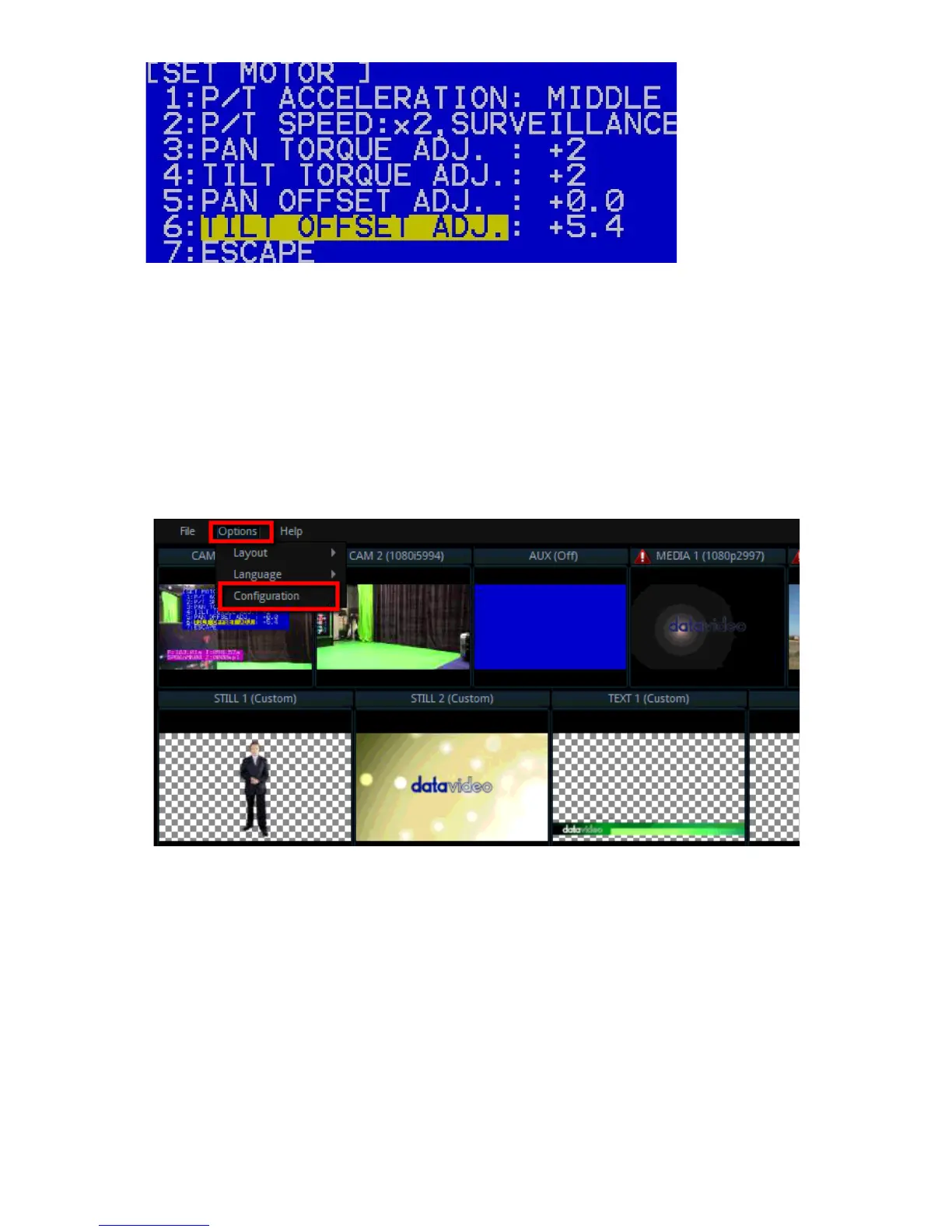

Step 6: Set the PTC-150 to Tracking Mode on the TVS-2000A user interface by selecting TVS-
2000A Configuration Window / Tracking tab / CAM 1 (SDI IN 1) / Camera Port: CAM CTRL 1 /
Tracking: V/C 1
• On the tool bar, select “Options” and then click “Configuration.”
• Click the “Tracking” tab.
