2.3.8.2. Advanced IP Interface (I7)
The I7 IP Interface connector is on the rear panel (Figure 2-8) of the optional interface card.

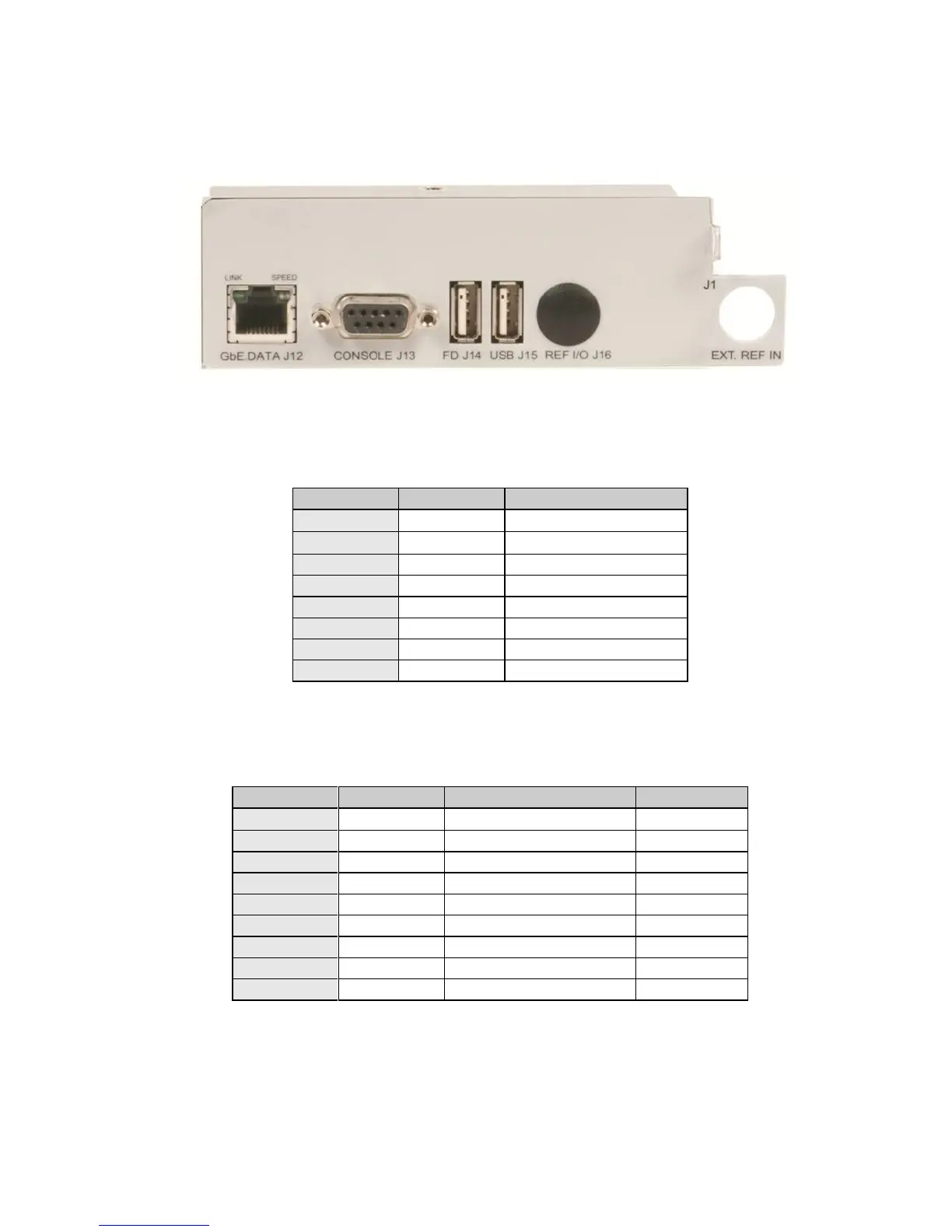

Figure 2-8 – I7 - IP Interface Rear Panel
The IP connections for the primary transmit and receive data are on the RJ45 connector J12
Table 2-11 - I7 IP Interface Connector Pinout (J12)
Pin
Name
Description
1
TX D1+
Transmit Data+
2
TX D1-
Transmit Data-
3
RX D2+
Receive Data+
4
BI D3+
Bi-directional pair C +
5
BI D3-
Bi-directional pair C -
6
RX D2-
Receive Data-
7
BI D4+
Bi-directional pair D +
8
BI D4-
Bi-directional pair D -
The Console connector, J13, is a nine pin female “D” connector provides the user access to for
configuration of the internal Vyatta router.
Table 2-12 - I7 Console Connector Pinout (J13)
Pin
Name
Description
Direction
1
Not Used
2
Transmit
RS–232 Transmit Signal
Output
3
Receive
RS–232 Receive Signal
Input
4
Not Used
5
Common
RS-232 Signal Common
I/O
6
Not Used
7
Not Used
8
Not Used
9
Not Used
