M7/M7L/M7LT Modular Satellite Modem Maintenance

M7/M7L/M7LT - Rev. 0.05 3-19

3.4.2.5. Interface Pages

The active interface parameters will be shown in the Interface pages and are used to configure the

baseband interface parameters of the M7. The Electrical Interface I/O, Overhead

multiplex/demultiplex, Engineering Service Channel parameters, and other interface parameters are

controlled in the “Interface” pages.

Each interface type will have a different set of pages. Details of the parameters can be found in

Section 3.4.2.5.4.

NOTE: The active interface is selected in the “Modulator” and “Demodulator” Data Interface pages.

3.4.2.5.1. Serial Synchronous Interface Pages

Figure 3-23 through Figure 3-28 represent six (6) of the eight (8) pages Serial Synchronous Interface

pages available to the user.

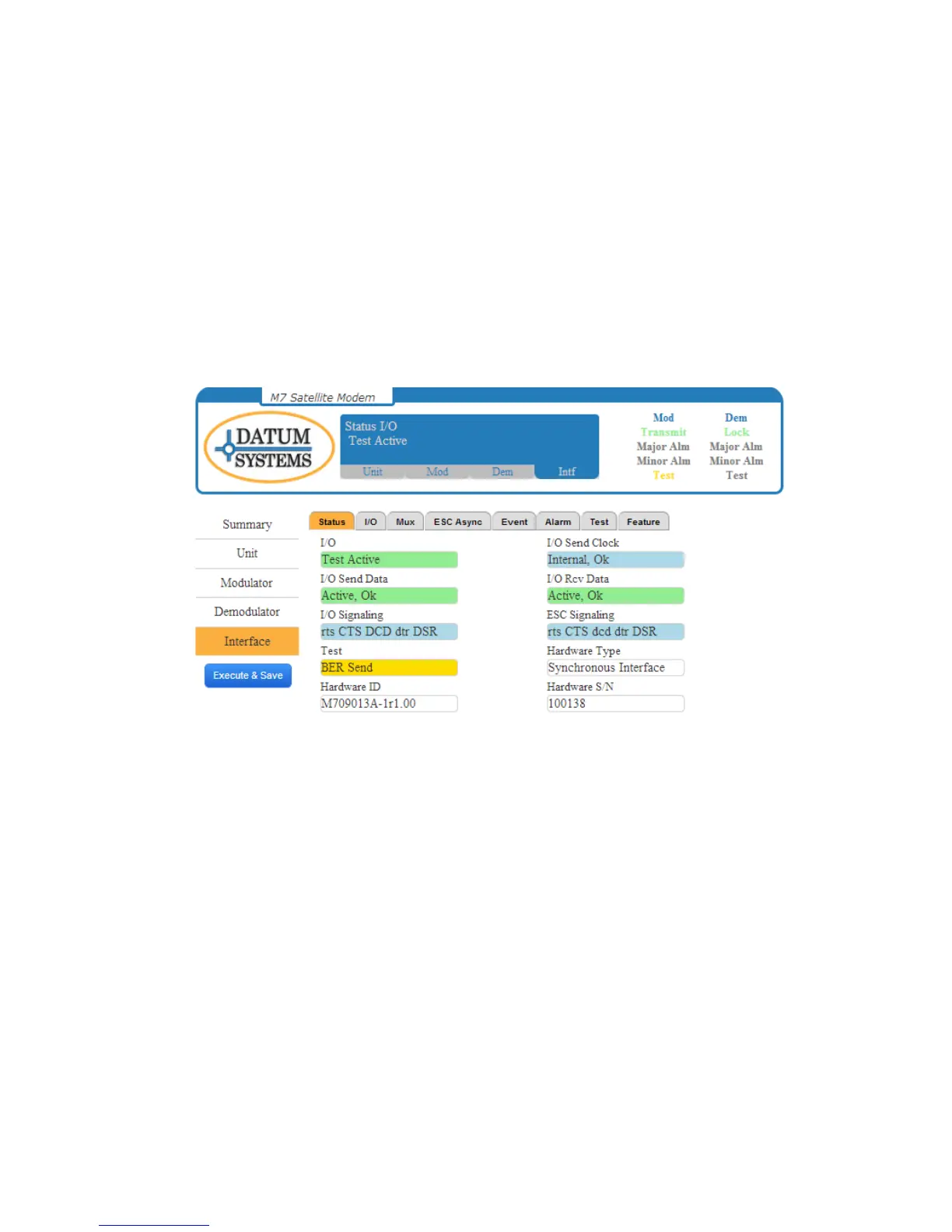

Figure 3-23 - Serial Synchronous Interface Status Page

Main Page
