DaVinci fireplace - Dimensions - Full Bay Configuration

10 Features and Specifications
© Travis Industries 4150126 100-01418

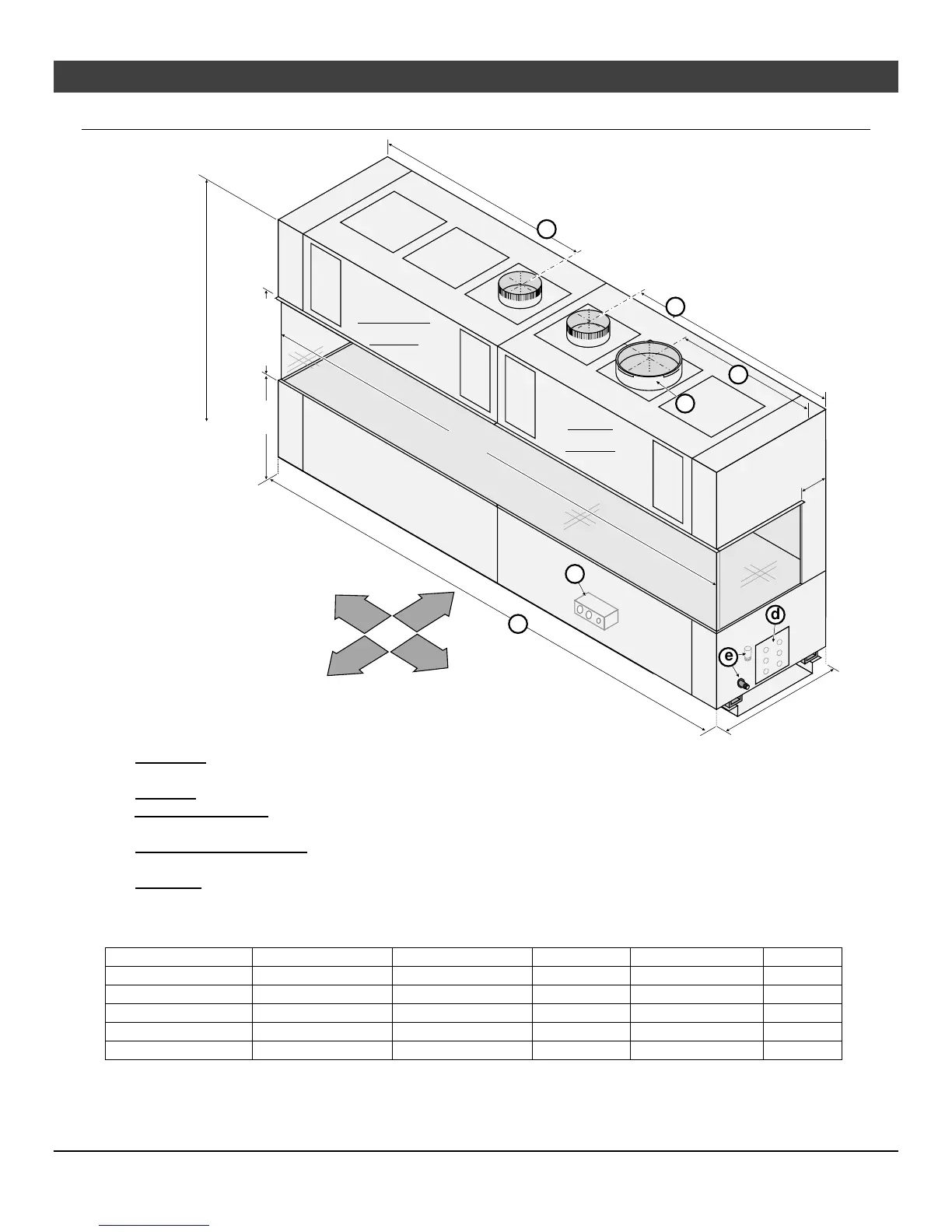

Dimensions – Full Bay Configuration
(a) Air intake – See table below for quantity - Location determined by fireplace length (see “Air Intake Duct
Location” on page 54 for details).
(b) Exhaust – Uses 10” or 8” Diameter B-Vent (determined by power exhaust type). Centered on fireplace.
(c) Gas Control Valve – Located to the front of the master module (the front of the fireplace is determined by gas
control valve location).
(d) Electrical Junction Box – On master module (location determined at time of order – can be relocated),
includes 120v input, exhaust vent power/harness, on-off LED harness.
(e) Gas Inlet – On master module (NOTE: the gas inlet is always located along the front edge, even if master
module is on the left side).
Horizontal Dimensions & Specifications
Version Width (x) Exhaust Loc. (y) Air Intakes Power Exhaust BTUs
84” Full Bay 84” (2134mm) 24” (610mm) 2 Low Volume 87,000
96” Full Bay 96” (2439mm) 36” (915mm) 3 High Volume 101,500
108” Full Bay 108” (2744mm) 36” (915mm) 3 High Volume 116,000
120” Full Bay 120” (3048mm) 48” (1220mm) 4 High Volume 130,500
132” Full Bay 132” (3353mm) 48” (1220mm) 4 High Volume 145,000
x
20"
508mm
5.75"
(147mm)
Front
avant
Right
droit
Rear
arrie're
Left
a' gauche
a
a
Master
Module
Secondary
Module
c


d
e
b
y
Version
Length
12.5"
318mm
12" Glass
42.625" (1083mm)
20" Glass
50.625" (1286mm)
30" Glass
60.625"
(1540mm)
36" Glass
66.625 (1693mm)
12" (305mm)
20" (508mm)
30" (762mm)
36" (915mm)
