Install Lower Titan Lock Braces (do not fully tighten)
Do not tighten the Titan braces until the glass opening is adjusted (see 26 for details).

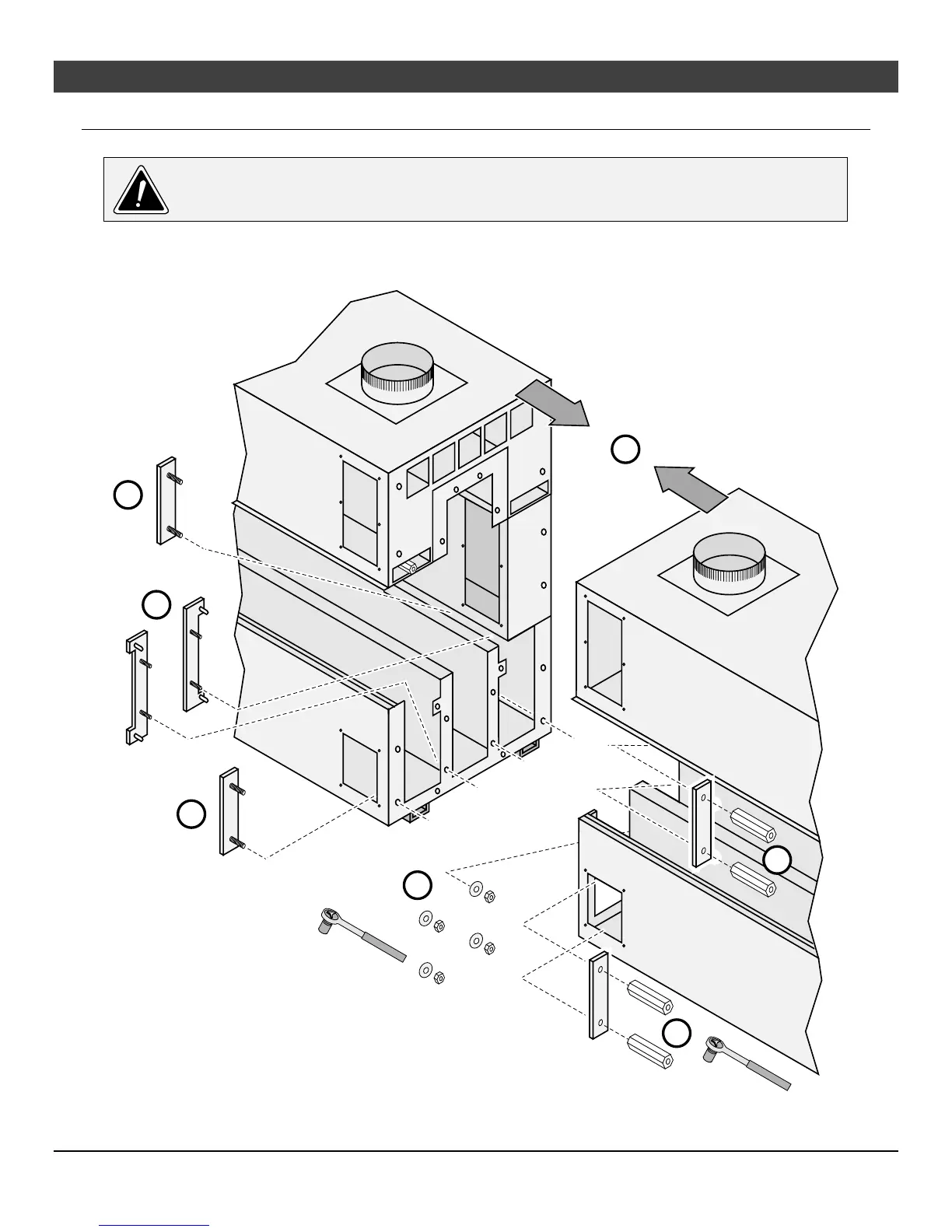

With the fireplace slid together (“a”), insert the lower outer braces into place (see “b” below). Hand-
tighten the coupler nuts onto the brace. Insert the lower inner braces into place (see “c” below). Place
washers over the studs then hand-tighten the nuts to secure the brace in place.
a
b
c
b
c
b
b
7/16"
Socket
3/4"
Socket
