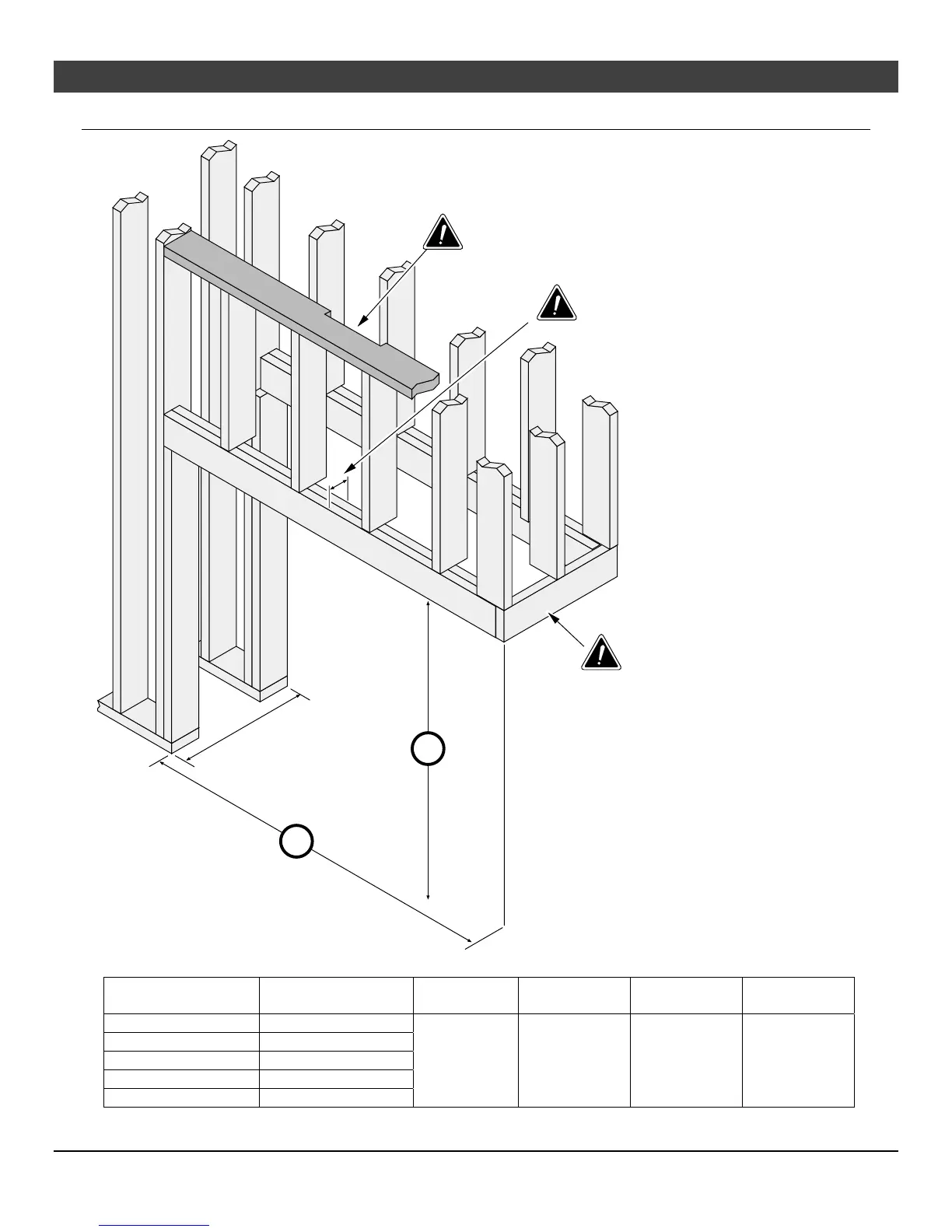

Typical Framing Dims. – Pier Configuration
Version Width (x) Height (y)
12” Glass
Height (y)
20” Glass
Height (y)
30” Glass
Height (y)
36” Glass
78” Pier 79.5” (2020mm)
50.625”
(1286mm)
58.625”
(1490mm)
68.625”
(1744mm)
74.625”
(1896mm)
90” Pier 91.5” (2325mm)
102” Pier 103.5” (2629mm)
114” Pier 115.5” (2934mm)
126” Pier 127.5” (3239mm)
19.625"
499mm
x
y
The framing above the fireplace
must be self-supporting (the
fireplace is not load-bearing).
When using a top plate, you may need to notch it at
the center to provide adequate vent clearance.
3" (77mm) Maximum for vent clearance.
Do not place vertical framing directly in the
center above the fireplace - it will infringe
upon the vent clearance requirements.
