46 Installation (for qualified installers only)
© Travis Industries 4150126 100-01418
Connecting the Power Exhaust Damper Harness to the Fireplace
This fireplace uses a damper near the power exhaust to prevent air from flowing through the fireplace
when the fireplace is off.
The power exhaust damper harness is available in various lengths (see page 13 for details).

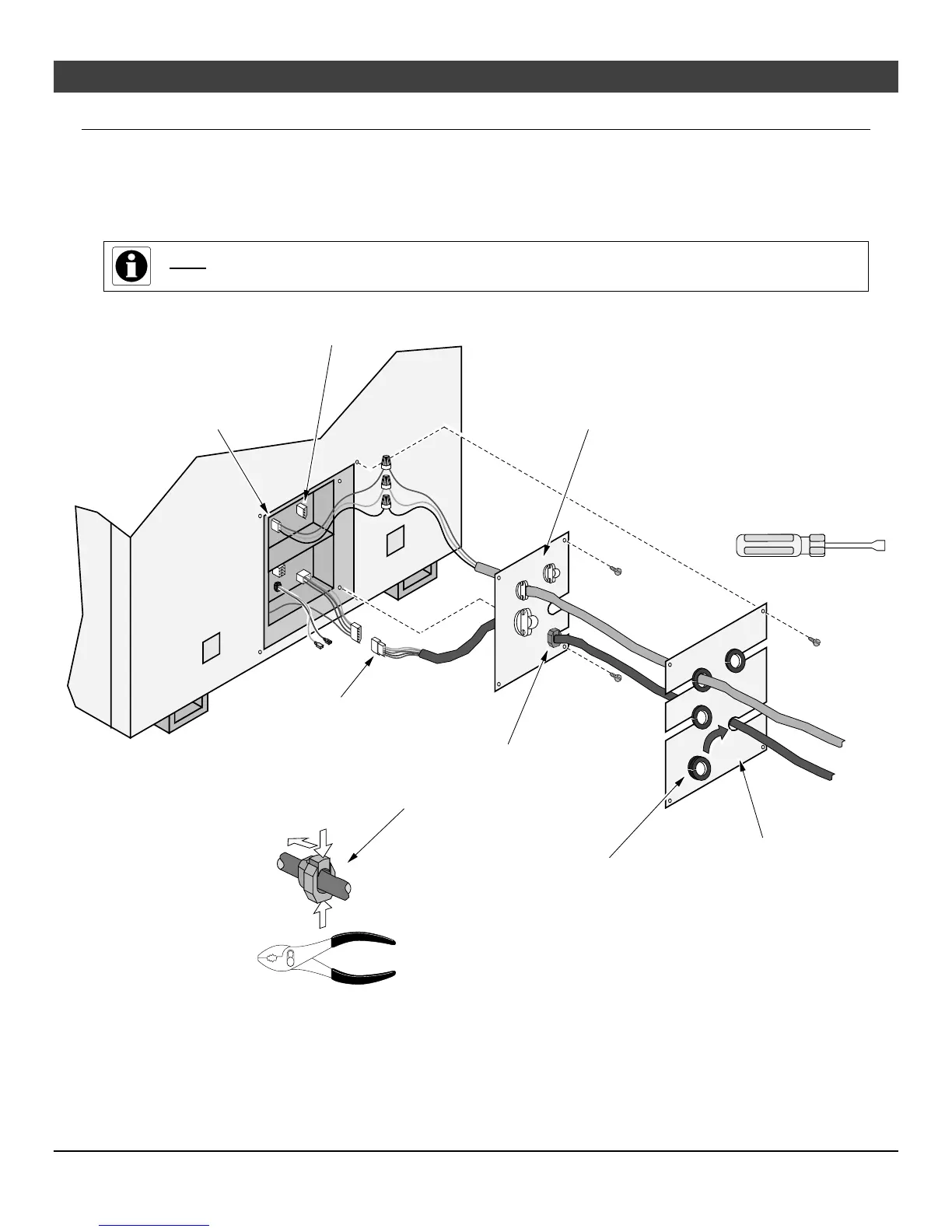

Route the power exhaust damper harness through the cover plates and attach to the molex connector
on the fireplace as shown below.
HINT: Keep the cover plates disconnected until all wiring to the fireplace is attached. You may also
wish to leave the romex clamps loose until the cover plates are ready to be attached.
The opposite end of the damper harness attaches to the power vent assembly (see “Wiring the Power
Exhaust Assembly” for details).
Strain Relief
(remove to install wire)
Power Exhaust
Damper Harness
Power Exhaust Power Out
Electrical Input
Grommet
(remove to install wire)
Inner Cover Plate
Outer Cover Plate
1/4" Nutdriver
Use pliers to compress
the strain relief when
inserting or removing it
from the hole.
To Next Page
