Wiring the Power Exhaust Assembly (continued)

 In addition to the exhaust blower line, a low-voltage wire harness is routed from the fireplace to the

damper inside the power exhaust assembly (see page 6 for wire lengths and part numbers).

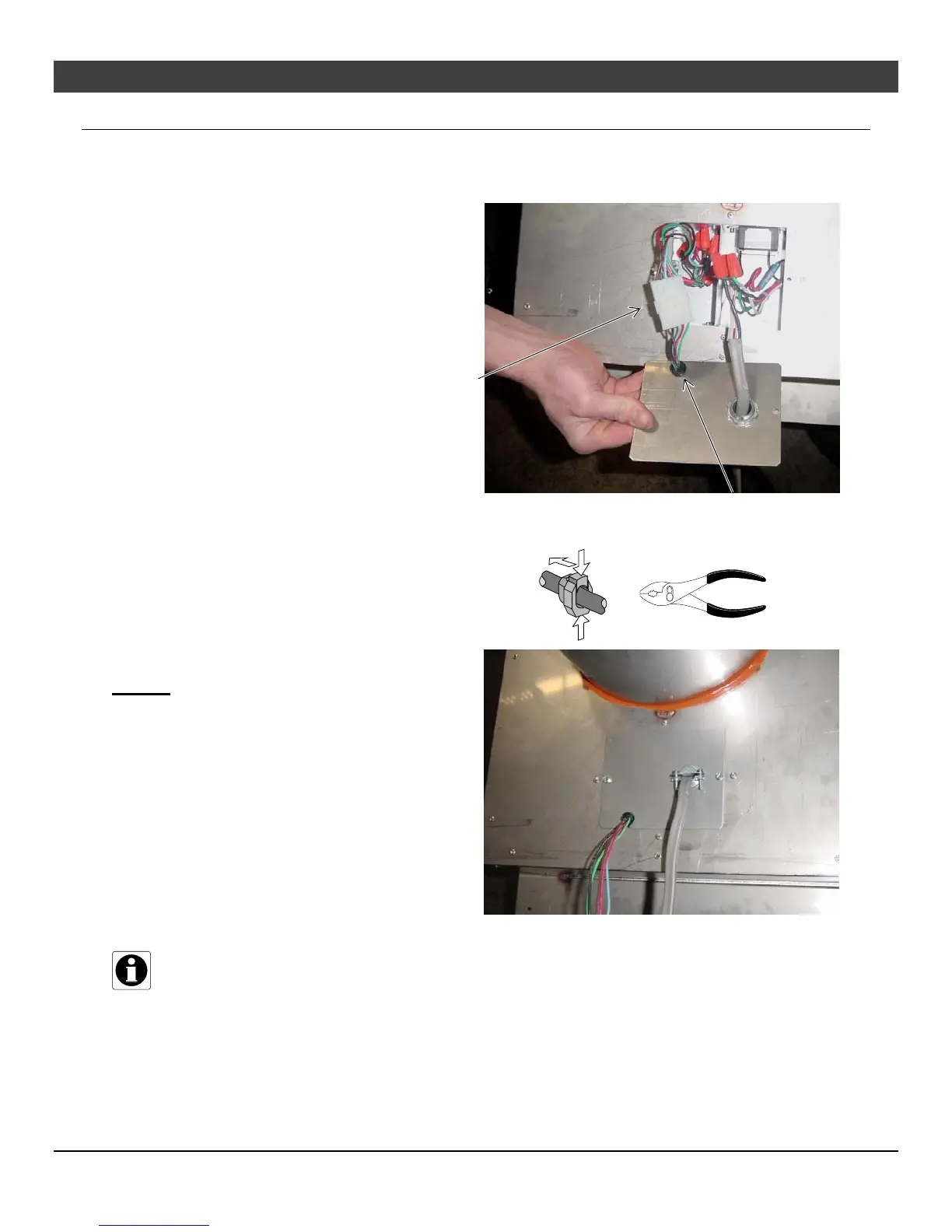

Route the exhaust damper wire harness to the

junction box on the power exhaust. Remove the

junction box cover plate. Remove the strain relief

from the cover plate (see illustration below to the

right). Route the wires through the slot on the

cover plate and replace the strain relief. Attach the

molex connector from the harness to the molex

connector inside the exhaust box assembly).

Exhaust Damper Molex Connector

Replace the junction box cover, making sure all

wiring is properly inserted.

Caution: Label all wires prior to disconnection

when servicing controls. Wiring errors

can cause improper and dangerous

operation.

Test blower operation after attaching the wiring (leave gas off, turn appliance on, verify blower

functions correctly).

Use pliers to compress the strain relief from the top

and bottom while pushing it into the hole in the bracket.
