DaVinci fireplace - Mantel Requirements

68 Installation (for qualified installers only)
© Travis Industries 4150126 100-01418
Do Not Drill or Screw Zone
When using screws to secure drywall to the fireplace, make sure to avoid the area shown below. Make
sure screws penetrate no more than ½” (13mm) into the fireplace.
Mantel Requirements
 A mantel (combustible or non-combustible) may be installed above the fireplace. Make sure it does
not overlap the glass opening.





















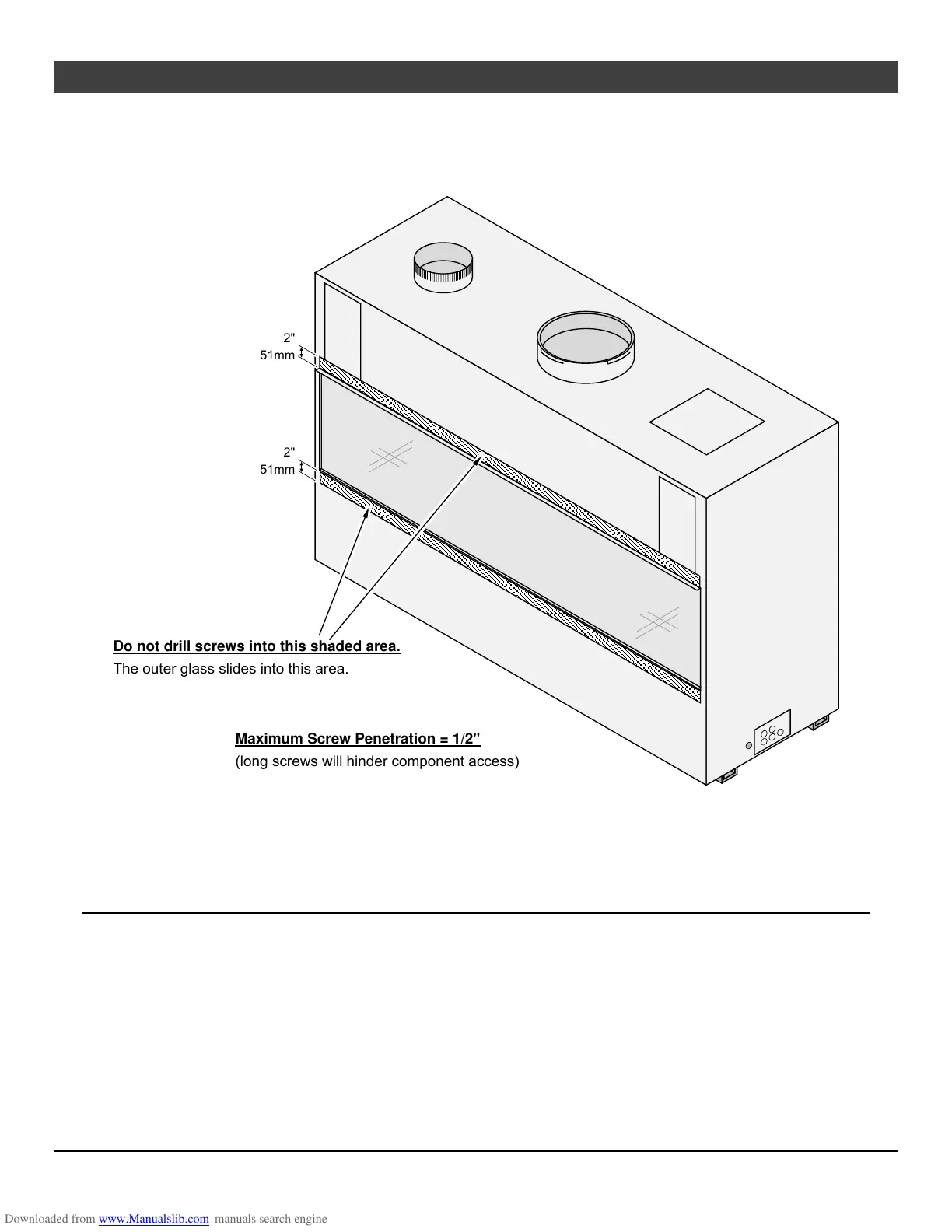

Do not drill screws into this shaded area.
The outer glass slides into this area.
Maximum Screw Penetration = 1/2"
(long screws will hinder component access)
2"
51mm
2"
51mm
