Gas Inlet Location
Gas inlet is determined by fireplace configuration and how the fireplace was ordered. Refer to the
dimensions pages for the configuration being used to determine what options are available (pages 7
through 12). When ordering the fireplace, the gas inlet is either from the side (left or right) or from the
base (left or right).

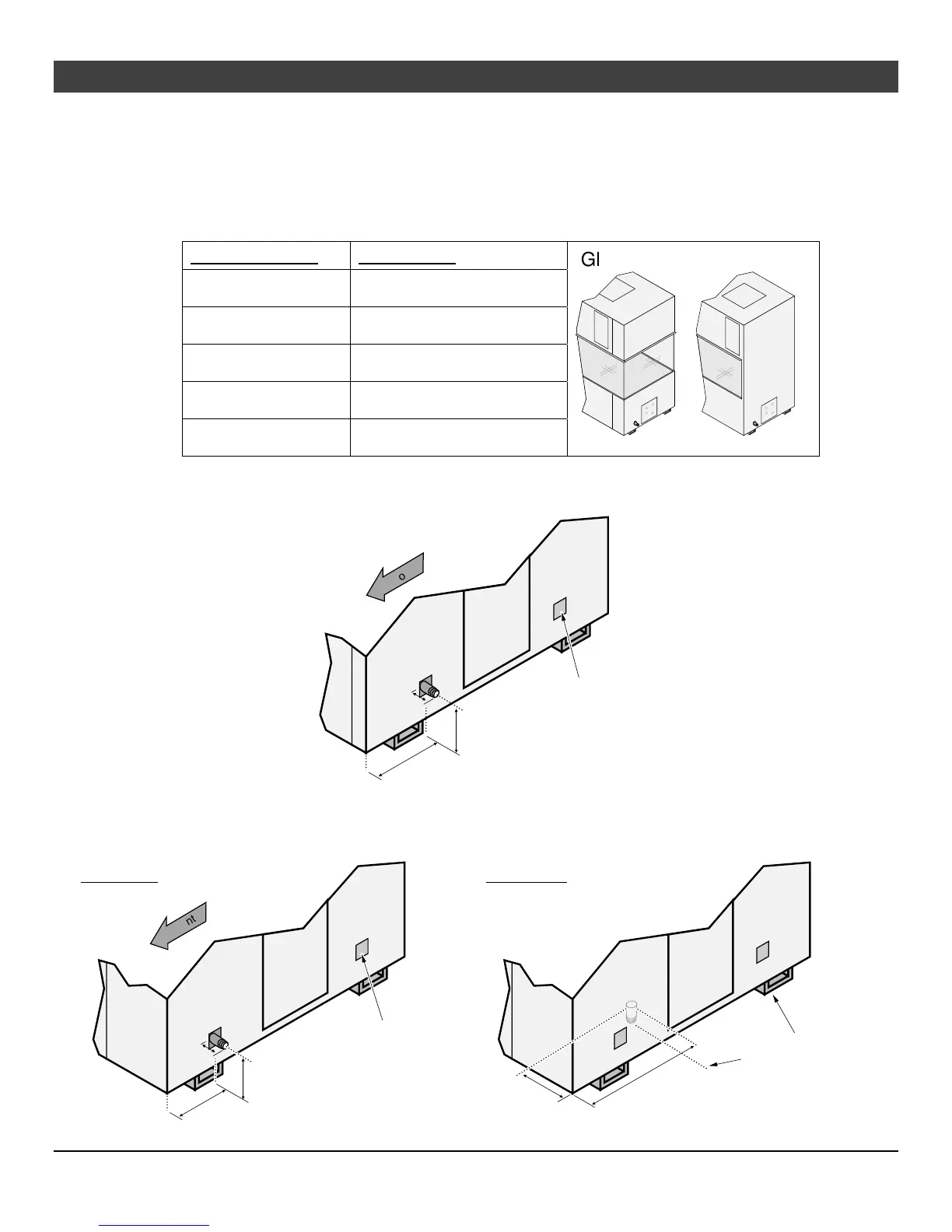

Gas inlet dimensions are shown below. Make sure to refer to the end style being used.
Type of Fireplace
Type of Ends
1-Sided Two Steel Ends
See Through Two Steel Ends
Pier One Steel, One Glass End
Full Bay Two Glass Ends
Island Two Glass Ends
Gas Inlet – Steel End
The gas inlet is on the side (not available from the base).
Gas Inlet – Glass End
The gas inlet is on the side or the base. NOTE: The gas inlet on the base is only available in one
location. When looking from the side, the gas inlet from the base will always be on the left.


Glass End Steel End
The gas line may be
repositioned to the back.
1"
(25mm)
4.5" (115mm)

Front
4" (102mm)
The gas line may be
repositioned to the back.
1"
(25mm)
3.125" (80mm)

Front
3.625" (93mm)
Side Inlet
2.5" (64mm)
6" (153mm)
The gas inlet is
approximately 1/8"
(3mm) above the base
of the fireplace.
Base Inlet
