8 Features and Specifications
© Travis Industries 4150126 100-01418

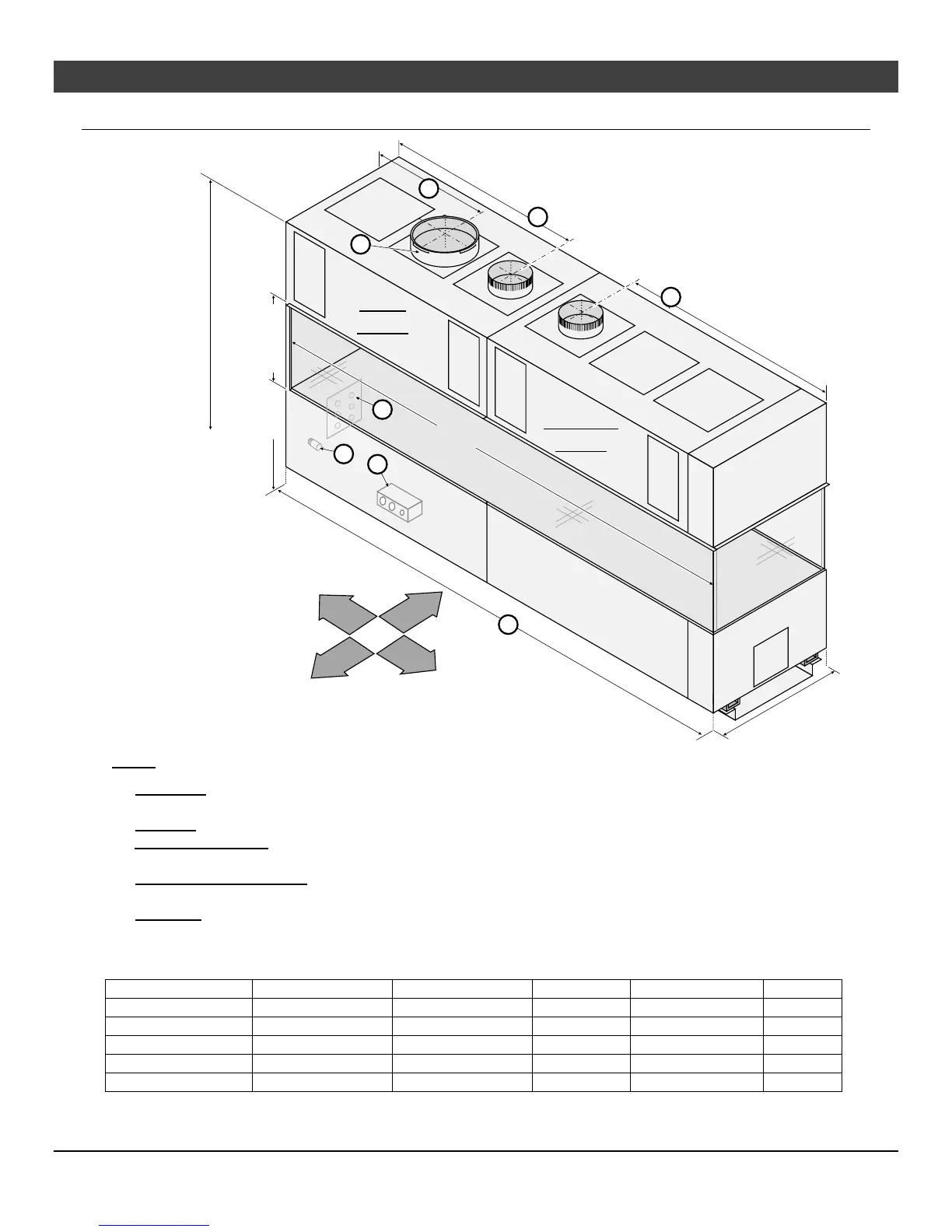

Dimensions – Pier Configuration
NOTE: The master module is always on the end that has a steel end.
(a) Air intake – See table below for quantity - Location determined by fireplace length (see “Air Intake Duct
Location” on page 54 for details).
(b) Exhaust – Uses 10” or 8” Diameter B-Vent (determined by power exhaust type). Centered on fireplace.
(c) Gas Control Valve – Located to the front of the master module (the front of the fireplace is determined by gas
control valve location).
(d) Electrical Junction Box – On master module (location determined at time of order – can be relocated),
includes 120v input, exhaust vent power/harness, on-off LED harness.
(e) Gas Inlet – On master module (NOTE: the gas inlet is always located along the front edge, even if master
module is on the left side).
Horizontal Dimensions & Specifications
Version Width (x) Exhaust Loc. (y) Air Intakes Power Exhaust BTUs
78” Pier 79” (2007mm) 19” (483mm) 2 Low Volume 87,000
90” Pier 91” (2312mm) 25” (635mm) 3 High Volume 101,500
102” Pier 103” (2617mm) 25” (635mm) 3 High Volume 116,000
114” Pier 115” (2921mm) 31” (788mm) 3 High Volume 130,500
126” Pier 127” (3226mm) 31” (788mm) 3 High Volume 145,000
x
Front
avant
Right
droit
Rear
arrie're
Left
a' gauche
a
y
b
a
Master
Module
Secondary
Module
c
Version
Length
19.75"
502mm
d
e
12.5"
318mm
12" Glass
42.625" (1083mm)
20" Glass
50.625" (1286mm)
30" Glass
60.625"
(1540mm)
36" Glass
66.625 (1693mm)
12" (305mm)
20" (508mm)
30" (762mm)
36" (915mm)
