DaVinci fireplace - Typical Framing Dims - Left-Sided Corner

Installation (for qualified installers only) 39
© Travis Industries 4150126 100-01418

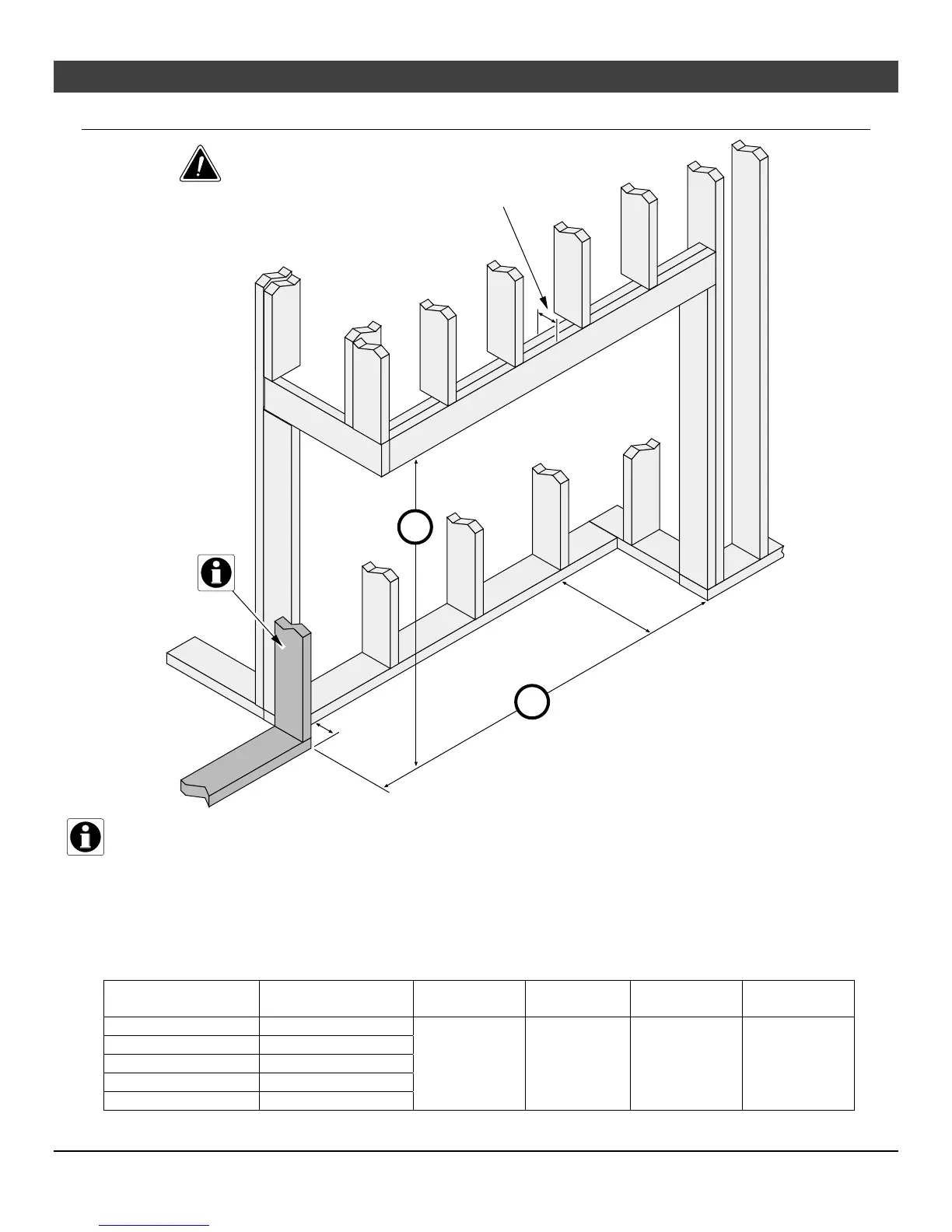

Typical Framing Dims – Left-Sided Corner
Recessing the Back Edge of the Fireplace (Optional)
Installers may wish to recess the back of the fireplace to allow for a more shallow installation, placing the side
glass next to the side wall(s). If you decide to recess the back of the fireplace, make sure to accommodate the
framing and facing dimensions. The back edge of the glass extends to a location 5.75” (147mm) from the back
of the fireplace (see dimensions page for details). Framing for this type of installation may protrude forward
from the back wall of the opening a maximum of 5.25” (134mm) when using ½” (13mm) drywall. Consult the
dimensions page and plan your installation prior to framing the opening.
Version Width (x) Height (y)
12” Glass
Height (y)
20” Glass
Height (y)
30” Glass
Height (y)
36” Glass
78” Left Side 79.5” (2020mm)
50.625”
(1286mm)
58.625”
(1490mm)
68.625”
(1744mm)
74.625”
(1896mm)
90” Left Side 91.5” (2325mm)
102” Left Side 103.5” (2629mm)
114” Left Side 115.5” (2934mm)
126” Left Side 127.5” (3239mm)
20"
508mm
Max. 5.25"
134mm
x
y
3" (77mm) Maximum for vent clearance. Do not place
vertical framing directly in the center above the fireplace - it
will infringe upon the vent clearance requirements.
