26 Installation (for qualified installers only)
© Travis Industries 4150126 100-01418

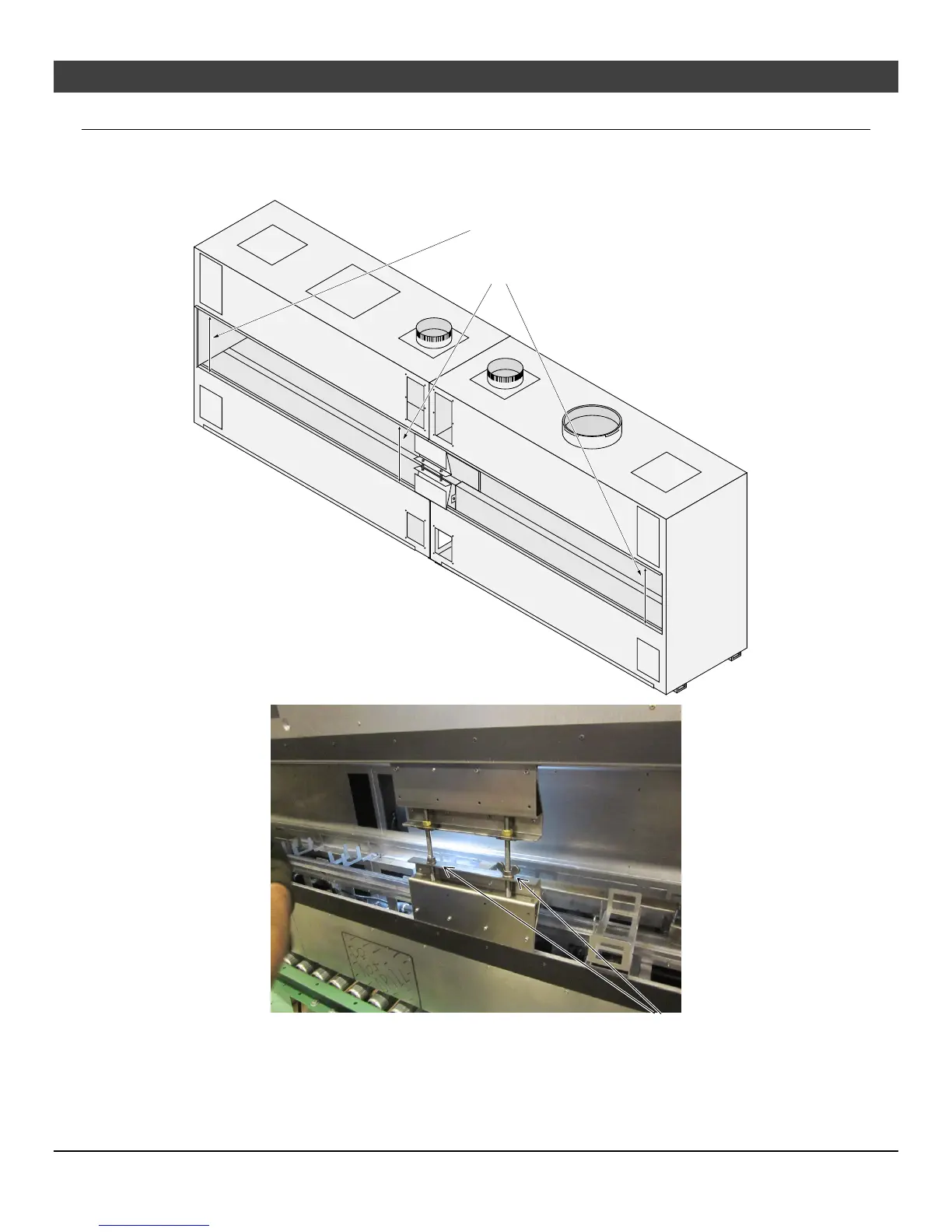

Place Installation Alignment Tool in Center of Glass Opening and Adjust
The installation alignment tool is used to align the two fireplace modules so the glass opening is uniform
in height. Single-Sided, Bay, and Side fireplaces use one alignment tool. Double-Sided, Pier, and Island
fireplaces use two alignment tools.
To align the glass opening, place the alignment tool between the two modules. Use the wing nuts to
expand the support until it is tight. Measure the glass opening height on one side. Then measure where
the two modules come together. This height should be identical. Use the wing nuts to expand the
support as needed until the glass opening height is uniform. Do not remove the alignment tool until the
Titan Lock connectors are fully tightened (see next page).
Make sure the glass opening is the same
height on both sides and middle. Use
the injstallation alignment tool to adjust
the height in the middle.
To Next Page
