Air intake Installation – Horizontal with Termination
6” Version 98900093
8” Version 98900094

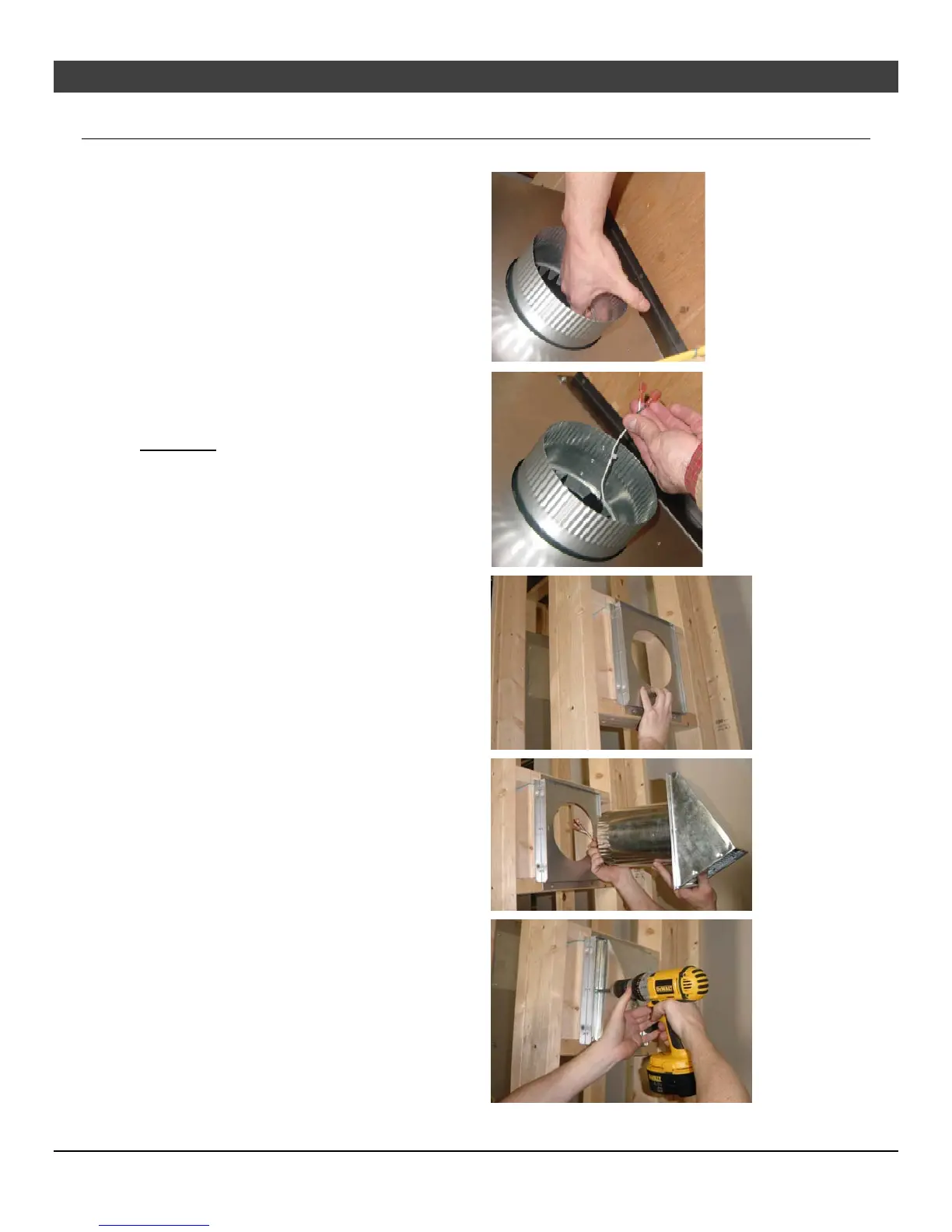

After removing the inner and outer cover plates,
install the starter collar. Bend the tabs down to
secure it.
Locate the intake damper wires and make sure
they are accessible before proceeding.
WARNING:
DO NOT CONNECT THESE WIRES
TOGETHER (THIS WILL SHORT THE
SYSTEM).
The intake damper requires a framed opening
that is 8” (203mm) wide by 9” (229mm) tall.
Secure the intake damper plate to the framing.
Slide the intake damper into place.
Secure the intake damper to the intake damper
plate.
