Installation (for qualified installers only) 59
© Travis Industries 4150126 100-01418
Approved Vent Configurations
Maximum Vent Run and Rise
The fireplace vent must meet the following requirements (measured from base of fireplace):
 Minimum Vent Length 3’ (1 M)
 Maximum Horizontal Run = 50’ (15 M)*
 Maximum Vertical Rise = 100’ (30 M)*
 Maximum Vertical Drop = 6’ (2 M)*
 Maximum 90˚ Elbows = 4 (note: two 45˚ elbows count as one 90˚ elbow)

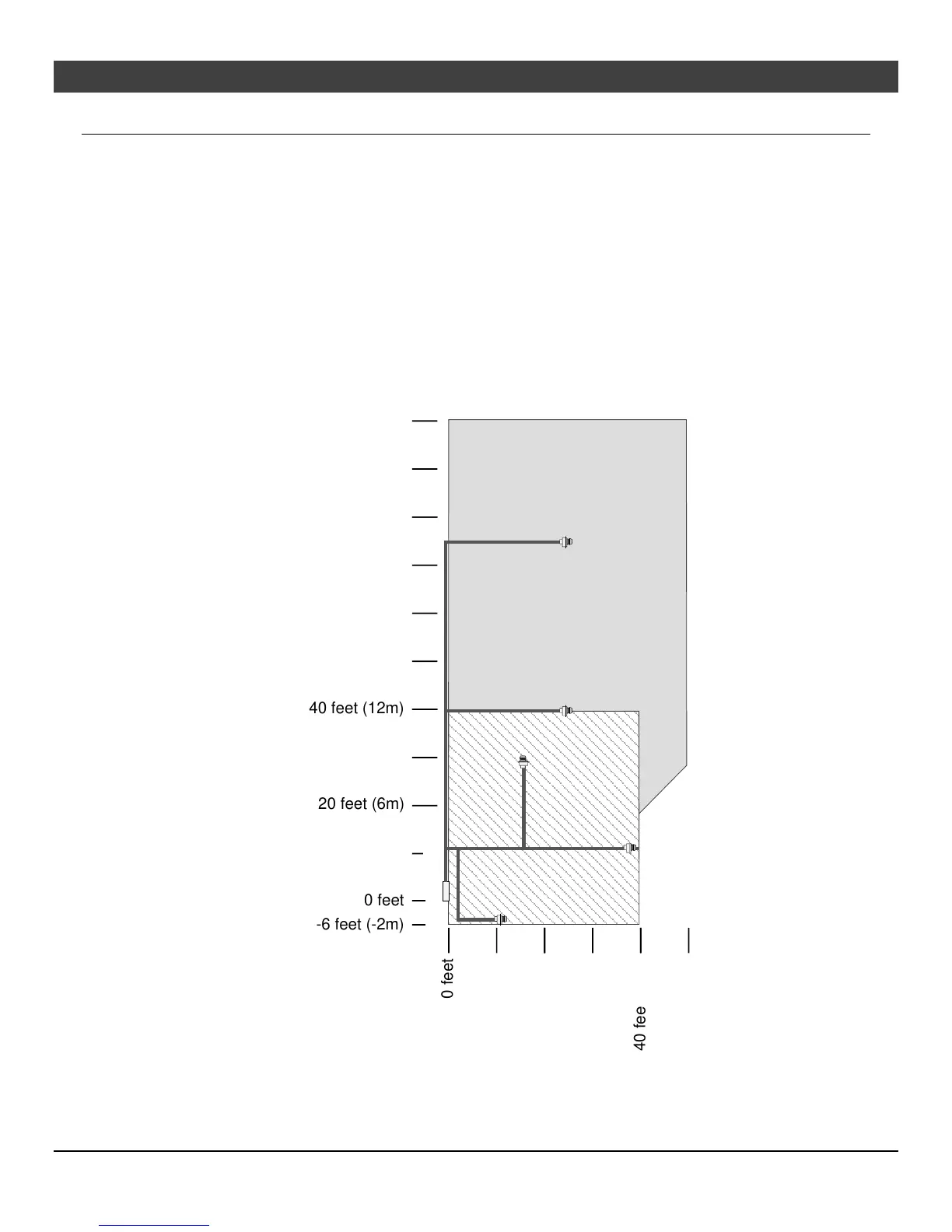

 The chart below details maximum vent height and length. If the termination falls within the
“Standard Installation” range shown below, the exhaust may be installed as detailed in this
manual. If the intake falls within the shaded range, you must contact Travis Industries to verify
the installation and determine the correct configuration (you may need to up-size the vent
diameter or use a larger exhaust blower).








0 feet
0 feet
40 feet (12m)
20 feet (6m)
-6 feet (-2m)
40 feet (12m)
20 feet (6m)
Contact Travis
Industries for Details
Standard
Installation
50 feet (15m)
60 feet (18m)
80 feet (24m)
100 feet (30m)
