34 Installation (for qualified installers only)
© Travis Industries 4150126 100-01418

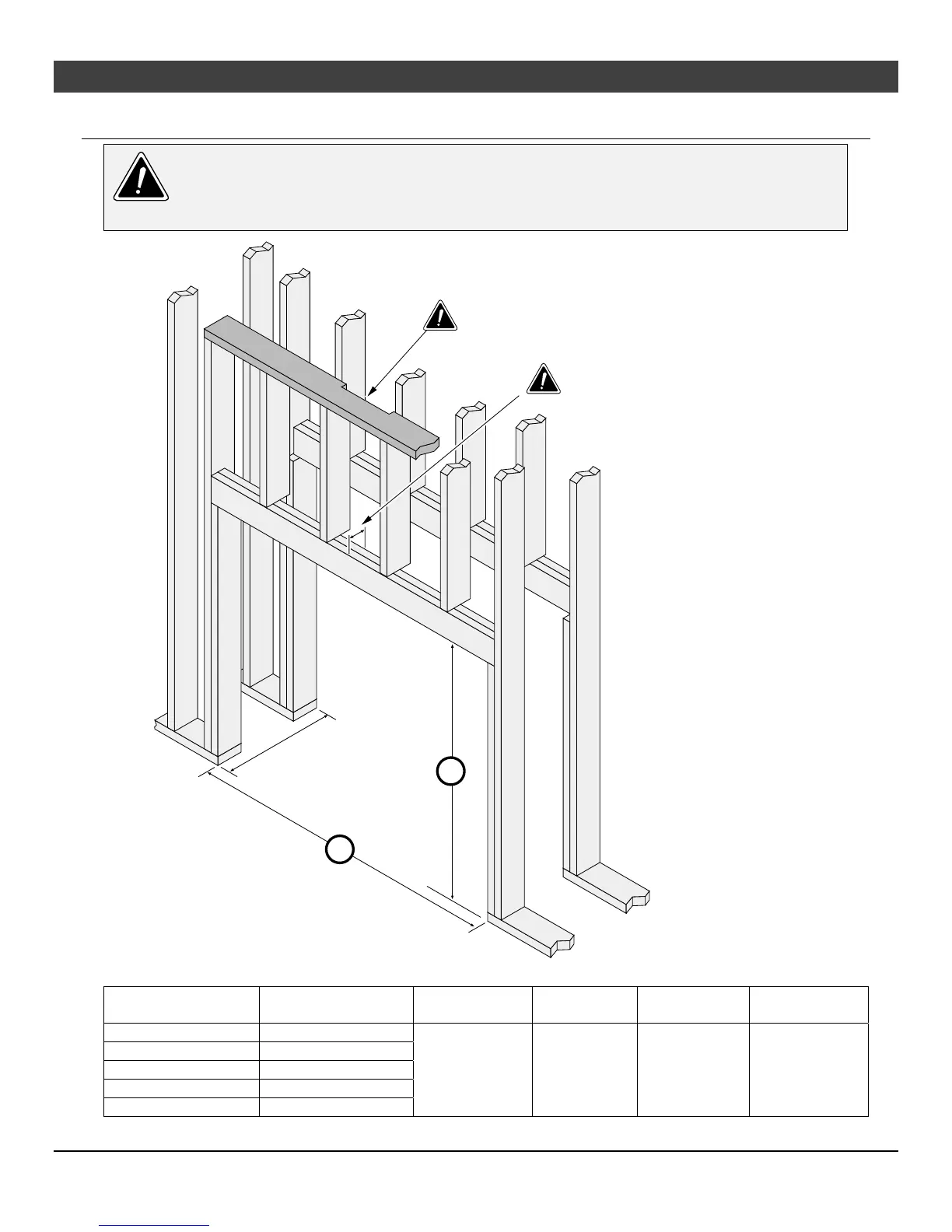

Typical Framing Dims. – See Through Configuration
Important Notes Regarding Framing
We strongly suggest framing around the fireplace after it is in place. If you do frame before
fireplace placement, add 6” to each side to allow for fireplace assembly. Dimension “x”
shown in the table below includes the extra 6” to each side.
Version Width (x) Height (y)
12” Glass
Height (y)
20” Glass
Height (y)
30” Glass
Height (y)
36” Glass
72” See Through 86” (2185mm)
50.625”
(1286mm)
58.625”
(1490mm)
68.625”
(1744mm)
74.625”
(1896mm)
84” See Through 98” (2490mm)
96” See Through 110” (2794mm)
108” See Through 122” (3099mm)
120” See Through 134” (3404mm)
19.625"
499mm
When using a top plate, you may need to notch it at
the center to provide adequate vent clearance.
3" (77mm) Maximum for vent clearance.
Do not place vertical framing directly in the
center above the fireplace - it will infringe
upon the vent clearance requirements.
x
y
