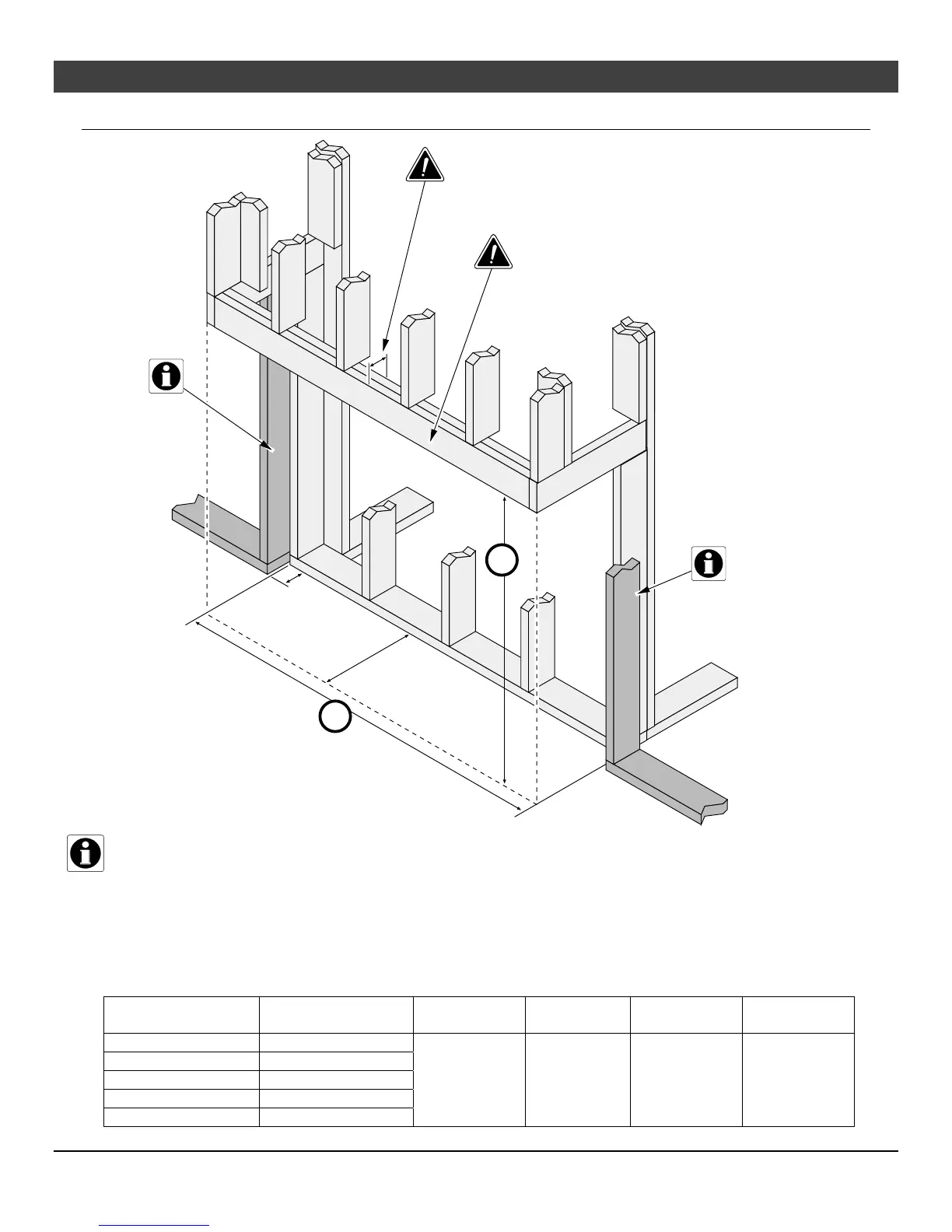

Typical Framing Dims. – Full Bay Configuration
Recessing the Back Edge of the Fireplace (Optional)
Installers may wish to recess the back of the fireplace to allow for a more shallow installation,
placing the side glass next to the side wall(s). If you decide to recess the back of the fireplace,
make sure to accommodate the framing and facing dimensions. The back edge of the glass
extends to a location 5.75” (147mm) from the back of the fireplace (see dimensions page for
details). Framing for this type of installation may protrude forward from the back wall of the
opening a maximum of 5.25” (134mm) when using ½” (13mm) drywall. Consult the dimensions
page and plan your installation prior to framing the opening.
Version Width (x) Height (y)
12” Glass
Height (y)
20” Glass
Height (y)
30” Glass
Height (y)
36” Glass
84” Full Bay 84.125” (2137mm)
50.625”
(1286mm)
58.625”
(1490mm)
68.625”
(1744mm)
74.625”
(1896mm)
96” Full Bay 96.125” (2442mm)
108” Full Bay 108.125” (2747mm)
120” Full Bay 120.125” (3052mm)
132” Full Bay 132.125” (3356mm)
Max. 5.25"
134mm
y
20"
508mm
x
The framing above the fireplace must be self-
supporting (the fireplace is not load-bearing).
3" (77mm) Maximum for vent clearance. Do not place
vertical framing directly in the center above the fireplace -
it will infringe upon the vent clearance requirements.
