14 Installation (for qualified installers only)
© Travis Industries 4150126 100-01418

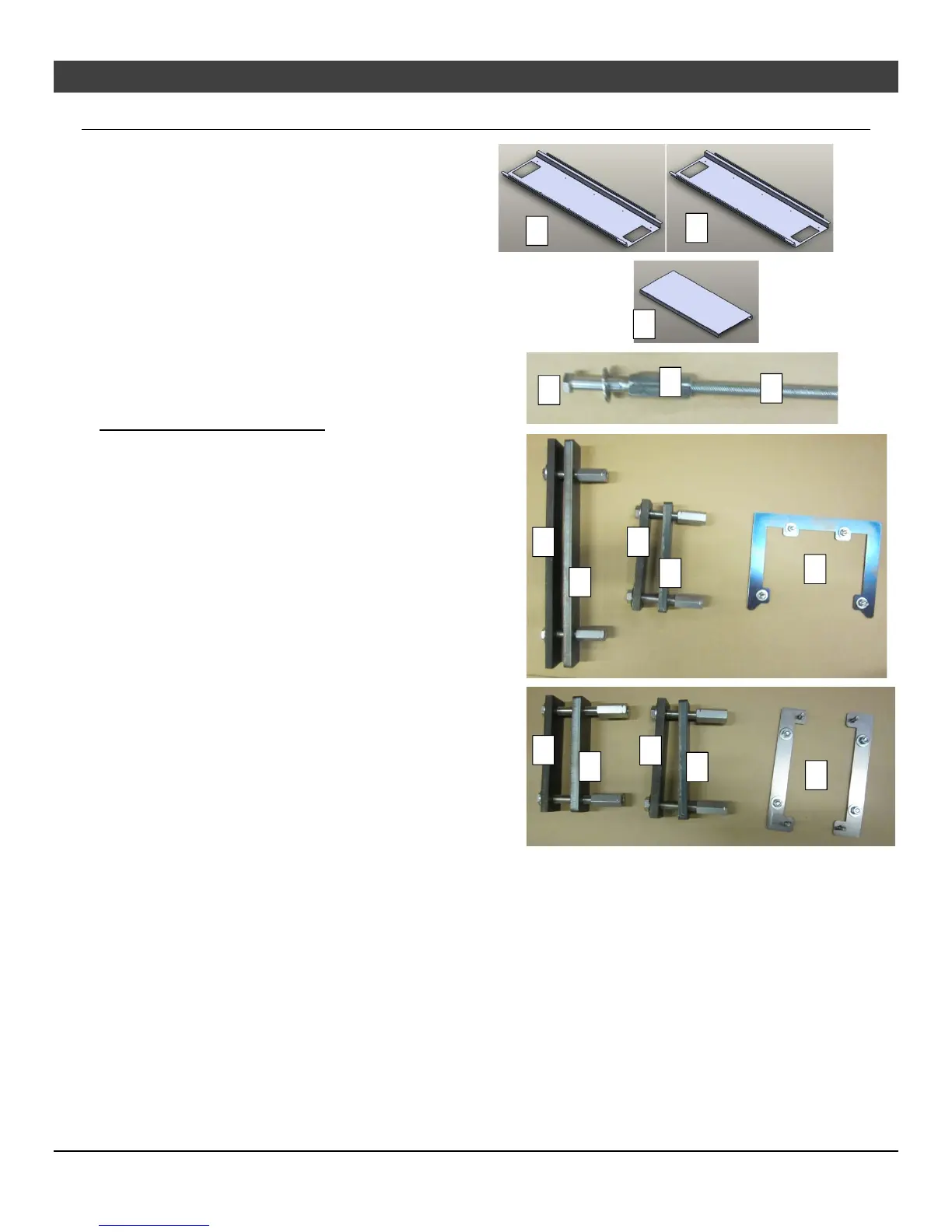

Category 2 Joining Components
Alignment Track Components
(2) Base Plates (matches length of module) (a)
(1) Base Connector (b)
(32) #8 Screws (8 for attaching base plates to base
connector, the remainder for attaching fireplace to
the alignment track)
Tension Rod Components
(See-through, island and pier fireplaces use
two rod assemblies. Single-sided, side, and
bay fireplaces use one rod assembly).
Each Rod Assembly Consists of:
(2) Threaded Rods (matches length of module) (c)
(3) 3/8-20 Coupler Nuts (d)
(2) 3/8-20 Bolts (e)
(2) Washers (e)
Titan Lock Components
UPPER FIREPLACE COMPONENTS
(1) Upper Center “U” Brace (f)
(4) 1/4-20 Nuts
(4) Washers
(2) Upper Outer Braces (threaded) 14”/6.75” Long* (g)
(2) Upper Outer Braces (smooth) 14”/6.75” Long* (h)
(4) 1/2-20 x 3.5” Bolts
(4) 1/2-20 Coupler Nuts
LOWER FIREPLACE COMPONENTS
(2) LOWER Center “U” Braces (i)
(4)1/4-20 Nuts
(4) Washers
(2) Lower Outer Braces (threaded) – 6.75” Long (j)
(2) Lower Outer Braces (smooth) – 6.75” Long (k)
(4) 1/2-20 x 3.5” Bolts
(4) 1/2-20 Nuts
* The upper outer braces vary for the type of fireplace. For See-Through, Island and Pier fireplaces, the
braces are identical (all are 14” Long). For Single-Sided, Side, and Bay fireplaces, the two front braces
are 14” long and the two back braces are 6.75”.
