DaVinci fireplace - Dimensions - Configurations

Features and Specifications 7
© Travis Industries 4150126 100-01418

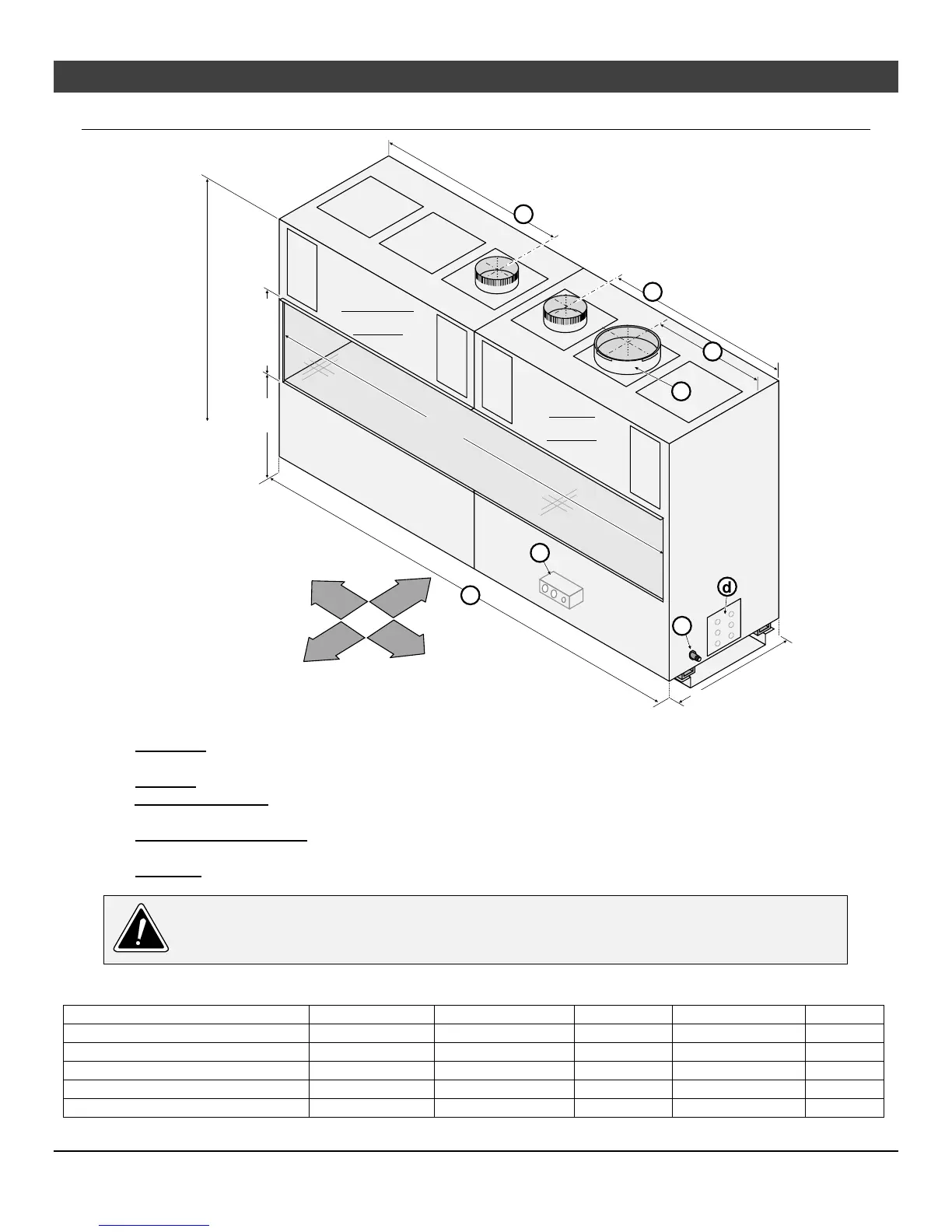

Dimensions – Single Sided or See Through Configurations
(a) Air intake – See table below for quantity - Location determined by fireplace length (see “Air Intake Duct
Location” on page 54 for details).
(b) Exhaust – Uses 10” or 8” Diameter B-Vent (determined by power exhaust type). Centered on fireplace.
(c) Gas Control Valve – Located to the front of the master module (the front of the fireplace is determined by gas
control valve location).
(d) Electrical Junction Box – On master module (location determined at time of order – can be relocated),
includes 120v input, exhaust vent power/harness, on-off LED harness.
(e) Gas Inlet – On master module (NOTE: the gas inlet is always located along the front edge, even if master
module is on the left side).
Important Notes Regarding Framing
We strongly suggest framing around the fireplace after it is in place. If you do frame before
fireplace placement, add 6” to each side (12” total) to allow for fireplace assembly.
Horizontal Dimensions & Specifications
Version Width (x) Exhaust Loc. (y) Air Intakes Power Exhaust BTUs
72” Single Sided / See Through 74” (1880mm) 19” (483mm) 2 Low Volume 87,000
84” Single Sided / See Through 86” (2185mm) 25” (635mm) 3 High Volume 101,500
96” Single Sided / See Through 98” (2490mm) 25” (635mm) 3 High Volume 116,000
108” Single Sided / See Through 110” (2794mm) 31” (788mm) 3 ST, 4 Sin High Volume 130,500
120” Single Sided / See Through 122” (3099mm) 31” (788mm) 3 ST, 4 Sin High Volume 145,000
Front
avant
Right
droit
Rear
arrie're
Left
a' gauche
x

d
a
y
b
a
Master
Module
Secondary
Module
c
e
Version
Length
12.5"
318mm
20" 508mm (Single)
19.75" 502mm (See-Through)
12" Glass
42.625" (1083mm)
20" Glass
50.625" (1286mm)
30" Glass
60.625"
(1540mm)
36" Glass
66.625 (1693mm)
12" (305mm)
20" (508mm)
30" (762mm)
36" (915mm)
