DaVinci fireplace - Typical Framing Dims. - One Sided Configuration

Installation (for qualified installers only) 33
© Travis Industries 4150126 100-01418

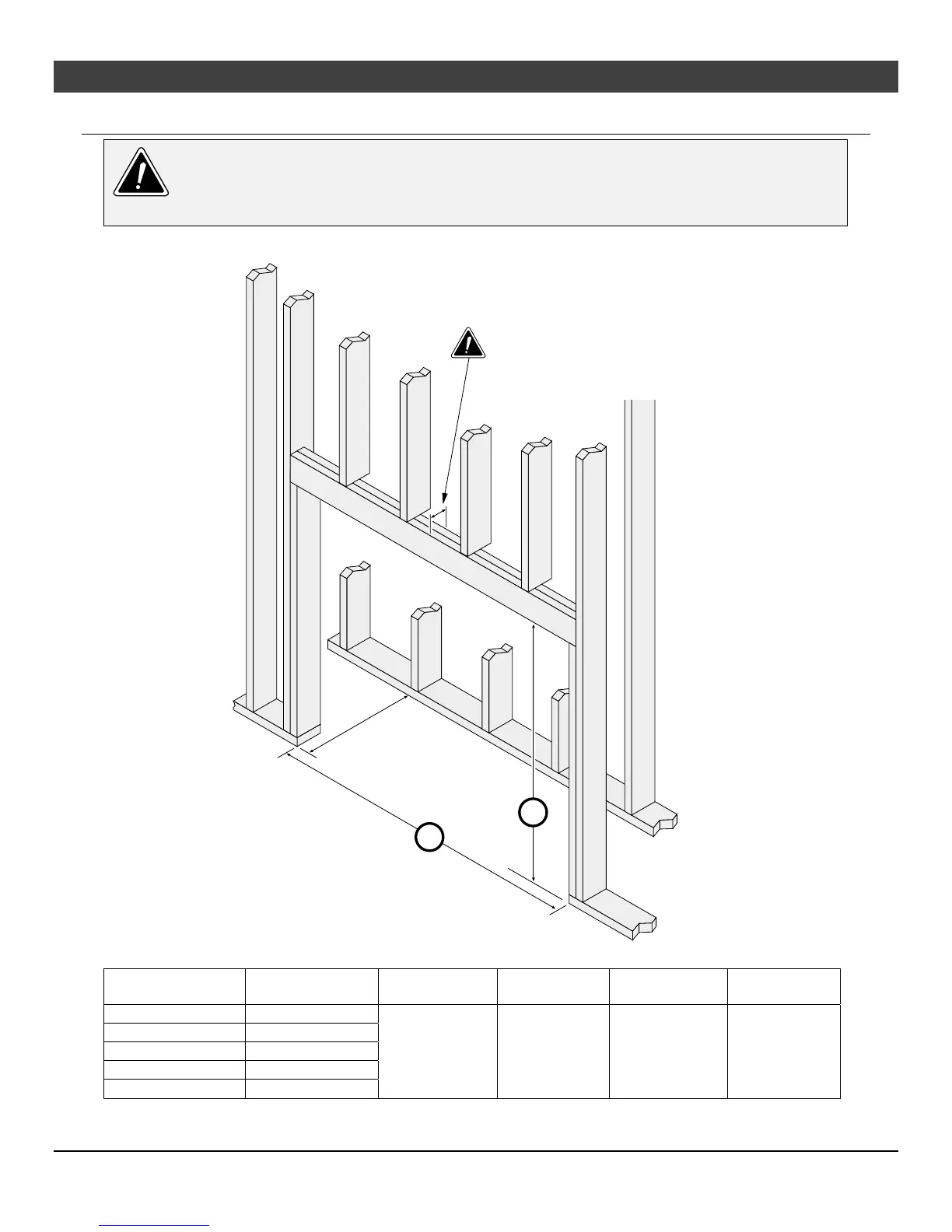

Typical Framing Dims. – One Sided Configuration
Important Notes Regarding Framing
We strongly suggest framing around the fireplace after it is in place. If you do frame before
fireplace placement, add 6” to each side to allow for fireplace assembly. Dimension “x”
shown in the table below includes the extra 6” to each side.
Version Width (x) Height (y)
12” Glass
Height (y)
20” Glass
Height (y)
30” Glass
Height (y)
36” Glass
72” Single Sided 86” (2185mm)
50.625”
(1286mm)
58.625”
(1490mm)
68.625”
(1744mm)
74.625”
(1896mm)
84” Single Sided 98” (2490mm)
96” Single Sided 110” (2794mm)
108” Single Sided 122” (3099mm)
120” Single Sided 134” (3404mm)
20"
508mm
x
y
3" (77mm) Maximum for vent clearance.
Do not place vertical framing directly in the
center above the fireplace - it will infringe
upon the vent clearance requirements.
