Installation (for qualified installers only) 47
© Travis Industries 4150126 100-01418
Connecting the Power Exhaust Lead to the Fireplace
The power exhaust is wired to the 120v line exiting the exhaust blower rheostat. Connect a minimum
12 gauge sheathed three-wire electrical line to the power exhaust lead (included loose with fireplace)

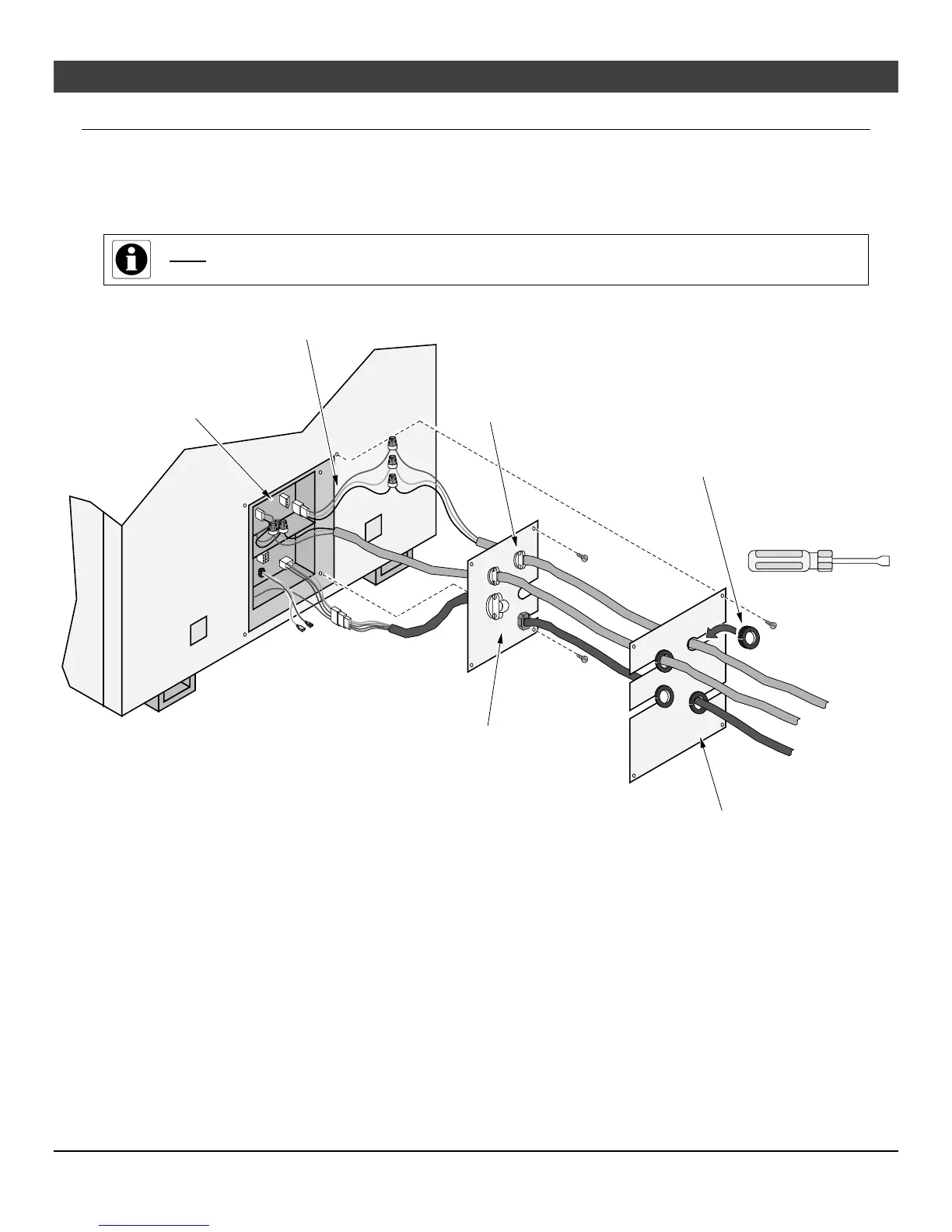

and connect it to the molex connector on the fireplace – see illustration below. This wire is routed to
the power exhaust assembly (see “Wiring the Power Exhaust Assembly” for details)..
HINT: Keep the cover plates disconnected until all wiring to the fireplace is attached. You may also
wish to leave the romex clamps loose until the cover plates are ready to be attached.
Power Exhaust Lead
Power Exhaust
Power Out
Inner Cover Plate
Grommet
(remove to install wire)
Outer Cover Plate
Romex Clamp
1/4" Nutdriver
