Installation (for qualified installers only) 31
© Travis Industries 4150126 100-01418

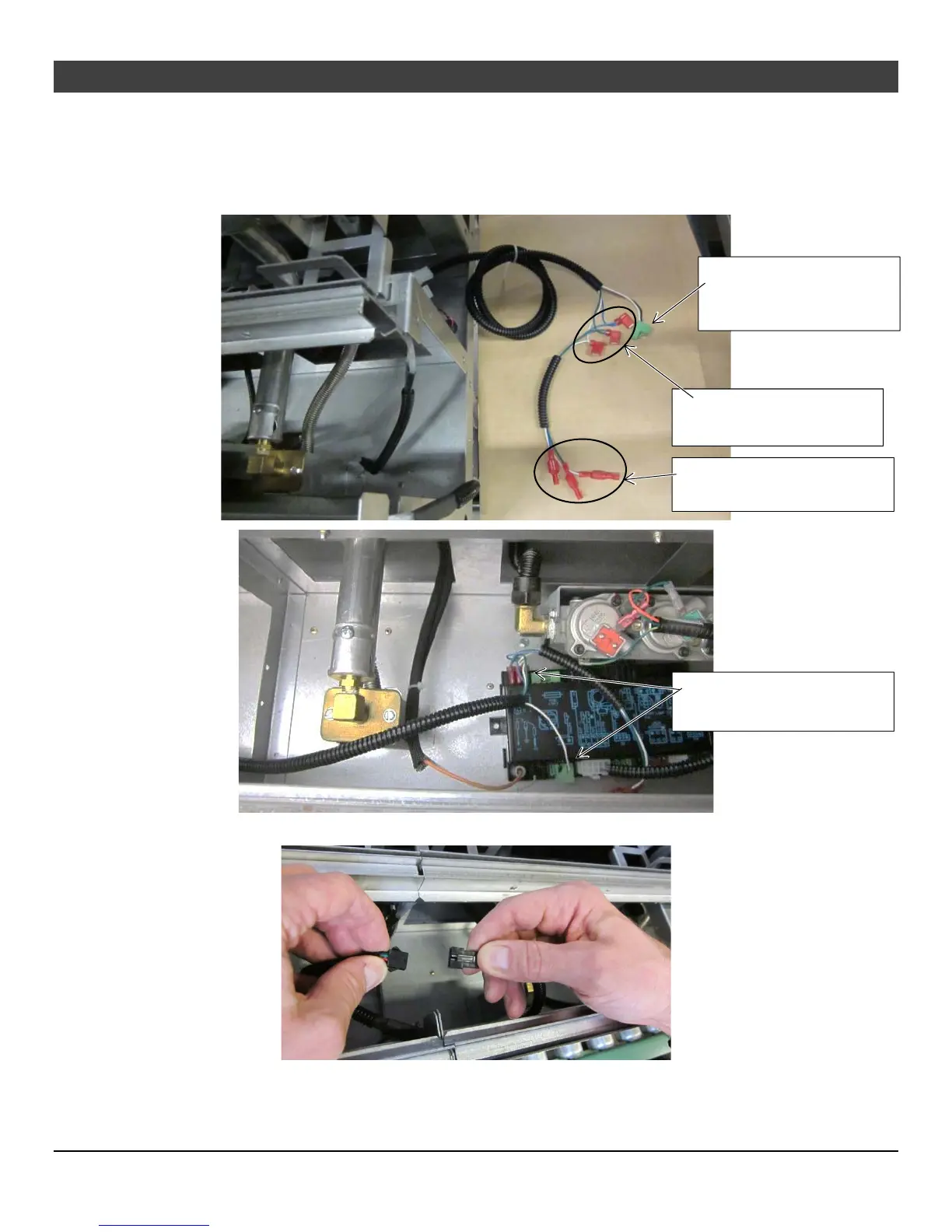

Fireplace Module Jumper Wires
Route the 5-wire jumper from the master module to the IFC on the secondary module (see photo
below to the left). The green/white/blue wires attach to the power input on the IFC (green to
ground, white to neutral “N”, blue to line “L” – see photo below to the right). Attach the green
“phoenix” connector (black and white wire) to the on/off system connector.
Attach the LED connectors between sections (see photo below).
On/Off System Connector
(black & white wire with
green connector)
Power connectors
(Green, White Blue Wires)
These connectors are for
other jumpers (Category 3).
The jumper attaches to the
gas control valve.
To Next Page
