70 Installation (for qualified installers only)
© Travis Industries 4150126 100-01418

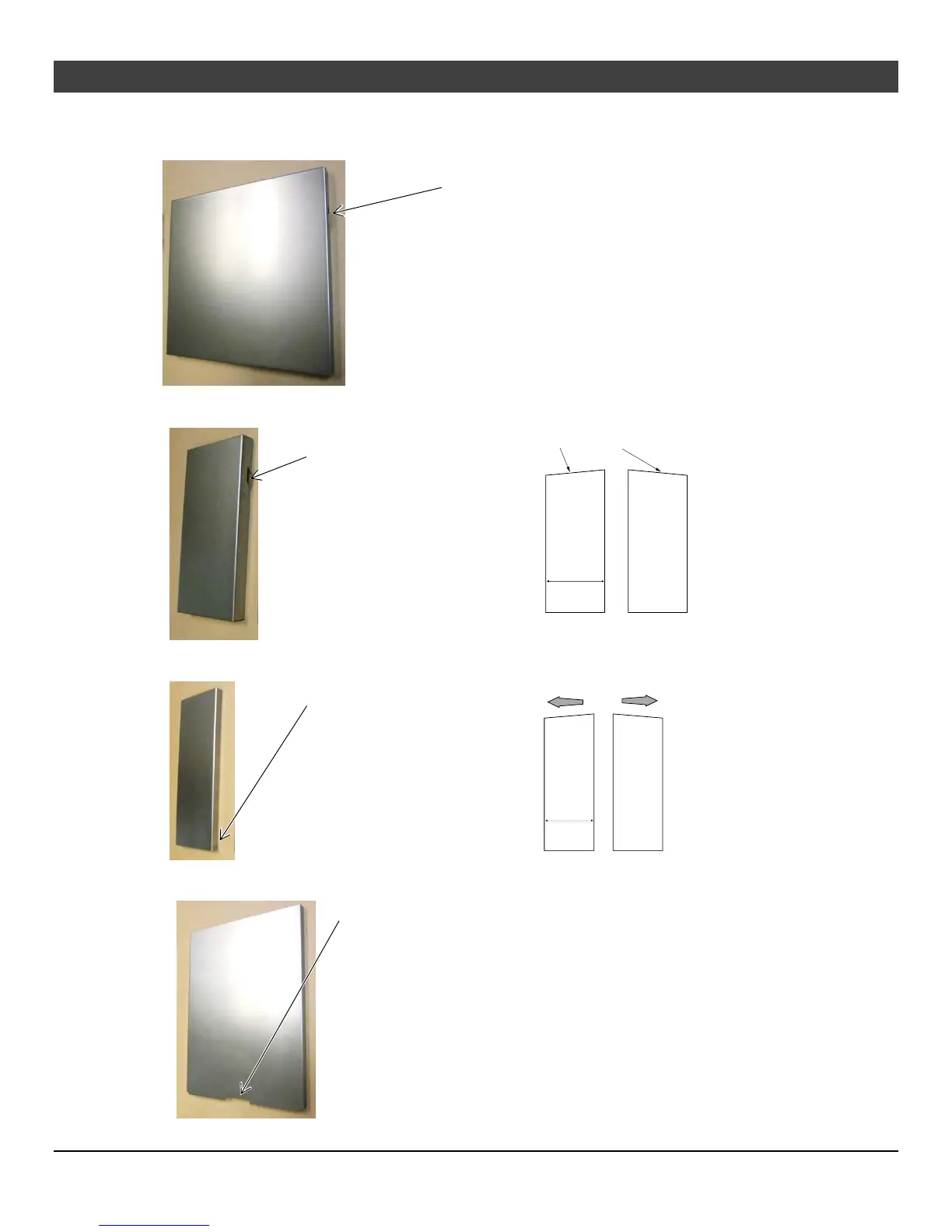

Identifying the Firebacks
12” Fireback
This notch fits over the ledge at the back of the
firebox.
Bay Fireback
This notch fits over the ledge
at the back of the firebox.
End Fireback
The end fireback has a hole
on the bottom.
The end firebacks are side
specific (each side is not
interchangeable). Make sure
to place the end fireback with
the slope facing outward (see
illustration to the right).
Divider Fireback
The divider fireback has a notch on the bottom.
Left Side
Bay Fireback
Right Side
Bay Fireback
Note how the top angles
downwards to the outside.
5.5" Wide
Left End
Fireback
Right End
Fireback
4.25" Wide
Front of Fireplace
Front of Fireplace
