Section 7
DriveRack
™
Hardware
Note Make sure that all outputs are muted on the DriveRack™ prior to adding power to any
devices in the signal path (pre and post DriveRack™).
1. Connect the outputs from the mixer to the inputs of the DriveRack™.
2. Connect the outputs of the DriveRack™ and run to the selected speaker amplifier.
3. Making sure that all outputs are muted, apply power to the mixer and amplifiers.
Software
1. From Program mode, select factory program #23 (Mono LCR w/Sub) as a template.
2. Once the program has been chosen, press the PROGRAM/CONFIG button to load the pro-
gram.
3. Please see sections 3 and 4 (configuring and detailed parameter) for more information on
setting up and editing crossover points.
Notes: This configuration can be easily be edited to function in a LCR w/Surround rear appli-
cation by changing the sub lowpass filter to a full range band pass and adjusting the
Low Rolloff of the Left and Right outputs.

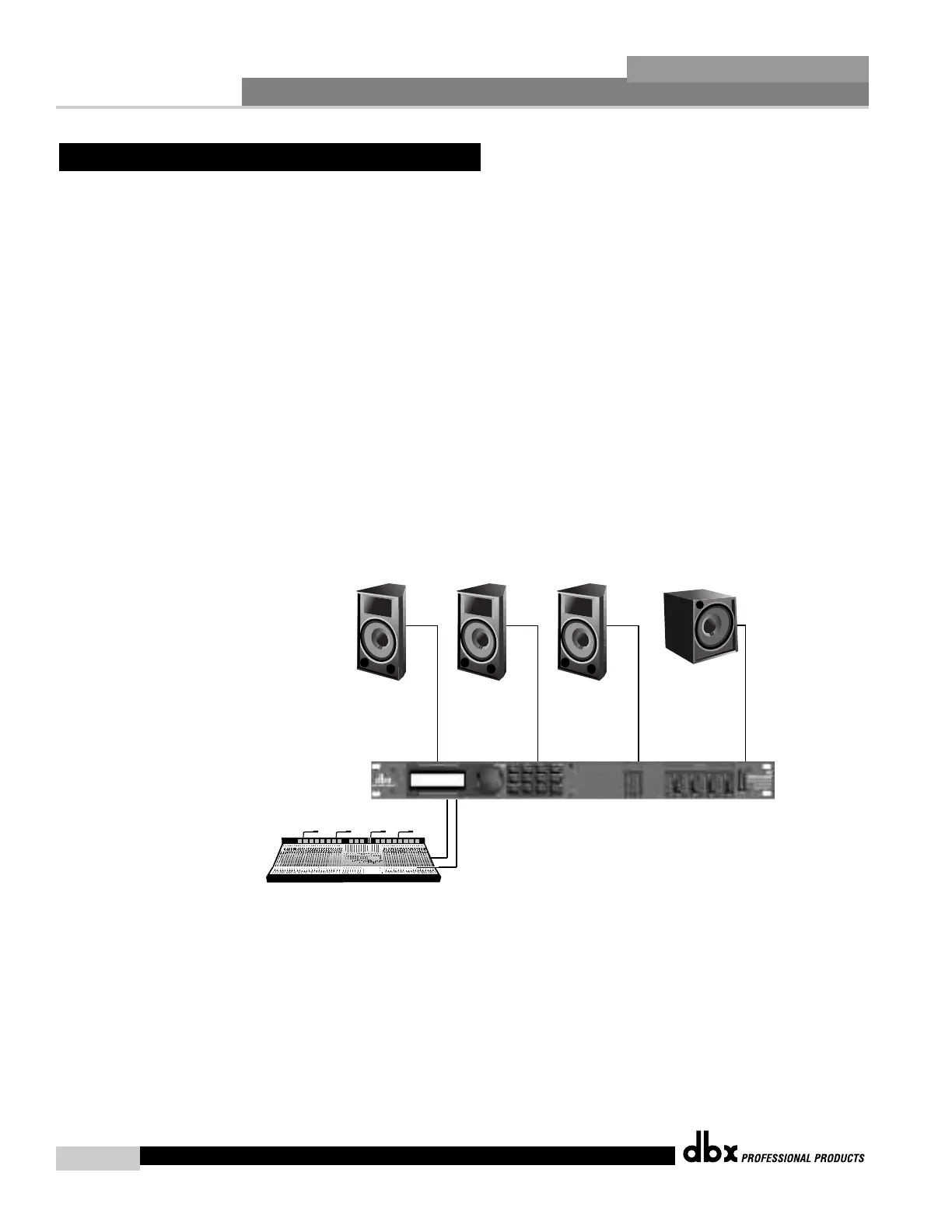

7.3 L-C-R w/Sub
