Hardware
Note Make sure that all outputs are muted on the DriveRack™ prior to adding power to any
devices in the signal path (pre and post DriveRack™).
1. Connect the outputs from the mixer to the inputs of the DriveRack™.
2. Connect the outputs of the DriveRack™ and run to the selected speaker amplifier.
3. Making sure that all outputs are muted, apply power to the mixer and amplifiers.
4. Make connections from switch closure output on the 240/241 to the wall-mount control
switches (optional).
Software
1. Select a program that uses a 1X4 (with filters) crossover configuration.
2. Store three separate copies of this preset, with names such as Zone 1-4.
3. Adust the EQ, Time alignment delay, and limiter for each preset Zone.
Note: Speakers near the stage can be EQ’d differently to eliminate feedback. Speakers locat-
ed in the Hall can use a flatter EQ with a time delay.

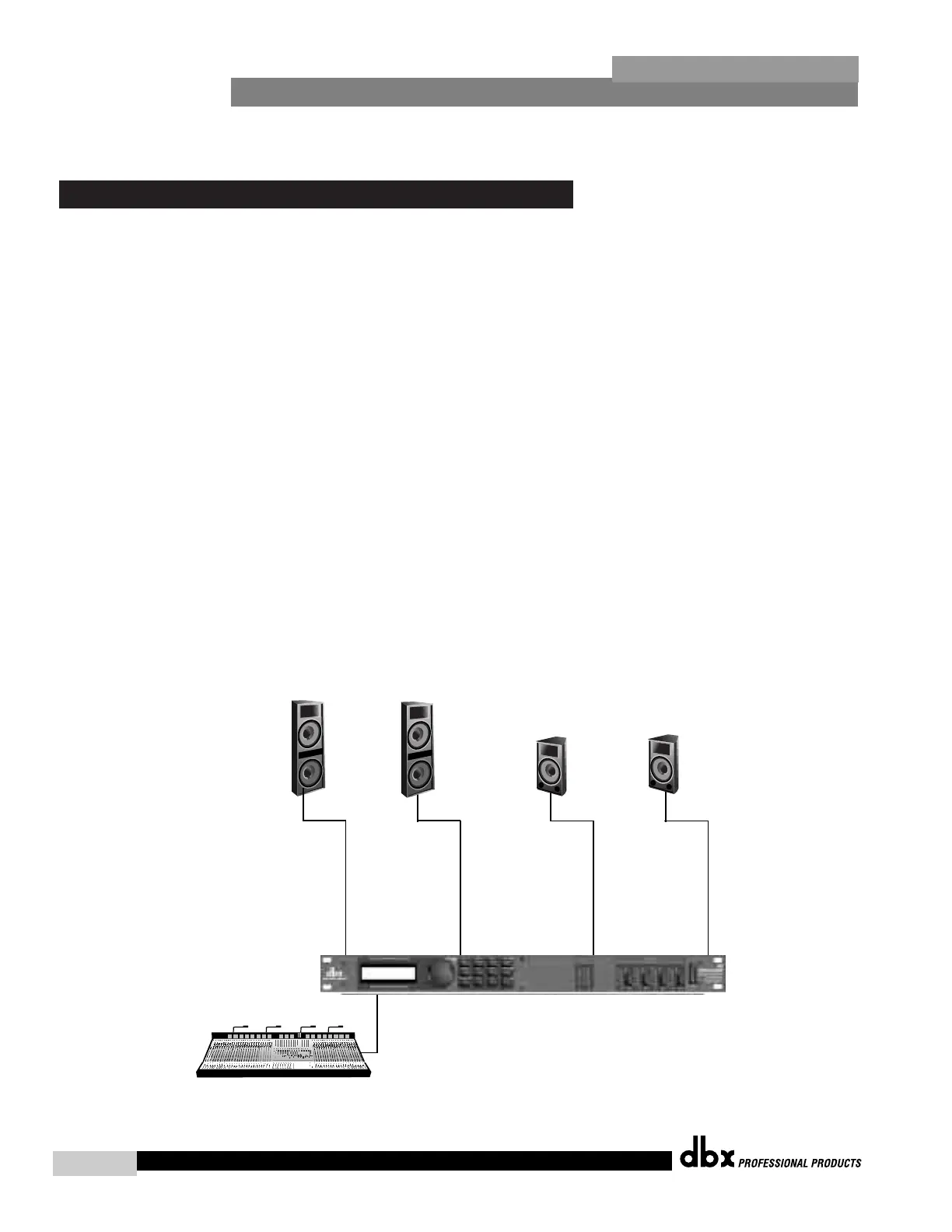

7.7 - Single Room Multi-Zone
Zone
1
Zone
2
