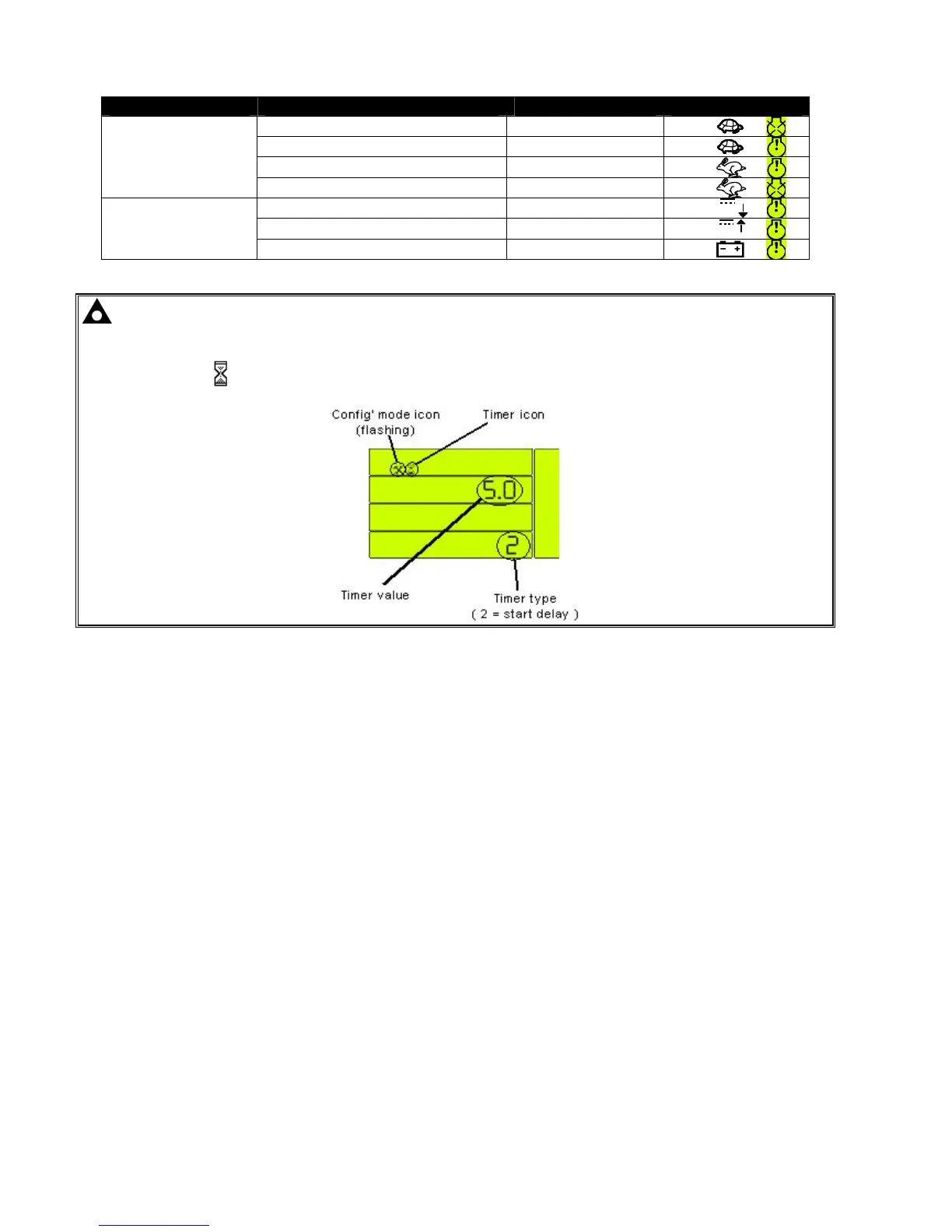

Front panel configurable items continued:
Config’ Section Parameter Type Icons displayed
Engine speed
Under Speed (RPM) Trip
Under Speed (RPM) Pre Alarm
Over Speed (RPM) Pre Alarm
Over Speed (RPM) Trip
DC Voltages
Low DC Voltage Warning
V
High DC Voltage Warning
V
Charge Alternator Failure Warning
NOTE:- The timers are numbered to enable them to be identified when in configuration mode. Some
numbers are reserved so do not appear in the list.
In the following example timer number 2 (‘Start delay’ from the above list) is currently set to 5.0 seconds.
Ie the ‘hour glass’ indicates that it is a timer being displayed. The ‘2’ indicates that it is timer number 2
(Start delay). The current setting is 5.0 (seconds).
5210 OPERATING MANUAL ISSUE 2 21/05/2003 AM 24
