DSE Model 5210 Automatic Start Engine Management and Instrumentation System Operators Manual

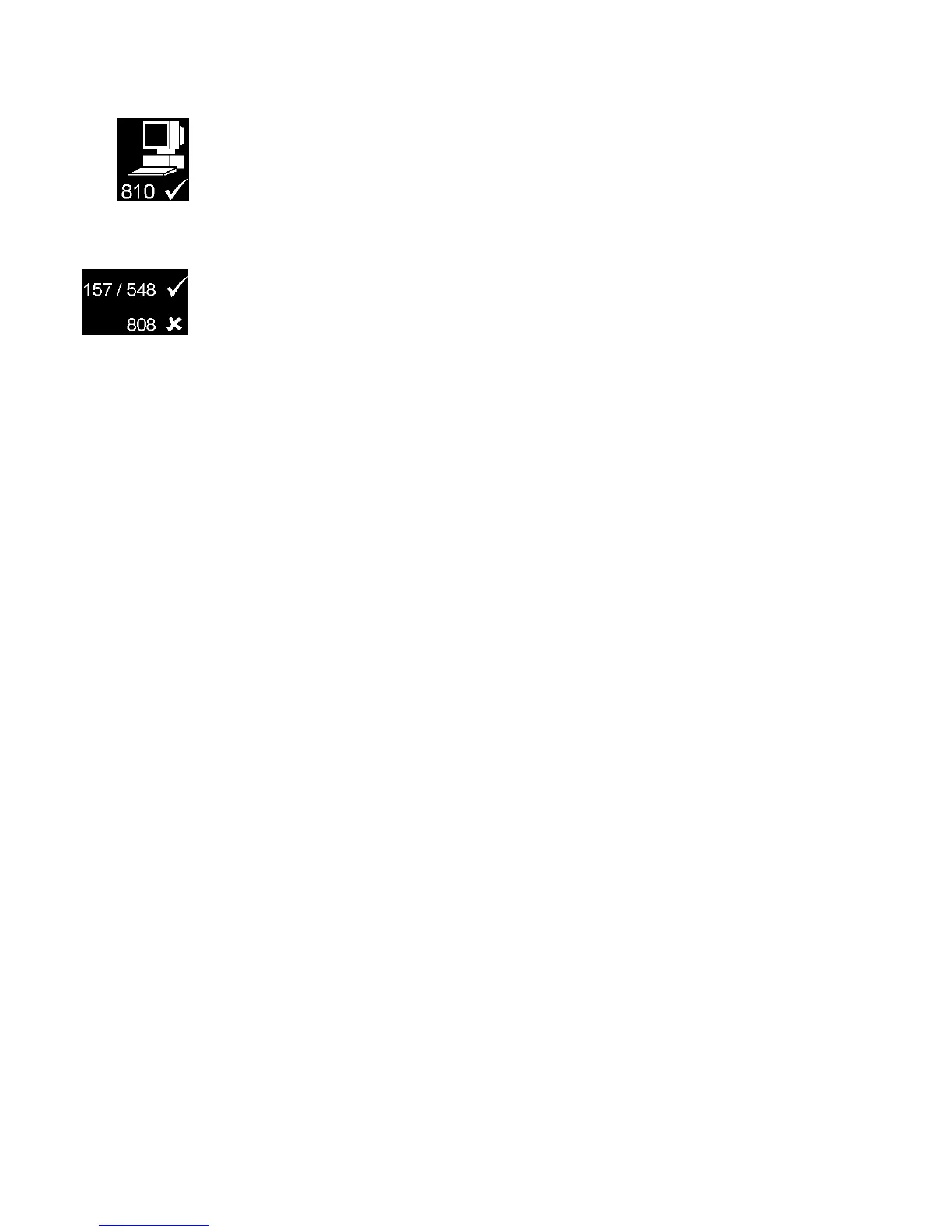

8.1.8 PC CONFIGURATION INTERFACE CONNECTOR
8-way connector allows connection to PC via the 810 configuration interface.
Module can then be re-configured utilising the 5200 series configuration
software.
8.1.9 EXPANSION OUTPUT CONNECTOR
The expansion connector allows connection to the 157 relay expansion module
or to the 548 LED Remote annunciator module.
5210 OPERATING MANUAL ISSUE 2 21/05/2003 AM
