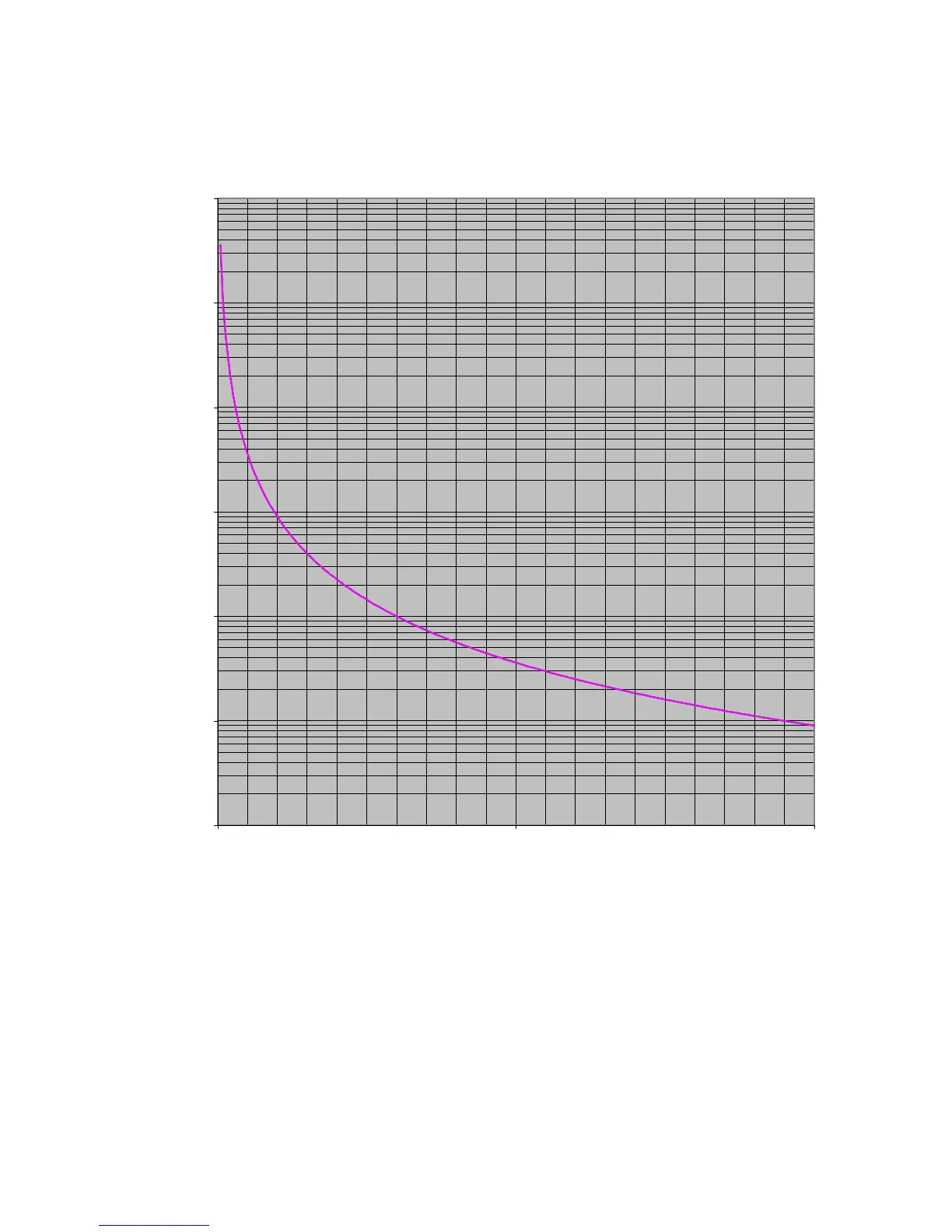

15.2 5210 IDMT TRIPPING CURVES (TYPICAL)
5210 Delayed over-current protection
1
10
100
1000
10000
100000
1000000
12
Current as a multiple of the trip-point setting (tripping curve = 36)
Tripping time in seconds
