DSE Model 5210 Automatic Start Engine Management and Instrumentation System Operators Manual
15.5 5200 SERIES CONFIGURATION SOFTWARE AND P810 INTERFACE MODULE
The 5210 module can be configured using PC with Interface Module 810 and 52xx series PC configuration
software.
The 5200 series configuration software kit comprises the following:-
• 810 Interface Module
• 25 to 9 way adapter
• RJ45 (8 Pin) Connecting Lead
• DSE SoftwareCD with configuration software
15.6 OUTPUT EXPANSION
There are several methods of output expansion available for the 5210 module:-
15.6.1 RELAY OUTPUT EXPANSION (157)

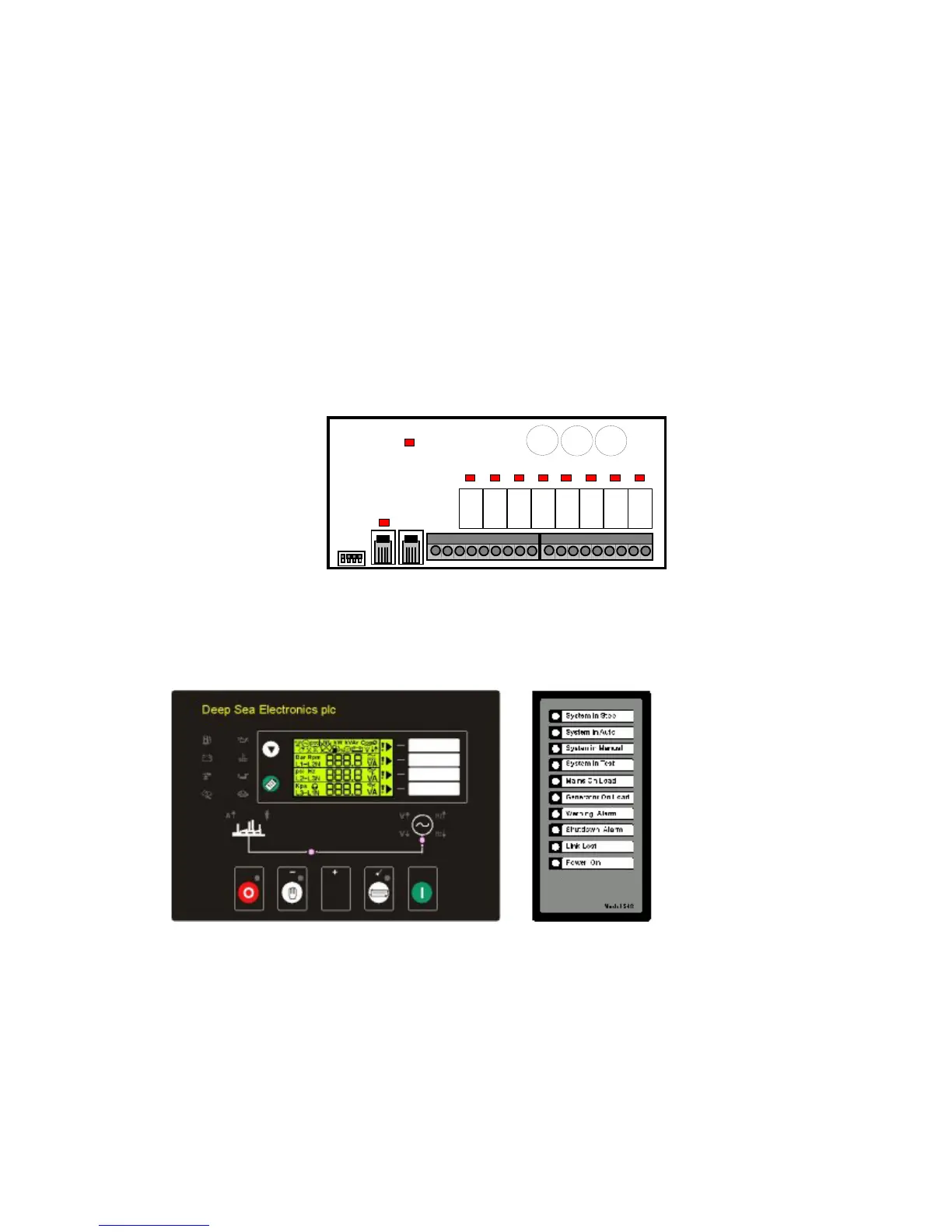

An expansion module is available, which connects to the configuration socket, and enables the 5210 to use eight
additional relays, providing Volt-free contacts for customer connection.
LINK LOST LED
POWER ON LED
RELAY ACTIVE LED'S
FUNCTION
SELECTOR
Refer to technical data sheet on the 157 relay module for further details.
15.6.2 LED OUTPUT EXPANSION (548)
An expansion module is available, which connects to the configuration socket, and enables the 5210 to use eight
additional LED’s, providing remote LED indication up to 50 metres away.
Refer to technical data sheet on the 548 LED module for further details.
It is possible to use a mix of 157 and 548 modules to give both relay and LED expansion of the same 8 items if
required (Please refer to our Technical Support department for details.).
